HANDLE LEVER SWITCH CABLE MIRROR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

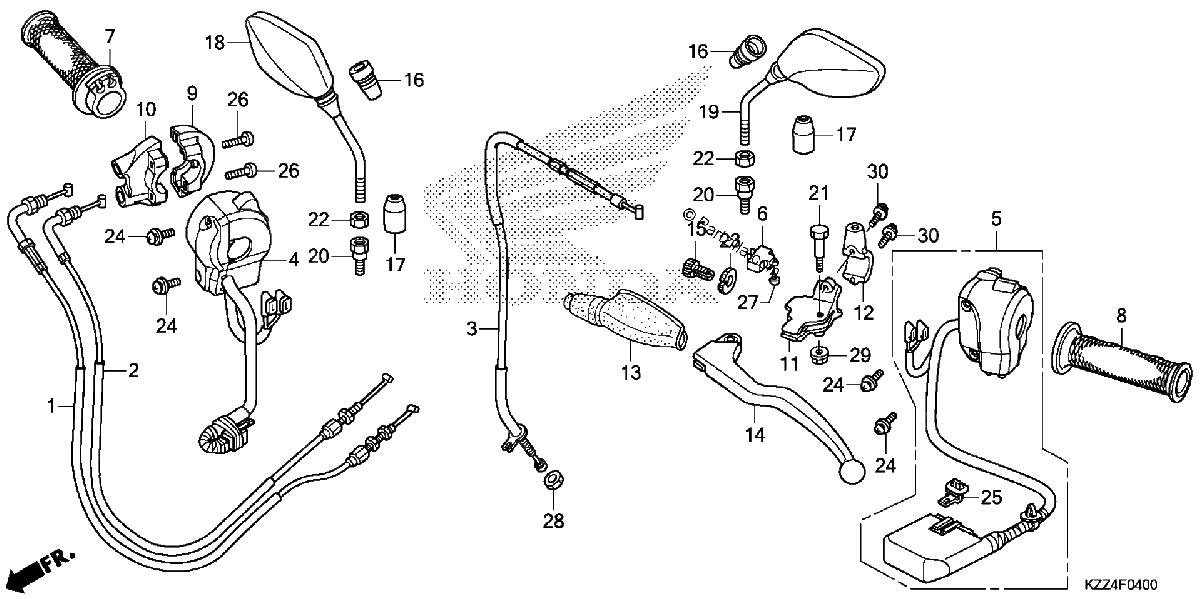

Diagrama de HANDLE LEVER SWITCH CABLE MIRROR

Repuestos

#1
17910-KZZ-900
CABLE A, THROTTLE
$15.32¢7 663
1
#2
17920-KZZ-900
CABLE B, THROTTLE
$14.51¢7 256
1
#3
22870-KZZ-900
CABLE, CLUTCH
$18.01¢9 006
1
#4
35130-KZZ-901
SWITCH ASSY., ENGINE STOP
$114.01¢57 006
1
#5
35200-KZZ-911
SWITCH ASSY., TURN SIGNAL
$50.82¢25 412
1
#6
35330-MK5-003
SWITCH ASSY., CLUTCH
$20.78¢10 388
1
#7
53140-KZZ-305
GRIP, THROTTLE (COO)
$9.61¢4 806
1
#8
53150-KZZ-305
GRIP, L. HANDLE (COO)
$9.90¢4 950
1
#9
53167-MGS-D30
HOUSING, THROTTLE (UPPER) (Rear.)
$19.57¢9 788
1
#10
53168-MGS-D30
HOUSING, THROTTLE (LOWER) (Front.)
$20.86¢10 431
1
#11
53172-KZZ-900
BRACKET, L. HANDLE LEVER
$16.79¢8 394
1
#12
53174-KZZ-900
HOLDER, L. LEVER BRACKET
$18.25¢9 125
1
#13
53177-KZZ-900
COVER, L. HANDLE LEVER
$3.65¢1 825
1
#14
53178-KZZ-305
LEVER, L. HANDLE (COO)
$13.86¢6 931
1
#15
53192-268-000
BOLT, WIRE ADJUSTING
$7.92¢3 963
1
#16
88114-KWN-900
BOOT, MIRROR
$2.19¢1 094
1
#17
88115-KWN-900
CAP, LOCK NUT
$2.07¢1 037
1
#18
88210-KWN-305
MIRROR, R. (COO)
$24.51¢12 256
1
#19
88220-KWN-305
MIRROR, L. (COO)
$24.51¢12 256
1
#20
90103-KZR-701
BOLT B, ADAPTER (10MM)
$1.68¢838
1
#21
90113-HA0-770
BOLT, HANDLE LEVER PIVOT
$4.44¢2 219
1
#22
90302-KZR-701
NUT, HEX. (10MM) (LEFT HAND THREAD)
$1.16¢581
1
#23
90321-315-670
NUT, FIXING
$8.86¢4 431
1
#24
90508-KZZ-900
SCREW-WASHER (5X16)
$1.82¢913
1
#25
91533-S04-003
CLIP, CONNECTOR (NATURAL)
$5.02¢2 512
1
#26
93500-05022-0G
SCREW, PAN (5X22)
$1.19¢594
1
#27
93901-32320
SCREW, TAPPING (3X12)
$1.11¢556
1
#28
94002-08000-0S
NUT, HEX. (8MM)
$1.60¢800
1
#29
94050-06070
NUT, FLANGE (6MM)
$1.86¢931
1
#30
96001-06020-07
BOLT, FLANGE (6X20)
$1.74¢869
1
