EXHAUST MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

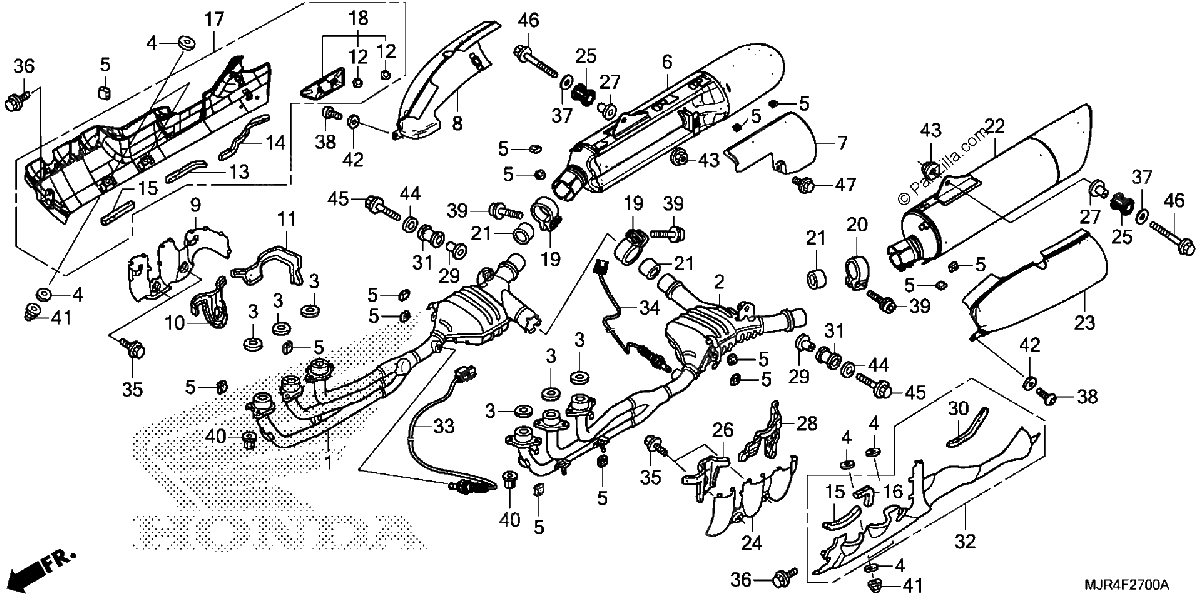

Diagrama de EXHAUST MUFFLER

Repuestos

#1
18150-MJR-671
PIPE, R. EX.
$1455.35¢727 675
1
#2
18250-MJR-671
PIPE, L. EX.
$1455.35¢727 675
1
#3
18291-MN5-650
GASKET, EX. PIPE
$4.58¢2 288
1
#4
18293-MCA-780
GASKET, PROTECTOR
$5.88¢2 938
1
#5
18293-MCA-A20
RUBBER, PROTECTOR GASKET
$2.64¢1 319
1
#6
18305-MJR-305
MUFFLER, R. (COO)
$1271.22¢635 613
1
#7
18313-MJR-671
PLATE, MUFFLER
$114.53¢57 263
1
#8
18317-MCA-A20
PROTECTOR, R. RR. EX. PIPE
$190.81¢95 406
1
#9
18318-MCA-000
PROTECTOR, R. FR. EX. PIPE (B)
$149.30¢74 650
1
#10
18321-MCA-000
RUBBER A, R. HEAT GUARD
$26.19¢13 094
1
#11
18323-MCA-000
RUBBER B, R. HEAT GUARD
$24.10¢12 050
1
#12
18326-KRN-A00
RIVET, BLIND (3.2)
$1.60¢800
1
#13
18329-MCA-A20
RUBBER C
$4.26¢2 131
1
#14
18332-MCA-A20
RUBBER D
$7.95¢3 975
1
#15
18333-MCA-000
PROTECTOR, HEAT
$6.05¢3 025
1
#16
18338-MCA-000
PROTECTOR, HEAT SUB
$4.97¢2 488
1
#17
18355-MJR-670ZA
PROTECTOR ASSY., R. EX. *NHA86M* (MAT BALLISTIC BLACK)
$271.25¢135 625
1
#18
18356-MJR-670ZA
PROTECTOR C SET, EX. PIPE *NHA86M* (MAT BALLISTIC BLACK)
$34.40¢17 200
1
#19
18376-MT3-000
BAND, R. MUFFLER
$35.76¢17 881
1
#20
18377-MT3-000
BAND, L. MUFFLER
$35.76¢17 881
1
#21
18392-MCA-S40
GASKET, MUFFLER (43MM)
$21.11¢10 556
1
#22
18400-MJR-305
MUFFLER ASSY., L. EX. (COO)
$1271.22¢635 613
1
#23
18417-MJR-671
PROTECTOR, L. RR. EX. PIPE
$222.21¢111 106
1
#24
18418-MCA-000
PROTECTOR, L. FR. EX. PIPE (B)
$149.30¢74 650
1
#25
18421-KV3-950
RUBBER, MUFFLER MOUNTING
$4.24¢2 119
1
#26
18421-MCA-000
RUBBER A, L HEAT GUARD
$26.19¢13 094
1
#27
18422-MA6-000
COLLAR, MUFFLER MOUNTING
$9.60¢4 800
1
#28
18423-MCA-000
RUBBER B, L. HEAT GUARD
$35.74¢17 869
1
#29
18424-MN5-000
COLLAR, CHAMBER MOUNTING
$9.99¢4 994
1
#30
18429-MCA-A20
RUBBER E
$7.95¢3 975
1
#31
18441-MCA-A20
RUBBER, EX. PIPE
$8.46¢4 231
1
#32
18455-MCA-A20ZB
PROTECTOR Assembly., L EX. NHA86M (MAT BALLISTIC BLACK)
$274.75¢137 375
1
#33
36531-MJR-671
SENSOR, OXYGEN (#1-3-5)
$302.50¢151 250
1
#34
36532-MJR-671
SENSOR, OXYGEN (#2-4-6)
$302.50¢151 250
1
#35
90004-GHB-600
BOLT, FLANGE (6X10) (NSHF)
$3.75¢1 875
1
#36
90011-HN0-A00
BOLT, FLANGE (6X10)
$1.64¢819
1
#37
90101-ML0-720
WASHER, PLAIN (8MM)
$4.86¢2 431
1
#38
90112-MCA-000
BOLT, SPECIAL (6X12)
$2.59¢1 294
1
#39
90130-MCA-000
BOLT, FLANGE SOCKET (8X35)
$3.65¢1 825
1
#40
90304-HB3-771
NUT, SPECIAL (6MM)
$7.35¢3 675
1
#41
90308-MT8-000
NUT, CAP (6MM)
$3.49¢1 744
1
#42
90545-323-700
WASHER (6.5X18)
$2.56¢1 281
1
#43
94050-08020
NUT, FLANGE (8MM)
$2.51¢1 256
1
#44
94103-08000
WASHER, PLAIN (8MM)
$0.84¢419
1
#45
95701-08045-00
BOLT, FLANGE (8X45)
$1.89¢944
1
#46
95701-08045-02
BOLT, FLANGE (8X45)
$2.50¢1 250
1
#47
96001-06008-02
BOLT, FLANGE (6X8)
$1.99¢994
1
