FRONT BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

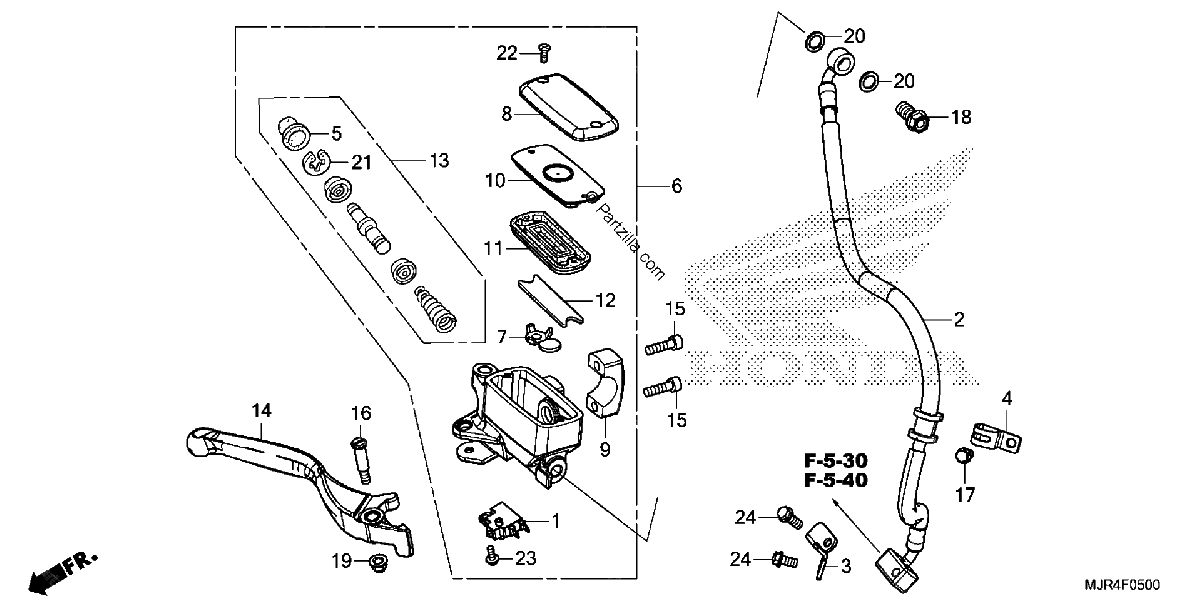

Diagrama de FRONT BRAKE MASTER CYLINDER

Repuestos

#1
35340-MGS-D31
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
1
#2
45124-MJR-671
HOSE, FR. BRAKE
$70.49¢35 244
1
#3
45151-MJR-670
STAY A, FR. BRAKE HOSE
$6.79¢3 394
1
#4
45181-MJR-670
CLAMP, FR. BRAKE HOSE
$6.63¢3 313
1
#5
45504-410-003
BOOT
$14.24¢7 119
1
#6
45510-MJR-305
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)
$379.26¢189 631
1
#7
45512-MA6-006
PROTECTOR
$5.20¢2 600
1
#8
45513-MM5-016
CAP, MASTER CYLINDER (NISSIN)
$26.02¢13 013
1
#9
45517-MAV-751
HOLDER, MASTER CYLINDER (NISSIN)
$24.05¢12 025
1
#10
45518-MM5-006
PLATE, DIAPHRAGM
$12.36¢6 181
1
#11
45520-MM5-006
DIAPHRAGM
$17.68¢8 838
1
#12
45523-MN5-006
FLOAT, FR. MASTER CYLINDER (NISSIN)
$5.45¢2 725
1
#13
45530-MA5-671
MASTER CYLINDER SET
$83.25¢41 625
1
#14
53175-MJR-305
LEVER, R. HANDLE (COO)
$32.39¢16 194
1
#15
90103-MJR-670
BOLT, SOCKET (6X22)
$5.14¢2 569
1
#16
90114-MA5-671
BOLT, HANDLE LEVER PIVOT
$11.03¢5 513
1
#17
90123-MCH-A00
BOLT, FLANGE (6X12)
$1.85¢925
1
#18
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#19
90202-ZV0-000
NUT, CAP (6MM)
$3.57¢1 787
1
#20
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#21
90651-MA5-671
CIRCLIP
$3.10¢1 550
1
#22
93600-04012-0G
SCREW, FLAT (4X12)
$1.16¢581
1
#22
93600-04012-1G
SCREW, FLAT (4X12)
$1.16¢581
1
#23
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#23
93893-04012-17
SCREW-WASHER (4X12)
$1.72¢862
1
#24
96001-06016-07
BOLT, FLANGE (6X16)
$1.35¢675
1
