PEDAL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

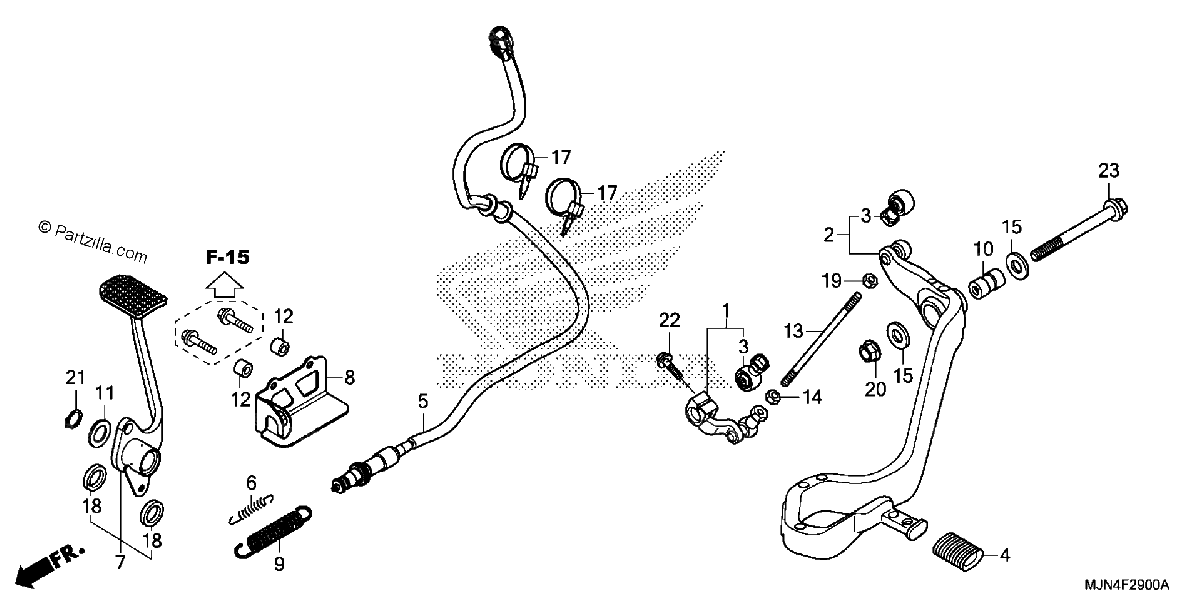

Diagrama de PEDAL

Repuestos

#1
24710-MCS-G00
ARM, GEARSHIFT
$49.84¢24 919
1
#2
24720-MJN-305
PEDAL, GEARSHIFT (COO)
$145.76¢72 881
1
#3
24724-MBW-D21
COVER, DUST
$8.45¢4 225
1
#4
24781-371-000
RUBBER, CHANGE PEDAL
$6.21¢3 106
1
#5
35350-MJN-A00
SWITCH ASSY., RR. STOP
$17.38¢8 688
1
#5
35350-MJN-A01
SWITCH ASSY., RR. STOP
$17.31¢8 656
1
#6
35357-MJN-A00
SPRING, STOP SWITCH
$5.70¢2 850
1
#6
35357-MJN-A01
SPRING, STOP SWITCH
$5.90¢2 950
1
#7
46500-MJN-305
PEDAL ASSY., RR. BRAKE (COO)
$145.76¢72 881
1
#7
46500-MJN-A00
PEDAL ASSY., RR. BRAKE
$145.76¢72 881
1
#8
46506-MJN-A00
STAY, STOP SWITCH
$21.56¢10 781
1
#9
46514-MJN-A00
SPRING, BRAKE PEDAL RETURN
$8.88¢4 438
1
#9
46514-MJN-A01
SPRING, BRAKE PEDAL RETURN
$9.13¢4 563
1
#10
46515-MM8-000
COLLAR, RR. BRAKE PIVOT
$13.60¢6 800
1
#11
53312-657-000
WASHER, BUSH
$8.13¢4 063
1
#12
53709-MFL-000
COLLAR, STEERING DAMPER
$2.66¢1 331
1
#13
90165-MJN-A00
BOLT, TIE ROD
$10.29¢5 144
1
#14
90201-700-000
NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)
$0.99¢494
1
#15
90551-033-000
WASHER, SPROCKET SETTING
$2.24¢1 119
1
#16
90601-KAF-003
CLIP, SWITCH COVER
$3.44¢1 719
1
#17
90652-KT1-771
BAND, WIRE (BLACK)
$5.42¢2 713
1
#18
91206-968-003
DUST SEAL (17X23X3) (NOK)
$4.47¢2 238
1
#19
94002-06000-0S
NUT, HEX. (6MM)
$1.68¢838
1
#20
94050-10000
NUT, FLANGE (10MM)
$1.90¢950
1
#21
94511-15000
CIRCLIP, OUTER (15MM)
$0.88¢438
1
#22
95701-06020-00
BOLT, FLANGE (6X20)
$2.27¢1 138
1
#23
95701-10100-00
BOLT, FLANGE (10X100)
$3.79¢1 894
1
