CYLINDER HEAD COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

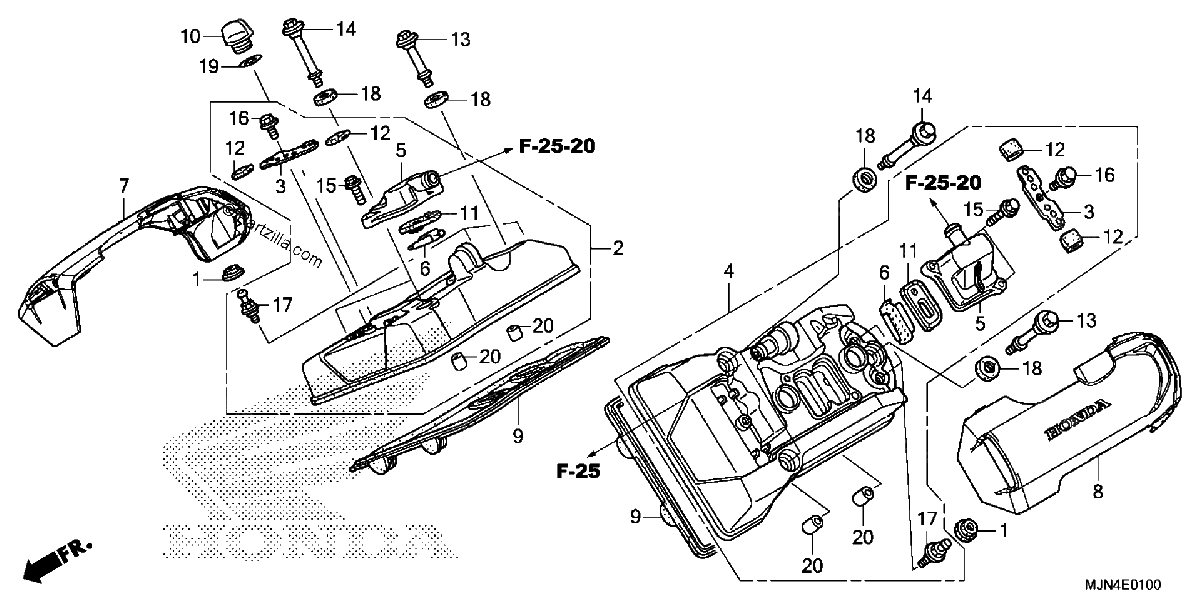

Diagrama de CYLINDER HEAD COVER

Repuestos

#1
11345-MB0-000
GROMMET B, RR. COVER
$4.52¢2 260
1
#2
12310-MJN-A00
COVER ASSY., R. CYLINDER HEAD
$474.01¢237 003
1
#3
12313-MCS-000
PLATE, SETTING
$2.43¢1 213
1
#4
12320-MJN-A00
COVER ASSY., L. CYLINDER HEAD
$474.01¢237 003
1
#5
12331-MCS-000
COVER, REED VALVE
$19.06¢9 528
1
#6
12341-MAT-750
PLATE, PORT (AI)
$16.57¢8 286
1
#7
12360-MJN-A00
COVER, R. OVER HEAD
$124.38¢62 192
1
#8
12370-MJN-A00
COVER, L. OVER HEAD
$124.38¢62 192
1
#9
12391-MCS-000
GASKET, HEAD COVER
$43.30¢21 649
1
#10
15611-MB0-000
CAP, OIL FILLER
$10.23¢5 118
1
#11
18601-MCH-003
VALVE, REED
$28.95¢14 473
1
#12
31503-044-670
RUBBER B, BATTERY MOUNTING
$3.04¢1 518
1
#13
90017-MAL-600
BOLT, HEAD COVER
$14.87¢7 435
1
#14
90017-MCS-000
BOLT, HEAD COVER
$5.09¢2 547
1
#15
90020-ZC3-000
BOLT, FLANGE (6X20)
$2.20¢1 098
1
#16
90083-657-000
BOLT, FLANGE (6X10)
$6.72¢3 358
1
#17
90101-MN5-003
BOLT, SIDE SHELTER SETTING
$13.86¢6 929
1
#18
90543-MV9-670
RUBBER, MOUNTING
$5.51¢2 754
1
#19
91301-250-000
O-RING (21.5MM)
$3.07¢1 535
1
#19
91307-425-003
O-RING (21.5X3.2)
$3.07¢1 535
1
#20
94301-08140
PIN, DOWEL (8X14)
$2.66¢1 328
1
