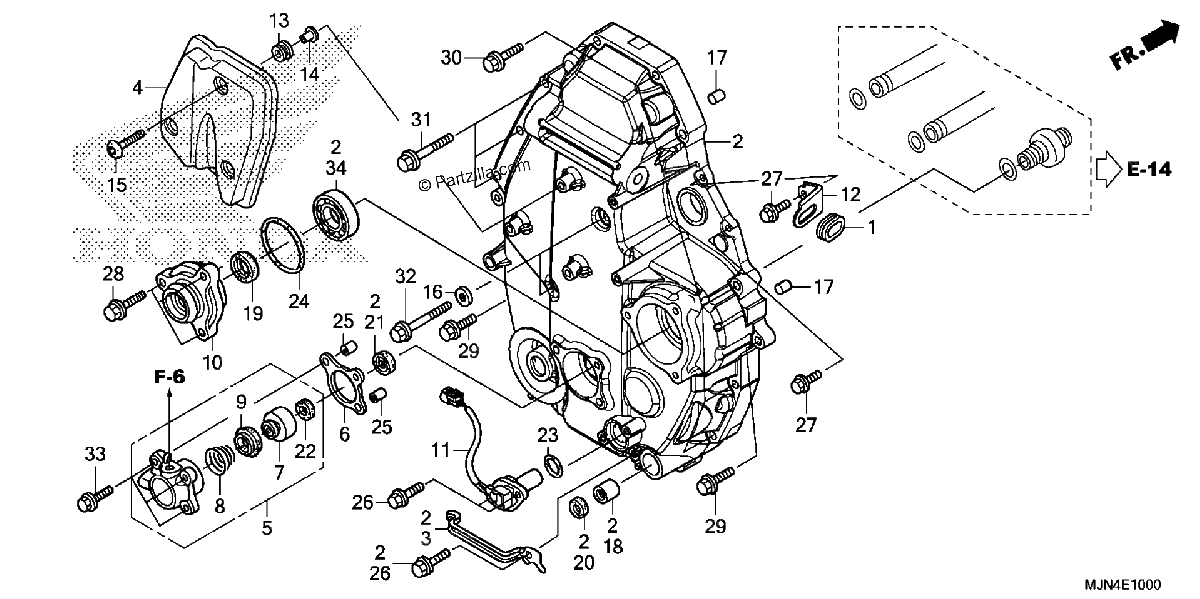

REAR CRANKCASE COVER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
GROMMET A, AIR CLEANER HOUSING
$3.65¢1 825
#2
CASE, RR.
$680.61¢340 306
#3
CLAMP B, DRAIN HOSE
$7.95¢3 975
#4
COVER, RR. CASE
$55.71¢27 856
#5
CYLINDER ASSY., CLUTCH SLAVE
$109.76¢54 881
#6
GASKET, SLAVE CYLINDER
$6.04¢3 019
#7
PISTON, SLAVE CYLINDER
$30.94¢15 469
#8
SPRING, SLAVE CYLINDER
$7.52¢3 762
#9
CUP, SLAVE CYLINDER
$13.35¢6 675
#10
HOLDER, FINAL SHAFT BEARING
$36.34¢18 169
#11
SENSOR ASSY., SPEED
$184.10¢92 050
#12
STAY, ENGINE HEAT GUARD
$7.64¢3 819
#13
CUSHION A, RR. FENDER
$4.86¢2 431
#14
COLLAR, SIDE MOUNTING
$7.24¢3 619
#15
BOLT, SPECIAL (6X22)
$4.59¢2 294
#16
WASHER, SEALING (8.5MM)
$2.89¢1 444
#17
PIN, DOWEL (10X16)
$5.21¢2 606
#18
BEARING, NEEDLE (14X22X16)
$14.57¢7 288
#19
OIL SEAL (28X45X7)
$8.89¢4 444
#20
OIL SEAL (14X22X5)
$4.63¢2 313
#21
OIL SEAL (8X25X8) (ARAI)
$4.91¢2 456
#22
OIL SEAL (8X18X5)
$4.91¢2 456
#23
O-RING (18.1X3.6)
$4.28¢2 138
#24
O-RING (66MM)
$5.58¢2 788
#25
PIN, DOWEL (8X10)
$2.89¢1 444
#26
BOLT, FLANGE (6X14)
$1.23¢613
#27
BOLT, FLANGE (6X20)
$2.27¢1 138
#28
BOLT, FLANGE (8X28)
$1.79¢894
#29
BOLT, FLANGE (8X32)
$1.79¢894
#30
BOLT, FLANGE (8X40)
$1.54¢769
#31
BOLT, FLANGE (8X75)
$3.44¢1 719
#32
BOLT, FLANGE (8X85)
$3.36¢1 681
#33
BOLT, FLANGE (6X22)
$1.60¢800
#34
BEARING, RADIAL BALL (6206)
$25.10¢12 550
