SHELTER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

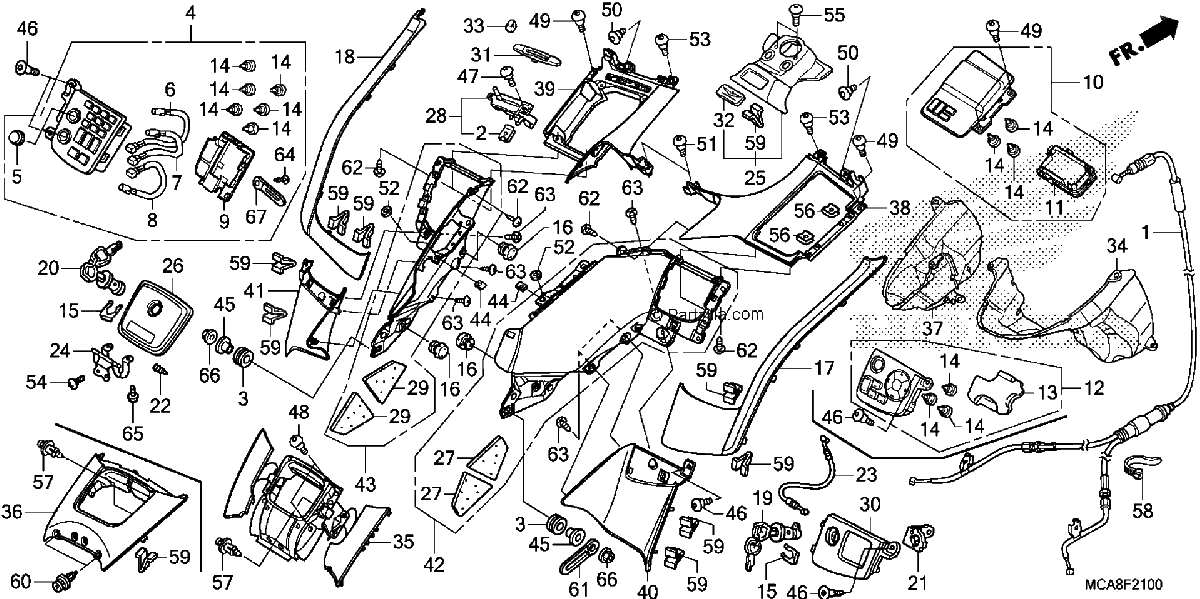

Diagrama de SHELTER

Repuestos

#1
18337-MCA-S40
CABLE, EX. PIPE PROTECTOR ADJUSTING
$135.96¢67 981
1
#001
18337-MCA-S40
CABLE, EX. PIPE PROTECTOR ADJUSTING
$135.96¢67 981
1
#002
19014-KEA-003
NUT, SETTING (6MM)
$3.75¢1 875
1
#2
19014-KEA-003
NUT, SETTING (6MM)
$3.75¢1 875
1
#003
33712-KT1-670
RUBBER, TAILLIGHT
$5.42¢2 713
1
#3
33712-KT1-670
RUBBER, TAILLIGHT
$5.42¢2 713
1
#4
35600-MCA-S41
SWITCH ASSY., AUDIO HAZARD
$916.45¢458 225
1
#004
35600-MCA-S81
SWITCH ASSY., AUDIO HAZARD
$1007.88¢503 938
1
#4
35600-MCA-S81
SWITCH ASSY., AUDIO HAZARD
$1007.88¢503 938
1
#5
35601-MCA-A81
KNOB, MODE SELECT
$12.89¢6 444
1
#005
35601-MCA-A81
KNOB, MODE SELECT
$12.89¢6 444
1
#6
35602-MCA-A81
(VOLUME ORNAMENT)
$13.34¢6 669
1
#006
35602-MCA-A81
(VOLUME ORNAMENT)
$13.34¢6 669
1
#007
35603-MCA-A81
(MODE ORNAMENT)
$13.34¢6 669
1
#7
35603-MCA-A81
(MODE ORNAMENT)
$13.34¢6 669
1
#008
35604-MCA-A81
(FOR HAZARD SW)
$13.34¢6 669
1
#8
35604-MCA-A81
(FOR HAZARD SW)
$13.34¢6 669
1
#9
35610-MCA-A81
COVER
$18.85¢9 425
1
#009
35610-MCA-A81
COVER
$18.85¢9 425
1
#010
35820-MCA-R61ZA
SWITCH ASSY., LEVELING *NH1* (BLACK)
$368.71¢184 356
1
#10
35820-MCA-R61ZA
SWITCH ASSY., LEVELING *NH1* (BLACK)
$368.71¢184 356
1
#011
35821-MCA-A81
COVER
$11.89¢5 944
1
#11
35821-MCA-A81
COVER
$11.89¢5 944
1
#12
35900-MCA-A81
SWITCH ASSY., NAVIGATION PANEL
$364.40¢182 200
1
#012
35900-MCA-A71
SWITCH ASSY., NAVIGATION PANEL
$364.68¢182 338
1
#12
35900-MCA-A71
SWITCH ASSY., NAVIGATION PANEL
$364.68¢182 338
1
#13
35901-MCA-A70
COVER
$8.49¢4 244
1
#013
35901-MCA-A70
COVER
$8.49¢4 244
1
#14
35902-MCA-A70
BULB
$14.13¢7 063
1
#014
35902-MCA-A70
BULB
$14.13¢7 063
1
#15
37222-MCA-000
SPRING, LOCK KEY SETTING
$4.51¢2 256
1
#015
37222-MCA-000
SPRING, LOCK KEY SETTING
$4.51¢2 256
1
#16
61112-727-000
RUBBER, TENSIONER ARM
$3.86¢1 931
1
#016
61112-727-000
RUBBER, TENSIONER ARM
$3.86¢1 931
1
#017
64204-MCA-S40ZA
MOLDING, R. COWL TRIM *NH1* (BLACK)
$27.45¢13 725
1
#17
64204-MCA-S40ZA
MOLDING, R. COWL TRIM *NH1* (BLACK)
$27.45¢13 725
1
#18
64214-MCA-S40ZA
MOLDING, L. COWL TRIM *NH1* (BLACK)
$27.45¢13 725
1
#018
64214-MCA-S40ZA
MOLDING, L. COWL TRIM *NH1* (BLACK)
$27.45¢13 725
1
#19
77233-MCA-003
LOCK ASSY., POCKET LID
$84.43¢42 213
1
#19
77233-MCA-A61
LOCK ASSY., POCKET LID
$104.77¢52 387
1
#019
77233-MCA-A61
LOCK ASSY., POCKET LID
$104.77¢52 387
1
#020
77234-MCA-003
LOCK ASSY., FUEL LID
$108.77¢54 387
1
#20
77234-MCA-003
LOCK ASSY., FUEL LID
$108.77¢54 387
1
#21
77236-MCA-S40
PLATE, POCKET LOCK
$8.43¢4 213
1
#021
77236-MCA-S40
PLATE, POCKET LOCK
$8.43¢4 213
1
#22
83132-MN5-000
RUBBER, SHELTER LID
$3.08¢1 538
1
#022
83132-MN5-000
RUBBER, SHELTER LID
$3.08¢1 538
1
#023
83133-MCA-S40
CABLE, POCKET LOCK
$14.69¢7 344
1
#23
83133-MCA-S40
CABLE, POCKET LOCK
$14.69¢7 344
1
#24
83140-MCA-000
HINGE
$150.25¢75 125
1
#024
83140-MCA-000
HINGE
$150.25¢75 125
1
#025
83150-MCA-S40ZA
CENTER ASSY., FR. SHELTER *NH1* (BLACK)
$129.49¢64 744
1
#25
83150-MCA-S40ZA
CENTER ASSY., FR. SHELTER *NH1* (BLACK)
$129.49¢64 744
1
#026
83153-MCA-S40ZB
LID, SHELTER NHB01 NHRAPHITE BLACK)
$48.01¢24 006
1
#26
83153-MCA-S40ZB
LID, SHELTER NHB01 NHRAPHITE BLACK)
$48.01¢24 006
1
#27
83154-MCA-S40
MAT, R. TOP SHELTER
$15.38¢7 688
1
#027
83154-MCA-S40
MAT, R. TOP SHELTER
$15.38¢7 688
1
#28
83155-MCA-A70
LEVER ASSY., VENT ADJUSTER (LOWER)
$48.49¢24 244
1
#028
83155-MCA-A70
LEVER ASSY., VENT ADJUSTER (LOWER)
$48.49¢24 244
1
#29
83159-MCA-S40
MAT, L. TOP SHELTER
$15.38¢7 688
1
#029
83159-MCA-S40
MAT, L. TOP SHELTER
$15.38¢7 688
1
#30
83160-MCA-000
PANEL, R. SHELTER SWITCH
$29.02¢14 513
1
#31
83161-MCA-S40ZA
COVER, VENT ADJUSTER LEVER (LOWER) *NH1* (BLACK)
$28.04¢14 019
1
#031
83161-MCA-S40ZA
COVER, VENT ADJUSTER LEVER (LOWER) *NH1* (BLACK)
$28.04¢14 019
1
#32
83162-MCA-000
EMBLEM, GOLD WING
$43.84¢21 919
1
#032
83162-MCA-000
EMBLEM, GOLD WING
$43.84¢21 919
1
#033
83163-MCA-A70
KNOB, VENT ADJUSTER LEVER (LOWER)
$6.86¢3 431
1
#33
83163-MCA-A70
KNOB, VENT ADJUSTER LEVER (LOWER)
$6.86¢3 431
1
#034
83165-MCA-A60
COVER, R. SHELTER (INNER)
$50.58¢25 288
1
#34
83165-MCA-A60
COVER, R. SHELTER (INNER)
$50.58¢25 288
1
#35
83170-MCA-S80ZB
CENTER, TOP SHELTER *NHB01* (GRAPHITE BLACK)
$218.89¢109 444
1
#036
83173-MCA-S40ZB
SHELTER, CENTER TOP NHB01 NHRAPHITE BLACK)
$145.51¢72 756
1
#36
83173-MCA-S40ZB
SHELTER, CENTER TOP NHB01 NHRAPHITE BLACK)
$145.51¢72 756
1
#37
83175-MCA-A60
COVER, L. SHELTER (INNER)
$50.58¢25 288
1
#037
83175-MCA-A60
COVER, L. SHELTER (INNER)
$50.58¢25 288
1
#38
83177-MCA-S40ZA
SHELTER, R. FR. *NH1* (BLACK)
$277.98¢138 988
1
#038
83177-MCA-S40ZA
SHELTER, R. FR. *NH1* (BLACK)
$277.98¢138 988
1
#39
90113-MM5-000
SCREW, PAN (6X14)
$3.75¢1 875
1
#039
83178-MCA-S40ZA
SHELTER, L. FR. *NH1* (BLACK)
$277.98¢138 988
1
#39
83178-MCA-S40ZA
SHELTER, L. FR. *NH1* (BLACK)
$277.98¢138 988
1
#040
83191-MCA-S40ZC
PANEL, R. SHELTER TOP *NHA86M* (MAT BALLISTIC BLACK)
$49.88¢24 938
1
#40
83191-MCA-S40ZC
PANEL, R. SHELTER TOP *NHA86M* (MAT BALLISTIC BLACK)
$49.88¢24 938
1
#41
83192-MCA-S40ZC
PANEL, L. SHELTER TOP *NHA86M* (MAT BALLISTIC BLACK)
$49.88¢24 938
1
#041
83192-MCA-S40ZC
PANEL, L. SHELTER TOP *NHA86M* (MAT BALLISTIC BLACK)
$49.88¢24 938
1
#042
83193-MCA-S40ZB
SHELTER SET, R. TOP *NHB01* (GRAPHITE BLACK)
$646.90¢323 450
1
#42
83193-MCA-S40ZB
SHELTER SET, R. TOP *NHB01* (GRAPHITE BLACK)
$646.90¢323 450
1
#043
83194-MCA-S40ZB
SHELTER SET, L. TOP *NHB01* (GRAPHITE BLACK)
$646.90¢323 450
1
#43
83194-MCA-S40ZB
SHELTER SET, L. TOP *NHB01* (GRAPHITE BLACK)
$646.90¢323 450
1
#44
84601-HA7-670
NUT, FENDER SETTING
$6.71¢3 356
1
#45
84706-163-670
COLLAR, TAILLIGHT MOUNTING
$4.95¢2 475
1
#045
84706-163-670
COLLAR, TAILLIGHT MOUNTING
$4.95¢2 475
1
#046
90003-GEV-760
BOLT, MUFFLER PROTECTOR
$2.48¢1 238
1
#46
90003-GEV-760
BOLT, MUFFLER PROTECTOR
$2.48¢1 238
1
#47
90103-MN9-000
BOLT, FR. DISK
$5.91¢2 956
1
#047
90103-MN9-000
BOLT, FR. DISK
$5.91¢2 956
1
#48
90104-MN4-000
SCREW, SPECIAL (6X19)
$7.01¢3 506
1
#049
90106-MBY-000
SCREW, SPECIAL (5X12)
$3.44¢1 719
1
#49
90106-MBY-000
SCREW, SPECIAL (5X12)
$3.44¢1 719
1
#050
90106-MM4-000
SCREW, PAN (6X14)
$4.71¢2 356
1
#50
90106-MM4-000
SCREW, PAN (6X14)
$4.71¢2 356
1
#051
90137-MCA-000
SCREW, SPECIAL (6MM)
$3.65¢1 825
1
#51
90106-MM4-000
SCREW, PAN (6X14)
$4.71¢2 356
1
#51
90137-MCA-000
SCREW, SPECIAL (6MM)
$3.65¢1 825
1
#52
90111-MCA-S40
COLLAR (6.5X11X2.5)
$6.03¢3 013
1
#053
90113-MM5-000
SCREW, PAN (6X14)
$3.75¢1 875
1
#54
90115-KW7-900
SCREW, VISOR SPECIAL SETTING
$2.68¢1 338
1
#054
90115-KW7-900
SCREW, VISOR SPECIAL SETTING
$2.68¢1 338
1
#55
90150-GBT-600
SCREW, PAN (5X18)
$2.59¢1 294
1
#055
90150-GBT-600
SCREW, PAN (5X18)
$2.59¢1 294
1
#056
90320-GE2-760
NUT, SPRING (5MM)
$2.54¢1 269
1
#56
90320-GE2-760
NUT, SPRING (5MM)
$2.54¢1 269
1
#57
90602-GCT-000
RIVET, PUSH (6MM)
$1.19¢594
1
#057
90602-GCT-000
RIVET, PUSH (6MM)
$1.19¢594
1
#58
90620-SB2-003
BAND, WIRE HARNESS
$31.72¢15 862
1
#058
90620-SB2-003
BAND, WIRE HARNESS
$31.72¢15 862
1
#059
90666-SDA-A01
CLIP, SNAP FITTING (PO)(NATURAL)
$1.01¢506
1
#59
90666-SDA-A01
CLIP, SNAP FITTING (PO)(NATURAL)
$1.01¢506
1
#60
90683-MBW-003
CLIP, BODY
$2.51¢1 256
1
#060
90683-MBW-003
CLIP, BODY
$2.51¢1 256
1
#61
91413-679-000
CLIP (2X70)
$10.81¢5 406
1
#061
91413-679-000
CLIP (2X70)
$10.81¢5 406
1
#62
93903-24280
SCREW, TAPPING (4X10)
$1.74¢869
1
#062
93903-24280
SCREW, TAPPING (4X10)
$1.74¢869
1
#063
93903-24380
SCREW, TAPPING (4X12)
$1.16¢581
1
#63
93903-24380
SCREW, TAPPING (4X12)
$1.16¢581
1
#64
93911-24110
SCREW, TAPPING (4X10) (PO)
$0.86¢431
1
#064
93911-24110
SCREW, TAPPING (4X10) (PO)
$0.86¢431
1
#065
93913-24380
SCREW, TAPPING (4X12) (PO)
$1.16¢581
1
#65
93913-24380
SCREW, TAPPING (4X12) (PO)
$1.16¢581
1
#66
94050-06070
NUT, FLANGE (6MM)
$1.86¢931
1
#066
94050-06070
NUT, FLANGE (6MM)
$1.86¢931
1
#67
94591-44000
CLIP (4X40)
$2.97¢1 487
1
#067
94591-44000
CLIP (4X40)
$2.97¢1 487
1
#068
35605-MCA-A81
KNOB SET, MODE SELECT
$14.90¢7 450
1
