SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

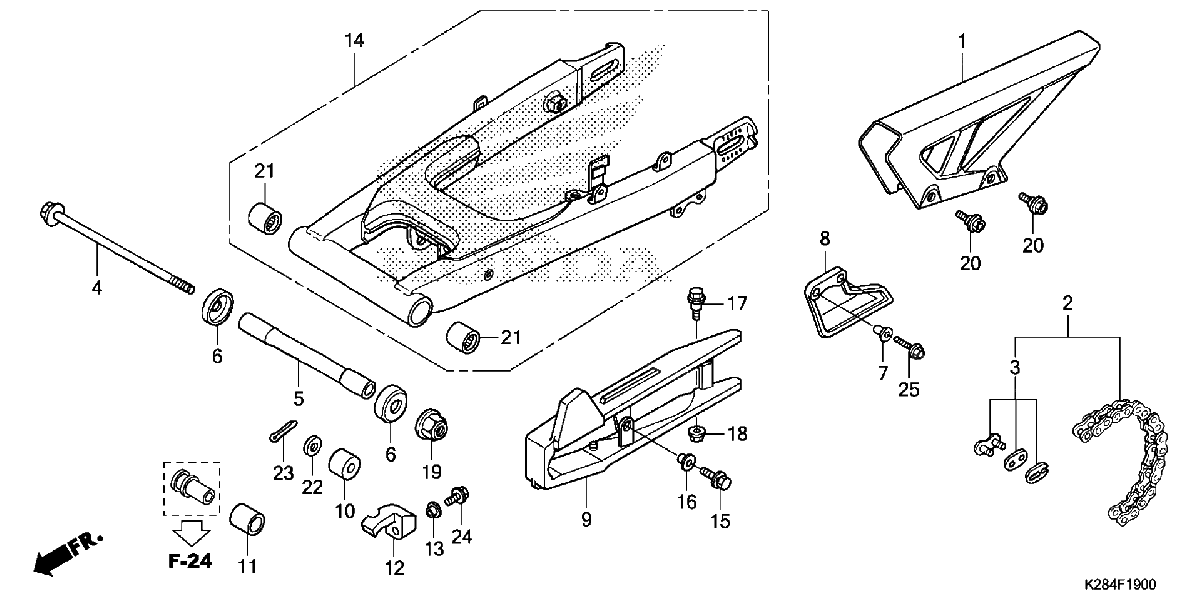

Diagrama de SWINGARM

Repuestos

#1
40510-K28-910
CASE, DRIVE CHAIN
$32.26¢16 131
1
#2
40530-KSJ-003
CHAIN, DRIVE (DID428HD-118RB) (DAIDO)
$72.14¢36 069
1
#3
40531-355-013
MASTER LINK (DAIDO)
$5.02¢2 512
1
#4
52101-K28-910
BOLT, SWINGARM PIVOT
$23.79¢11 894
1
#5
52141-K28-910
COLLAR, SWINGARM
$43.65¢21 825
1
#6
52144-GF5-003
DUST SEAL (31X38.5X7) (NOK)
$14.24¢7 119
1
#6
52144-K28-910
CAP, RR. SWINGARM DUST SEAL
$14.24¢7 119
1
#7
52157-K28-910
COLLAR, CHAIN GUARD
$4.00¢2 000
1
#8
52160-K28-910
GUARD, CHAIN
$26.66¢13 331
1
#9
52170-K28-910
SLIDER, CHAIN
$90.78¢45 388
1
#10
52175-K28-910
ROLLER, CHAIN (UPPER)
$9.20¢4 600
1
#11
52180-K28-910
SLIDER, CHAIN (UPPER)
$8.34¢4 169
1
#12
52185-K28-910
SLIDER, CHAIN (LOWER)
$17.25¢8 625
1
#13
52186-K28-910
WASHER (6MM)
$3.14¢1 569
1
#14
52200-K28-920
SWINGARM SUB-ASSY., RR.
$409.61¢204 806
1
#15
90107-K28-910
BOLT-WASHER (5X16)
$3.14¢1 569
1
#16
90108-K28-910
COLLAR (10.5X5.3X3)
$6.13¢3 063
1
#17
90113-KYK-910
BOLT, FLANGE (6X20)
$4.45¢2 225
1
#18
90302-KYA-601
NUT, FLANGE (6MM) (PT)
$2.88¢1 438
1
#19
90306-KYA-601
NUT, FLANGE (12MM) (PT)
$3.65¢1 825
1
#20
90653-KYK-910
BOLT, SPECIAL (6MM)
$3.65¢1 825
1
#21
91070-GC4-601
BEARING, NEEDLE (20X26X20) (NTN)
$28.71¢14 356
1
#22
94102-08700
WASHER, PLAIN (8MM)
$1.21¢606
1
#23
94201-20150
PIN, SPLIT (2.0X15)
$1.34¢669
1
#24
95701-06012-07
BOLT, FLANGE (6X12)
$2.09¢1 044
1
#25
95701-06018-00
BOLT, FLANGE (6X18)
$2.09¢1 044
1
#25
95801-06018-00
BOLT, FLANGE (6X18)
$2.09¢1 044
1
