REAR BRAKE CALIPER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

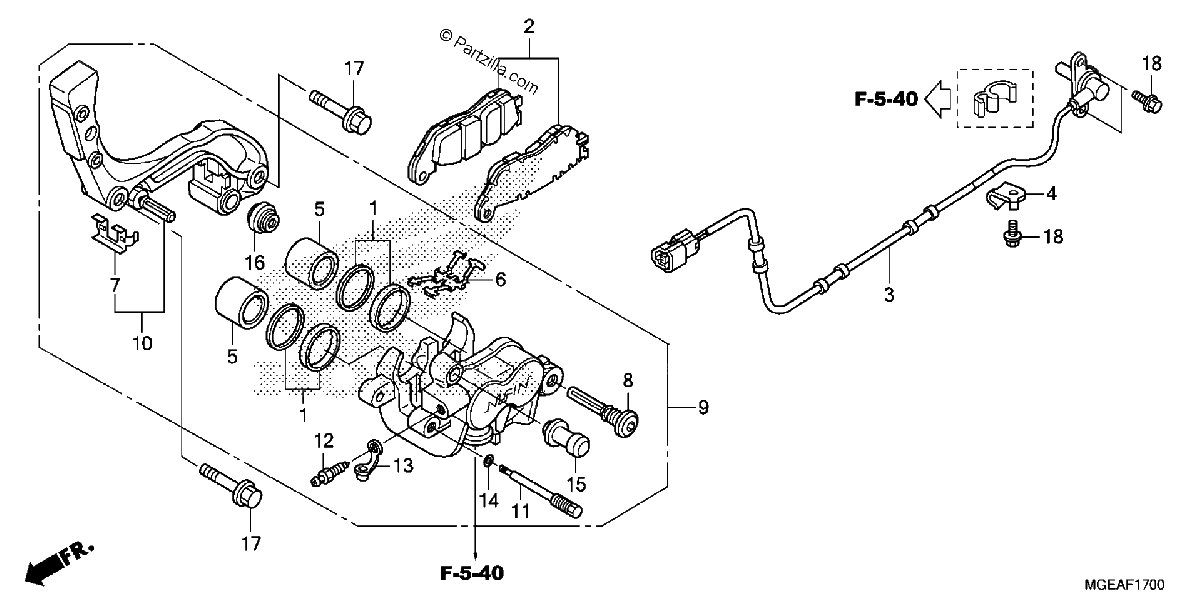

Diagrama de REAR BRAKE CALIPER 1

Repuestos

#1
06431-MA3-405
SEAL SET, PISTON
$8.18¢4 088
1
#2
06435-MFN-D11
PAD SET, Rear.
$73.83¢36 915
1
#2
06435-MFN-D12
PAD SET, Rear.
$73.83¢36 915
1
#3
38510-MGE-641
SENSOR, Rear WHEEL SPEED
$228.55¢114 276
1
#4
38515-MCT-910
GUIDE, SENSOR WIRE
$9.44¢4 721
1
#5
43107-MGE-006
PISTON
$42.85¢21 425
1
#6
43108-MFN-D02
SPRING, PAD
$4.94¢2 472
1
#7
43112-MGE-006
RETAINER
$9.35¢4 675
1
#8
43131-KW3-006
BOLT, PIN
$11.07¢5 537
1
#9
43150-MGE-006
CALIPER SUB-Assembly., Rear.
$428.35¢214 176
1
#10
43190-MGE-006
BRACKET SUB-Assembly., Rear.
$194.53¢97 267
1
#11
43215-KZ4-J41
PIN, HANGER
$5.86¢2 932
1
#12
43352-568-003
SCREW, BLEEDER (NISSIN)
$8.85¢4 427
1
#13
43353-461-771
CAP, BLEEDER
$5.63¢2 818
1
#14
45111-MAJ-G41
RING, STOPPER
$4.24¢2 122
1
#15
45132-166-016
BOOT, PIN BUSH (NISSIN)
$6.08¢3 042
1
#16
45133-MA3-006
BOOT B
$6.08¢3 042
1
#17
90132-MGE-000
BOLT, FLANGE (10X45)
$5.75¢2 875
1
#18
96001-06010-07
BOLT, FLANGE (6X10)
$1.92¢960
1
