SIDE GEAR CASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

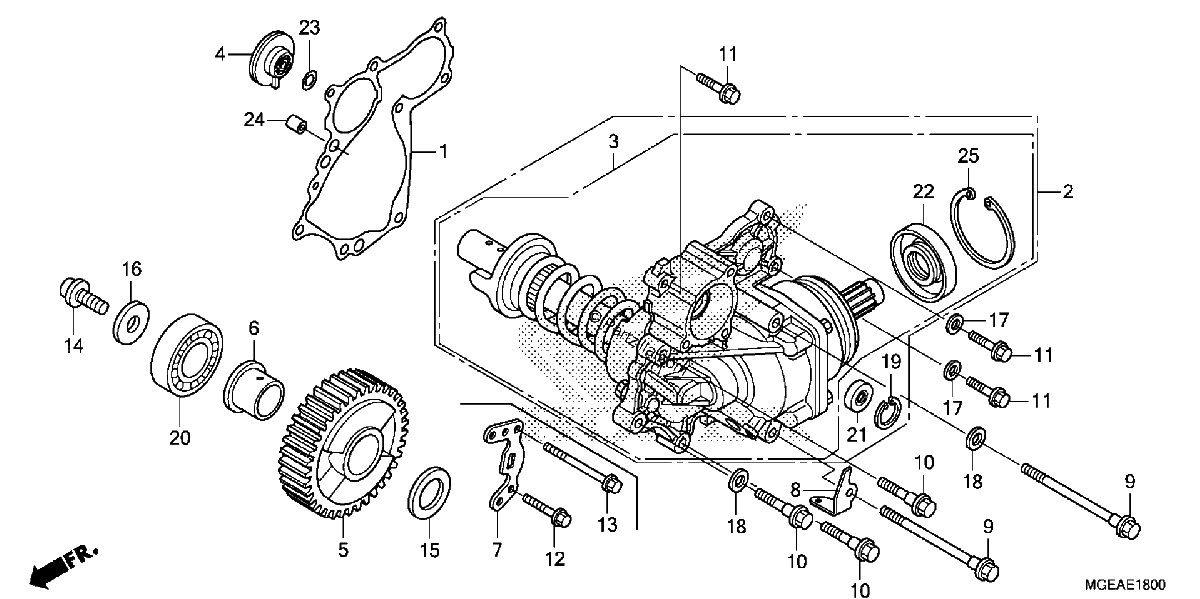

Diagrama de SIDE GEAR CASE

Repuestos

#1
11663-MGE-003
GASKET, SIDE GEAR CASE
$26.96¢13 478
1
#2
21100-MGE-700
CASE ASSY., SIDE GEAR
$3114.79¢1 557 393
1
#4
23218-MGE-010
COLLAR, OIL GUIDE
$27.86¢13 932
1
#5
23541-MGE-000
GEAR, FINAL DRIVEN (37T)
$144.88¢72 438
1
#6
23733-MGE-000
COLLAR (25X30X28.6)
$38.19¢19 096
1
#8
32156-MGH-640
STAY, HARNESS CLIP
$5.46¢2 731
1
#9
90005-MGE-010
BOLT, FLANGE (8X95)
$5.93¢2 967
1
#10
90006-MGE-010
BOLT, UBS (8X40)
$6.39¢3 197
1
#11
90016-GHB-680
BOLT, FLANGE (6X28)
$2.69¢1 346
1
#14
90037-ME9-000
BOLT, SPECIAL (10MM)
$8.58¢4 289
1
#15
90403-MGE-000
WASHER, SPECIAL (25X40.4X1.2)
$6.09¢3 048
1
#16
90414-MGE-D00
WASHER (10.5X36X4)
$2.78¢1 392
1
#17
90441-706-000
WASHER, SEALING (6MM)
$1.31¢655
1
#18
90442-028-000
WASHER, SEALING (8MM)
$2.09¢1 047
1
#19
90603-MGE-000
CIRCLIP (INNER) (26MM)
$2.43¢1 213
1
#20
91005-MGE-003
BEARING, BALL (6305)
$28.49¢14 243
1
#21
91204-MB0-013
OIL SEAL (8X25X8) (ARAI)
$4.52¢2 260
1
#22
91205-MGE-003
OIL SEAL (28X66X8)
$12.95¢6 474
1
#23
91309-PJ7-010
O-RING (11.5X3.5)
$3.36¢1 679
1
#24
94302-10120
PIN, DOWEL (10X12)
$1.70¢851
1
#25
94520-65120
CIRCLIP (INNER) (65MM)
$3.62¢1 811
1
