FUEL TANK CRF150F 12 13 14

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

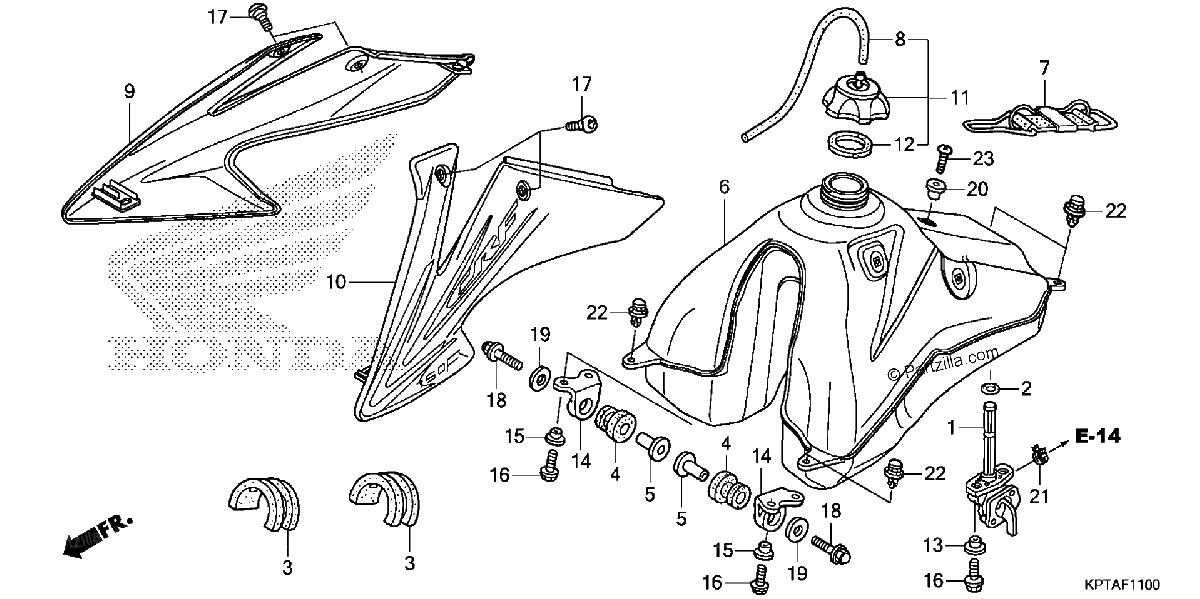

Diagrama de FUEL TANK CRF150F 12 13 14

Repuestos

#1
16950-GCF-671
PETCOCK ASSY.
$86.01¢43 006
1
#2
16997-467-000
O-RING (11.8X3.55)
$2.85¢1 425
1
#3
17506-KPS-900
RUBBER, TANK SETTING
$5.02¢2 512
1
#4
17508-GBF-830
RUBBER, TANK MOUNTING
$7.16¢3 581
1
#5
17509-KPS-900
COLLAR, TANK SETTING
$11.68¢5 838
1
#6
17510-KPS-A10
TANK, FUEL
$469.00¢234 500
1
#7
17516-KPS-900
BAND, RR. TANK
$17.86¢8 931
1
#8
17521-429-000
TUBE, FUEL CAP BREATHER
$8.45¢4 225
1
#9
17545-KPT-A40ZA
SHROUD SET, R. TANK (TYPE1) (WL)
$223.78¢111 888
1
#10
17555-KPT-A40ZA
SHROUD SET, L. TANK (TYPE1) (WL)
$223.78¢111 888
1
#11
17620-GEL-770
CAP ASSY., FUEL TANK
$36.51¢18 256
1
#12
17624-GEL-770
GASKET, FUEL CAP
$5.56¢2 781
1
#13
17626-KPS-900
COLLAR, TANK SETTING
$1.23¢613
1
#14
17634-KPS-900
BRACKET, FR. FUEL TANK
$2.81¢1 406
1
#15
84706-415-000
COLLAR
$3.01¢1 506
1
#16
90040-GHR-660
BOLT, FLANGE (6X16)
$2.36¢1 181
1
#17
90103-KV3-830
SCREW A, COWL SETTING
$3.65¢1 825
1
#18
90137-KA3-830
BOLT, FLANGE (6X40)
$3.65¢1 825
1
#19
90503-898-000
WASHER, TANK CUSHION
$2.92¢1 463
1
#20
90522-KF0-000
COLLAR, SIDE COVER SETTING
$5.42¢2 713
1
#21
90651-KPS-A11
CLAMP, TUBE (D10.0)
$2.64¢1 319
1
#22
90653-HC4-900
CLIP, SPLASH GUARD
$0.76¢381
1
#23
93500-06018-0A
SCREW, PAN (6X18)
$1.47¢737
1
