REAR BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

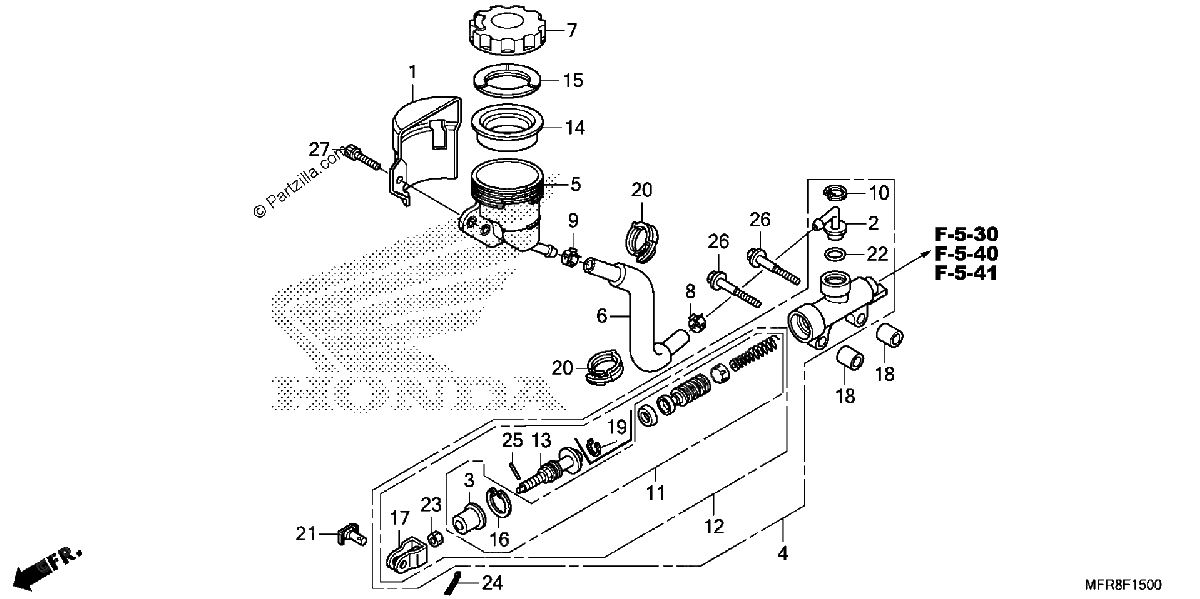

Diagrama de REAR BRAKE MASTER CYLINDER

Repuestos

#1
21341-MCH-000
COVER, RR. BRAKE OIL CUP
$20.35¢10 175
1
#2
43503-KS6-701
CONNECTOR, MASTER CYLINDER
$11.65¢5 825
1
#3
43504-MB2-006
BOOT
$11.74¢5 869
1
#4
43510-MFR-305
MASTER CYLINDER SUB-ASSY., RR. (COO) (NISSIN)
$267.75¢133 875
1
#5
43511-MA6-006
CUP, MASTER CYLINDER OIL
$47.05¢23 525
1
#6
43512-MFR-671
HOSE, RR. MASTER CYLINDER
$14.30¢7 150
1
#7
43513-MY1-006
CAP, OIL CUP
$34.38¢17 188
1
#8
43514-KS6-701
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
1
#9
43514-MN9-006
CLAMP, MASTER CYLINDER OIL HOSE
$19.68¢9 838
1
#10
43517-KS6-701
CIRCLIP, Rear MASTER CYLINDER
$4.63¢2 313
1
#11
43520-MB2-315
PISTON SET, MASTER CYLINDER (NISSIN)
$53.99¢26 994
1
#14
45520-300-000
DIAPHRAGM
$10.59¢5 294
1
#15
45521-MJ6-006
PLATE, DIAPHRAGM
$4.91¢2 456
1
#16
46182-MEL-D21
CIRCLIP
$2.50¢1 250
1
#17
46504-MAH-671
JOINT, BRAKE ROD
$18.40¢9 200
1
#18
50617-MFR-670
COLLAR, RR. BRAKE BRACKET
$4.81¢2 406
1
#20
90683-KJ2-003
CLIP, WIRE HARNESS
$4.33¢2 163
1
#21
90751-MEH-000
PIN, JOINT
$4.20¢2 100
1
#22
91212-422-006
O-RING (14.8X2.4)
$3.30¢1 650
1
#23
94002-08000-0S
NUT, HEX. (8MM)
$1.60¢800
1
#24
94201-20150
PIN, SPLIT (2.0X15)
$1.34¢669
1
#25
94305-20102
PIN, SPRING (2X10)
$1.13¢563
1
#26
95801-06035-08
BOLT, FLANGE (6X35)
$2.41¢1 206
1
#27
96600-06016-07
BOLT, SOCKET (6X16)
$2.24¢1 119
1
