TAILLIGHT LICENSE LIGHT 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

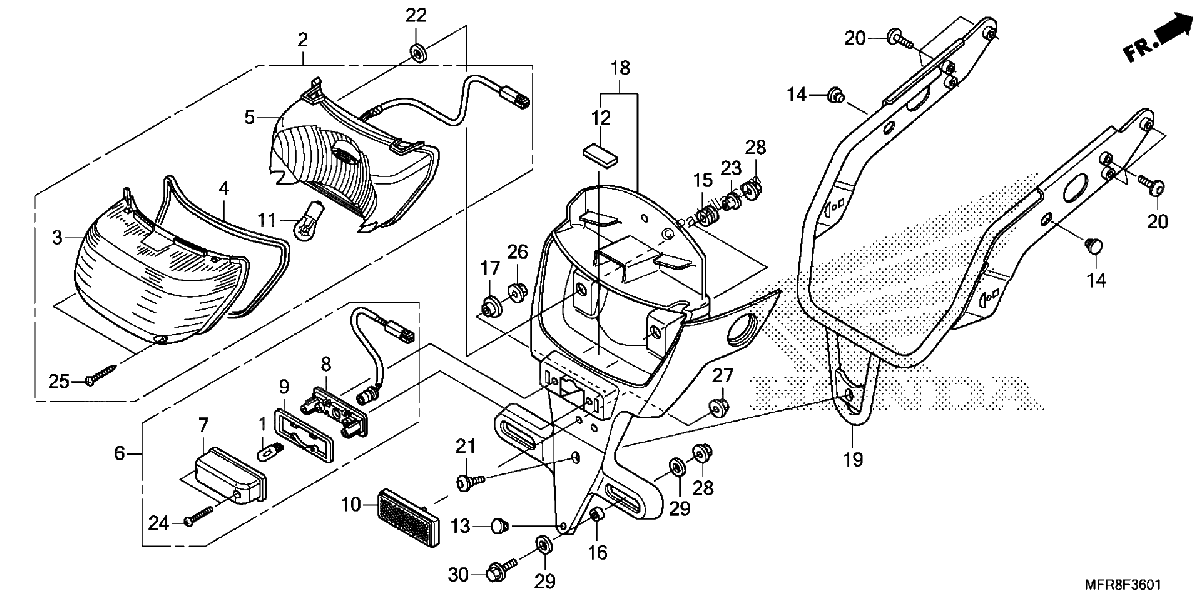

Diagrama de TAILLIGHT LICENSE LIGHT 2

Repuestos

#1
33301-SA0-741
BULB (12V 5W) (STANLEY)
$4.61¢2 306
1
#2
33701-MFW-003
TAILLIGHT ASSY. (12V 21/5W) (IMASEN)
$133.71¢66 856
1
#3
33702-MFE-305
LENS, TAILLIGHT (COO)
$29.47¢14 737
1
#3
33702-MFE-671
LENS, TAILLIGHT
$29.47¢14 737
1
#4
33703-MFE-671
GASKET, TAILLIGHT
$5.64¢2 819
1
#5
33707-MFW-003
BASE, TAILLIGHT
$52.31¢26 156
1
#6
33720-MFW-003
LIGHT ASSY., LICENSE (12V 5W)
$117.07¢58 537
1
#7
33721-GET-671
COVER, LICENSE
$24.61¢12 306
1
#8
33723-MCZ-671
BASE, LICENSE
$26.45¢13 225
1
#9
33729-MCZ-003
GASKET, LENS
$12.19¢6 094
1
#10
33741-MS6-921
REFLECTOR, REFLEX (STANLEY)
$17.73¢8 863
1
#11
34906-447-711
BULB, TAIL/STOP LIGHT (12V 21/5W) (STANLEY)
$10.96¢5 481
1
#12
50283-KSC-300
RUBBER, BATTERY
$1.74¢869
1
#13
50352-GS6-000
RUBBER, LINK STOPPER
$5.47¢2 738
1
#14
77212-965-000
RUBBER, SEAT SIDE
$5.99¢2 994
1
#15
80101-310-000
RUBBER, RR. FENDER CUSHION
$2.63¢1 313
1
#16
80104-065-000
COLLAR, TAILLIGHT
$3.65¢1 825
1
#17
80114-KG7-000
COLLAR, RR. FENDER
$5.51¢2 756
1
#18
80115-MFW-A00
FENDER ASSY. A, RR.
$36.73¢18 363
1
#19
80132-MFW-A00
STAY, Rear FENDER
$355.25¢177 625
1
#20
90118-MR1-000
SCREW, PAN (6X14)
$3.75¢1 875
1
#21
90124-MY6-670
SCREW, PAN (6X13)
$3.36¢1 681
1
#22
90473-896-000
WASHER (6MM)
$2.48¢1 238
1
#23
90502-GG2-000
COLLAR, RR. FENDER
$6.96¢3 481
1
#24
93901-24480
SCREW, TAPPING (4X16)
$1.06¢531
1
#25
93901-347G0
SCREW, TAPPING (4X30)
$2.85¢1 425
1
#26
94050-05000
NUT, FLANGE (5MM)
$1.68¢838
1
#27
94050-05070
NUT, FLANGE (5MM)
$1.66¢831
1
#28
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#29
94103-06000
WASHER, PLAIN (6MM)
$1.27¢638
1
#30
95701-06016-00
BOLT, FLANGE (6X16)
$2.09¢1 044
1
