CYLINDER BLOCK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

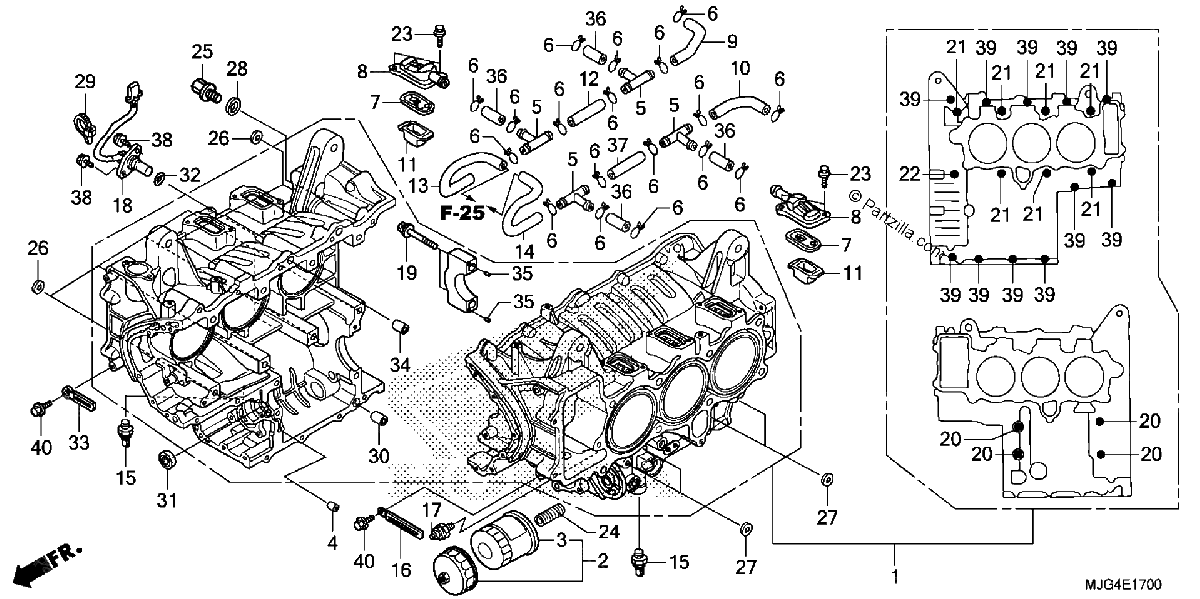

Diagrama de CYLINDER BLOCK

Repuestos

#1
11000-MCA-S40
BLOCK Assembly., CYLINDER
$3973.61¢1 986 803
1
#001
11000-MCA-S40
BLOCK Assembly., CYLINDER
$3973.61¢1 986 803
1
#002
15010-MCE-H51
FILTER SET, OIL
$21.21¢10 603
1
#2
15010-MCE-H51
FILTER SET, OIL
$21.21¢10 603
1
#002
15010-MKR-305
FILTER SET, OIL
$21.21¢10 603
1
#003
15410-MFJ-D01
FILTER, OIL (TOYO ROKI)
$16.54¢8 269
1
#3
15410-MFJ-D01
FILTER, OIL (TOYO ROKI)
$16.54¢8 269
1
#003
15410-MFJ-D02
FILTER, OIL (WAKO FILTER)
$16.54¢8 269
1
#4
15515-MCA-000
ORIFICE (2.3MM)
$5.88¢2 938
1
#004
15515-MCA-000
ORIFICE (2.3MM)
$5.88¢2 938
1
#5
15772-KK0-000
JOINT, BREATHER THREE WAY
$14.36¢7 182
1
#005
15772-KK0-000
JOINT, BREATHER THREE WAY
$14.36¢7 182
1
#006
17316-611-000
CLIP, BREATHER TUBE
$9.92¢4 962
1
#6
17316-611-000
CLIP, BREATHER TUBE
$9.92¢4 962
1
#7
18601-KGB-611
VALVE, REED
$31.39¢15 698
1
#007
18601-KGB-611
VALVE, REED
$31.39¢15 698
1
#008
18612-MBA-601
COVER, REED VALVE
$17.12¢8 562
1
#8
18612-MBA-601
COVER, REED VALVE
$17.12¢8 562
1
#009
18651-MCA-780
TUBE, R. AIR IN.
$10.82¢5 411
1
#9
18651-MCA-780
TUBE, R. AIR IN.
$10.82¢5 411
1
#010
18652-MCA-000
TUBE, L. AIR IN.
$8.02¢4 008
1
#10
18652-MCA-000
TUBE, L. AIR IN.
$8.02¢4 008
1
#11
18653-MCA-000
PLATE, AIR IN.
$3.98¢1 989
1
#011
18653-MCA-000
PLATE, AIR IN.
$3.98¢1 989
1
#12
18655-MCA-000
TUBE (12X62)
$4.04¢2 018
1
#012
18655-MCA-000
TUBE (12X62)
$4.04¢2 018
1
#13
18662-MCA-A60
TUBE, R. AIR IN.
$11.21¢5 606
1
#013
18662-MCA-A60
TUBE, R. AIR IN.
$11.21¢5 606
1
#014
18663-MCA-A60
TUBE, L. AIR IN.
$9.44¢4 721
1
#14
18663-MCA-A60
TUBE, L. AIR IN.
$9.44¢4 721
1
#15
30530-MCA-003
SENSOR ASSY., KNOCK
$155.54¢77 769
1
#015
30530-MCA-003
SENSOR ASSY., KNOCK
$155.54¢77 769
1
#16
32170-443-850
CLIP, WIRE HARNESS
$6.09¢3 048
1
#016
32170-443-850
CLIP, WIRE HARNESS
$6.09¢3 048
1
#017
35500-MJ4-024
SWITCH Assembly., OIL PRESSURE (DENSO)
$45.33¢22 667
1
#17
35500-MJ4-024
SWITCH Assembly., OIL PRESSURE (DENSO)
$45.33¢22 667
1
#18
37700-MCA-A61
SENSOR ASSY., SPEED
$165.05¢82 524
1
#018
37700-MCA-A61
SENSOR ASSY., SPEED
$165.05¢82 524
1
#19
90003-MEC-000
BOLT, UBS (12X77.5)
$6.61¢3 306
1
#019
90003-MEC-000
BOLT, UBS (12X77.5)
$6.61¢3 306
1
#20
90006-MM5-640
BOLT, FLANGE (8X135)
$7.97¢3 985
1
#020
90006-MM5-640
BOLT, FLANGE (8X135)
$7.97¢3 985
1
#021
90009-371-015
BOLT, FLANGE (10X120) (SATO)
$11.44¢5 721
1
#21
90009-371-015
BOLT, FLANGE (10X120) (SATO)
$11.44¢5 721
1
#022
90011-MCA-780
BOLT, FLANGE (10X197)
$11.86¢5 928
1
#22
90011-MCA-780
BOLT, FLANGE (10X197)
$11.86¢5 928
1
#23
90012-896-750
BOLT, FLANGE (5X14)
$1.41¢707
1
#023
90012-896-750
BOLT, FLANGE (5X14)
$1.41¢707
1
#24
90019-MB0-000
BOSS, OIL FILTER
$9.27¢4 635
1
#024
90019-MB0-000
BOSS, OIL FILTER
$9.27¢4 635
1
#25
90131-ZE1-000
BOLT, DRAIN PLUG
$2.74¢1 368
1
#025
90131-ZE1-000
BOLT, DRAIN PLUG
$2.74¢1 368
1
#26
90438-463-000
WASHER, SPECIAL (11X21X2.3)
$3.15¢1 576
1
#026
90438-463-000
WASHER, SPECIAL (11X21X2.3)
$3.15¢1 576
1
#27
90441-MG8-000
WASHER, SEALING (8MM)
$2.69¢1 346
1
#027
90441-MG8-000
WASHER, SEALING (8MM)
$2.69¢1 346
1
#028
90443-MJ6-000
WASHER, NEUTRAL
$2.28¢1 138
1
#28
90443-MJ6-000
WASHER, NEUTRAL
$2.28¢1 138
1
#29
90652-KT1-771
BAND, WIRE (BLACK)
$4.99¢2 496
1
#029
90652-KT1-771
BAND, WIRE (BLACK)
$4.99¢2 496
1
#030
90702-371-000
COLLAR (15X20)
$6.96¢3 479
1
#30
90702-371-000
COLLAR (15X20)
$6.96¢3 479
1
#031
91204-MB0-013
OIL SEAL (8X25X8) (ARAI)
$4.52¢2 260
1
#31
91204-MB0-013
OIL SEAL (8X25X8) (ARAI)
$4.52¢2 260
1
#032
91302-MAL-601
O-RING (18.1X3.6)
$3.93¢1 967
1
#32
91302-MAL-601
O-RING (18.1X3.6)
$3.93¢1 967
1
#33
91410-KT7-000
CLIP (4X60)
$5.96¢2 978
1
#033
91410-KT7-000
CLIP (4X60)
$5.96¢2 978
1
#034
94301-12200
PIN, DOWEL (12X20)
$2.71¢1 357
1
#34
94301-12200
PIN, DOWEL (12X20)
$2.71¢1 357
1
#035
94303-04065
PIN C, DOWEL (4X6.5)
$2.53¢1 265
1
#35
94303-04065
PIN C, DOWEL (4X6.5)
$2.53¢1 265
1
#36
95005-12001-10M
BULK HOSE, VACUUM (12X1000) (12X70)
$76.01¢38 007
1
#036
95005-12001-10M
BULK HOSE, VACUUM (12X1000) (12X70)
$76.01¢38 007
1
#37
95005-12001-10M
BULK HOSE, VACUUM (12X1000) (12X70)
$76.01¢38 007
1
#037
95005-12001-10M
BULK HOSE, VACUUM (12X1000) (12X70)
$76.01¢38 007
1
#38
95701-06016-00
BOLT, FLANGE (6X16)
$1.92¢960
1
#038
95701-06016-00
BOLT, FLANGE (6X16)
$1.92¢960
1
#39
95701-06035-00
BOLT, FLANGE (6X35)
$2.22¢1 110
1
#039
95701-06035-00
BOLT, FLANGE (6X35)
$2.22¢1 110
1
#40
96001-06012-00
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#040
96001-06012-00
BOLT, FLANGE (6X12)
$2.13¢1 064
1
