COWL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

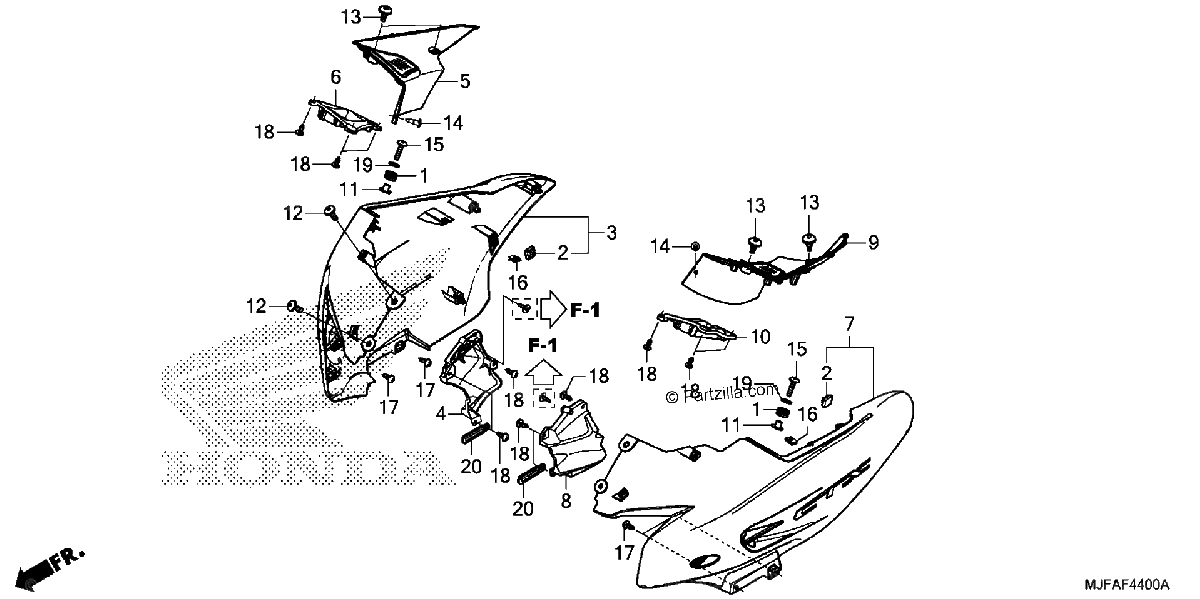

Diagrama de COWL

Repuestos

#001
33712-KT1-670
RUBBER, TAILLIGHT
$4.99¢2 496
1
#1
33712-KT1-670
RUBBER, TAILLIGHT
$4.99¢2 496
1
#2
64165-MJF-A30
FASTENER B, DUAL LOCK (20X20)
$4.22¢2 110
1
#002
64165-MJF-A30
FASTENER B, DUAL LOCK (20X20)
$4.22¢2 110
1
#3
64300-MJF-A30ZA
COWL, Right Front SIDE (TYPE3) (WL)
$428.16¢214 078
1
#003
64300-MJF-A30ZA
COWL, Right Front SIDE (TYPE3) (WL)
$428.16¢214 078
1
#3
64300-MJF-A30ZC
COWL, Right Front SIDE (TYPE1) (WL)
$428.16¢214 078
1
#003
64300-MJF-A30ZC
COWL, Right Front SIDE (TYPE1) (WL)
$428.16¢214 078
1
#4
64312-MJF-A30
PANEL, Right. (INNER)
$7.99¢3 996
1
#004
64312-MJF-A30
PANEL, Right. (INNER)
$7.99¢3 996
1
#5
64340-MJF-A30
COVER, R. (INNER)
$81.12¢40 561
1
#005
64340-MJF-A30
COVER, R. (INNER)
$81.12¢40 561
1
#006
64341-MJF-A30
PANEL, R. (UPPER) (INNER)
$9.35¢4 675
1
#6
64341-MJF-A30
PANEL, R. (UPPER) (INNER)
$9.35¢4 675
1
#7
64350-MJF-A30ZA
COWL, L Front SIDE (TYPE3) (WL)
$367.02¢183 511
1
#007
64350-MJF-A30ZA
COWL, L Front SIDE (TYPE3) (WL)
$367.02¢183 511
1
#7
64350-MJF-A30ZC
COWL, L Front SIDE (TYPE1) (WL)
$367.00¢183 500
1
#007
64350-MJF-A30ZC
COWL, L Front SIDE (TYPE1) (WL)
$367.00¢183 500
1
#8
64362-MJF-A30
PANEL, Left (INNER)
$5.09¢2 547
1
#008
64362-MJF-A30
PANEL, Left (INNER)
$5.09¢2 547
1
#9
64390-MJF-A30
COVER, Left (INNER)
$113.50¢56 753
1
#009
64390-MJF-A30
COVER, Left (INNER)
$113.50¢56 753
1
#10
64391-MJF-A30
PANEL, Left (UPPER) (INNER)
$9.35¢4 675
1
#010
64391-MJF-A30
PANEL, Left (UPPER) (INNER)
$9.35¢4 675
1
#11
84706-163-670
COLLAR, TAILLIGHT MOUNTING
$4.55¢2 277
1
#011
84706-163-670
COLLAR, TAILLIGHT MOUNTING
$4.55¢2 277
1
#012
90155-MGE-000
BOLT, SPECIAL (6X18)
$3.89¢1 943
1
#12
90155-MGE-000
BOLT, SPECIAL (6X18)
$3.89¢1 943
1
#013
90114-MGE-000
SCREW, SPECIAL (5X11)
$3.07¢1 535
1
#13
90114-MGE-000
SCREW, SPECIAL (5X11)
$3.07¢1 535
1
#014
90116-SP0-003
CLIP, BUMPER SEAL
$5.27¢2 633
1
#14
90116-SP0-003
CLIP, BUMPER SEAL
$5.27¢2 633
1
#015
90120-MEL-000
SCREW, PAN (5X20)
$2.32¢1 162
1
#15
90120-MEL-000
SCREW, PAN (5X20)
$2.32¢1 162
1
#16
90677-KAN-961
NUT, CLIP (5MM)
$4.54¢2 271
1
#016
90677-KAN-961
NUT, CLIP (5MM)
$4.54¢2 271
1
#017
93903-24280
SCREW, TAPPING (4X10)
$1.60¢799
1
#17
93903-24280
SCREW, TAPPING (4X10)
$1.60¢799
1
#18
93903-24380
SCREW, TAPPING (4X12)
$1.07¢535
1
#018
93903-24380
SCREW, TAPPING (4X12)
$1.07¢535
1
#19
94103-06800
WASHER, PLAIN (6MM)
$0.92¢460
1
#019
94103-06800
WASHER, PLAIN (6MM)
$0.92¢460
1
#20
90105-727-000
CLIP (2X50)
$3.58¢1 788
1
#020
90105-727-000
CLIP (2X50)
$3.58¢1 788
1
