FRONT WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

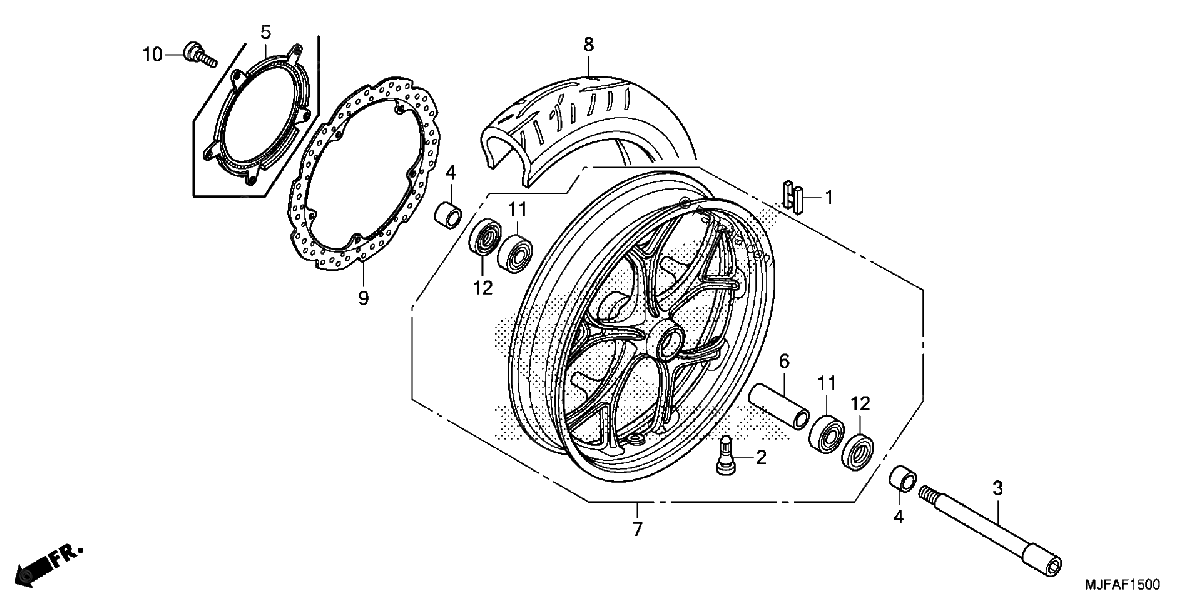

Diagrama de FRONT WHEEL

Repuestos

#1
42704-MER-D00
WEIGHT, BALANCE (10G)
$10.04¢5 020
1
#001
42704-MER-D00
WEIGHT, BALANCE (10G)
$10.04¢5 020
1
#1
42705-MER-D00
WEIGHT, BALANCE (20G)
$20.62¢10 310
1
#001
42705-MER-D00
WEIGHT, BALANCE (20G)
$20.62¢10 310
1
#001
42706-MER-D00
WEIGHT, BALANCE (30G)
$20.32¢10 160
1
#1
42706-MER-D00
WEIGHT, BALANCE (30G)
$20.32¢10 160
1
#2
42753-ML7-003
VALVE, RIM (BS)
$13.60¢6 802
1
#002
42753-ML7-003
VALVE, RIM (BS)
$13.60¢6 802
1
#2
42753-MCF-008
VALVE, RIM (PIRELLI)
$8.61¢4 307
1
#002
42753-MCF-008
VALVE, RIM (PIRELLI)
$8.61¢4 307
1
#3
44301-MGS-D30
AXLE, Front WHEEL
$63.01¢31 504
1
#003
44301-MGS-D30
AXLE, Front WHEEL
$63.01¢31 504
1
#004
44311-MGS-D10
COLLAR, FR. WHEEL SIDE
$19.31¢9 654
1
#4
44311-MGS-D10
COLLAR, FR. WHEEL SIDE
$19.31¢9 654
1
#006
44620-MGS-D10
COLLAR, FR. AXLE DISTANCE
$17.22¢8 608
1
#6
44620-MGS-D10
COLLAR, FR. AXLE DISTANCE
$17.22¢8 608
1
#007
44650-MGS-D11
WHEEL SUB-Assembly., Front.
$952.02¢476 008
1
#007
44650-MGS-316
WHEEL SUB-Assembly., Front. (COO)
$952.02¢476 008
1
#007
44650-MGS-306
WHEEL SUB-ASSY., FR. (COO)
$952.02¢476 008
1
#7
44650-MGS-306
WHEEL SUB-ASSY., FR. (COO)
$952.02¢476 008
1
#008
44711-MGS-D34
TIRE, Front. (120/70ZR17) (M/C 58W) (METZELER)
No Disponible
1
#008
44711-MGS-D37
TIRE, Front
$200.63¢100 315
1
#008
44711-MGS-D35
TIRE, Front. (120/70ZR17) (M/C 58W) (BS)
$200.63¢100 315
1
#008
44711-MGS-D36
TIRE, Front. (120/70ZR17) (M/C 58W) (METZELER)
$195.42¢97 710
1
#008
44711-MGS-D33
TIRE, Front. (120/70ZR17) (M/C 58W) (METZELER)
$195.42¢97 710
1
#8
44711-MGS-D32
TIRE, Front. (120/70ZR17) (M/C 58W) (BS)
$200.63¢100 315
1
#008
44711-MGS-D32
TIRE, Front. (120/70ZR17) (M/C 58W) (BS)
$200.63¢100 315
1
#8
44711-MGS-D31
TIRE, FR. (120/70ZR17) (M/C 58W) (METZELER)
$195.42¢97 710
1
#008
44711-MGS-D31
TIRE, FR. (120/70ZR17) (M/C 58W) (METZELER)
$195.42¢97 710
1
#9
45251-MGS-D31
DISK, Front BRAKE (SUNSTAR)
$629.20¢314 600
1
#009
45251-MGS-D31
DISK, Front BRAKE (SUNSTAR)
$629.20¢314 600
1
#010
90105-MGS-D30
BOLT, DISK (8X25)
$3.36¢1 679
1
#10
90105-MGS-D30
BOLT, DISK (8X25)
$3.36¢1 679
1
#11
91053-MGS-D31
BEARING, RADIAL BALL (6204UU)
$13.90¢6 952
1
#011
91053-MGS-D31
BEARING, RADIAL BALL (6204UU)
$13.90¢6 952
1
#12
91252-MC4-013
OIL SEAL (28X47.2X7) (ARAI)
$7.77¢3 887
1
#012
91252-MC4-013
OIL SEAL (28X47.2X7) (ARAI)
$7.77¢3 887
1
