FRONT WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

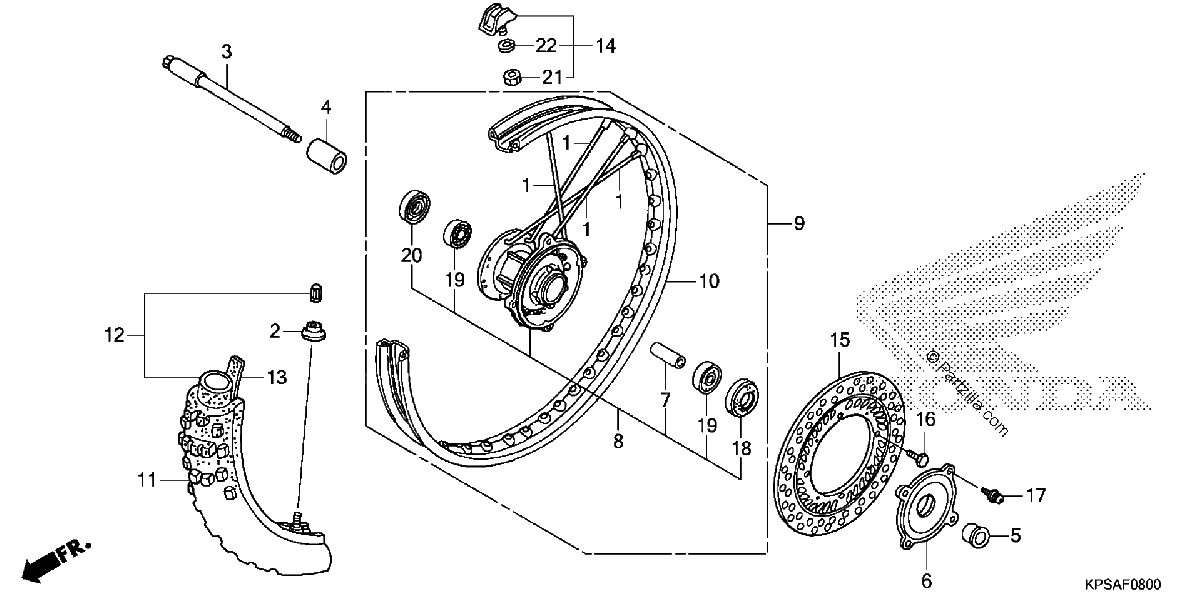

Diagrama de FRONT WHEEL

Repuestos

#1
06441-KPS-730
SPOKE SET, FR.
$10.00¢5 000
1
#2
42714-KA3-710
CAP, VALVE
$12.15¢6 075
1
#3
44301-KPS-900
AXLE, FR. WHEEL
$33.54¢16 769
1
#4
44311-KPS-900
COLLAR, FR. WHEEL
$6.29¢3 144
1
#5
44312-KPS-900
COLLAR, FR. WHEEL
$4.45¢2 225
1
#6
44610-KL3-770
COVER, FR. HUB
$14.20¢7 100
1
#7
44620-KPS-900
COLLAR, FR. AXLE DISTANCE
$4.86¢2 431
1
#8
44635-KPS-730
HUB SUB-ASSY., FR.
$190.96¢95 481
1
#8
44635-KPS-900
HUB SUB-ASSY., FR.
$190.96¢95 481
1
#9
44650-KPS-305
WHEEL SUB-ASSY., FR. (COO)
$932.48¢466 238
1
#10
44701-KPS-902
RIM, FR. WHEEL
$339.84¢169 919
1
#11
44711-KPS-902
TIRE, FR. (80/100-21 51R NHS) (PIRELLI)
$381.63¢190 813
1
#12
44712-MAN-622
TUBE, TIRE (MA-21) (PIRELLI)
$61.05¢30 525
1
#13
44713-KW8-901
FLAP, TIRE (1.40-21) (PIRELLI)
$3.93¢1 963
1
#14
44715-MA0-770
STOPPER, BEAD (1.60)
$42.71¢21 356
1
#15
45351-KPS-900
DISK, FR. BRAKE
$168.26¢84 131
1
#16
90105-KAE-870
BOLT, DISK (6X17)
$3.65¢1 825
1
#17
90204-KPS-900
SCREW-WASHER (4X8)
$0.99¢494
1
#18
90755-229-003
OIL SEAL (21X37X7) (ARAI)
$6.13¢3 063
1
#18
90755-229-005
OIL SEAL (21X37X7) (NOK)
$6.13¢3 063
1
#18
90755-KGA-K00
OIL SEAL (21X37X7) (SABO)
$6.13¢3 063
1
#19
91014-KPS-731
BEARING, RADIAL BALL (6202U) (FUJIKOSHI)
$12.60¢6 300
1
#19
91014-KPS-732
BEARING, RADIAL BALL (6202U) (NSK)
$14.81¢7 406
1
#19
96140-62020-10
BEARING, RADIAL BALL (6202U)
$12.60¢6 300
1
#20
91254-KA3-831
DUST SEAL (22X50X5) (NOK)
$10.76¢5 381
1
#21
94001-08000-0S
NUT, HEX. (8MM)
$1.68¢838
1
#22
94111-08000
WASHER, SPRING (8MM)
$1.21¢606
1
