TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

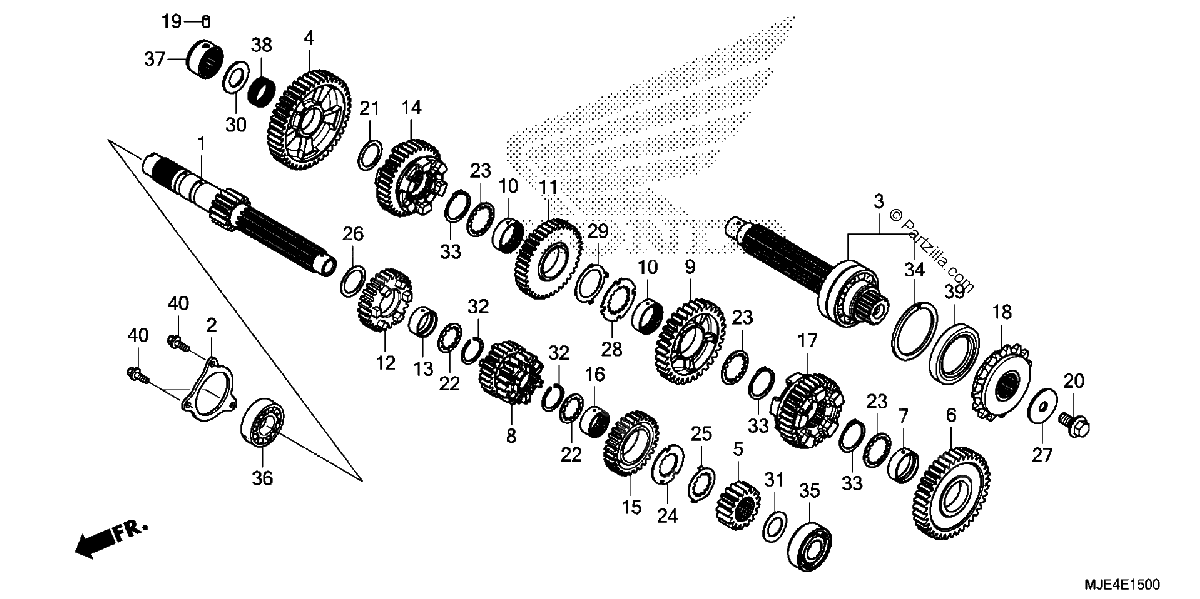

Diagrama de TRANSMISSION

Repuestos

#001
23211-MJE-D00
MAINSHAFT (14T)
$93.46¢46 731
1
#1
23211-MJE-D00
MAINSHAFT (14T)
$93.46¢46 731
1
#002
23212-MJE-D00
PLATE, BEARING SETTING
$9.40¢4 700
1
#2
23212-MJE-D00
PLATE, BEARING SETTING
$9.40¢4 700
1
#003
23220-MJE-D00
COUNTERSHAFT
$206.29¢103 144
1
#3
23220-MJE-D00
COUNTERSHAFT
$206.29¢103 144
1
#004
23421-MJE-D00
GEAR, COUNTER FIRST (43T)
$57.89¢28 944
1
#4
23421-MJE-D00
GEAR, COUNTER FIRST (43T)
$57.89¢28 944
1
#5
23431-MJE-D00
GEAR, MAINSHAFT SECOND (17T)
$58.01¢29 006
1
#005
23431-MJE-D00
GEAR, MAINSHAFT SECOND (17T)
$58.01¢29 006
1
#6
23441-MJE-D00
GEAR, COUNTERSHAFT SECOND (38T)
$70.43¢35 213
1
#006
23441-MJE-D00
GEAR, COUNTERSHAFT SECOND (38T)
$70.43¢35 213
1
#007
23442-MS2-610
COLLAR (30X11.2)
$30.55¢15 275
1
#7
23442-MS2-610
COLLAR (30X11.2)
$30.55¢15 275
1
#8
23451-MJE-D00
GEAR, MAINSHAFT THIRD & FOURTH(18T/25T)
$92.17¢46 088
1
#008
23451-MJE-D00
GEAR, MAINSHAFT THIRD & FOURTH(18T/25T)
$92.17¢46 088
1
#9
23461-MJE-D00
GEAR, COUNTERSHAFT THIRD (32T)
$60.74¢30 369
1
#009
23461-MJE-D00
GEAR, COUNTERSHAFT THIRD (32T)
$60.74¢30 369
1
#10
23462-MAT-000
COLLAR, SPLINE (30X11)
$29.61¢14 806
1
#010
23462-MAT-000
COLLAR, SPLINE (30X11)
$29.61¢14 806
1
#11
23481-MJE-D00
GEAR, COUNTERSHAFT FOURTH (38T)
$47.11¢23 556
1
#011
23481-MJE-D00
GEAR, COUNTERSHAFT FOURTH (38T)
$47.11¢23 556
1
#12
23491-MJE-D00
GEAR, MAINSHAFT FIFTH (27T)
$51.22¢25 612
1
#012
23491-MJE-D00
GEAR, MAINSHAFT FIFTH (27T)
$51.22¢25 612
1
#13
23492-MGZ-J00
COLLAR (25X28X12)
$17.24¢8 619
1
#013
23492-MGZ-J00
COLLAR (25X28X12)
$17.24¢8 619
1
#014
23501-MJE-D00
GEAR, COUNTERSHAFT FIFTH (36T)
$84.84¢42 419
1
#14
23501-MJE-D00
GEAR, COUNTERSHAFT FIFTH (36T)
$84.84¢42 419
1
#15
23511-MJE-D00
GEAR, MAINSHAFT SIXTH (28T)
$53.89¢26 944
1
#015
23511-MJE-D00
GEAR, MAINSHAFT SIXTH (28T)
$53.89¢26 944
1
#016
23512-MV9-670
COLLAR, SPLINE (25X28X13)
$34.91¢17 456
1
#16
23512-MV9-670
COLLAR, SPLINE (25X28X13)
$34.91¢17 456
1
#17
23521-MJE-D00
GEAR, COUNTERSHAFT SIXTH (34T)
$95.74¢47 869
1
#017
23521-MJE-D00
GEAR, COUNTERSHAFT SIXTH (34T)
$95.74¢47 869
1
#18
23801-MJE-D00
SPROCKET, DRIVE (15T)
$95.41¢47 706
1
#018
23801-MJE-D00
SPROCKET, DRIVE (15T)
$95.41¢47 706
1
#19
24261-283-000
PIN, GEARSHIFT FORK GUIDE
$5.11¢2 556
1
#019
24261-283-000
PIN, GEARSHIFT FORK GUIDE
$5.11¢2 556
1
#020
90037-422-003
BOLT, SPECIAL (10MM)
$8.89¢4 444
1
#20
90037-422-003
BOLT, SPECIAL (10MM)
$8.89¢4 444
1
#21
90402-HA5-000
WASHER, THRUST (24MM)
$4.44¢2 219
1
#021
90402-HA5-000
WASHER, THRUST (24MM)
$4.44¢2 219
1
#022
90451-KY2-000
WASHER, SPLINE (25X31X1.5)
$4.63¢2 313
1
#22
90451-KY2-000
WASHER, SPLINE (25X31X1.5)
$4.63¢2 313
1
#23
90452-MAT-000
WASHER, SPLINE (30X36X1.5)
$4.24¢2 119
1
#023
90452-MAT-000
WASHER, SPLINE (30X36X1.5)
$4.24¢2 119
1
#24
90454-KYJ-900
WASHER, SPLINE (25X42X1.6)
$1.90¢950
1
#024
90454-KYJ-900
WASHER, SPLINE (25X42X1.6)
$1.90¢950
1
#25
90455-KYJ-900
WASHER, LOCK (25MM)
$40.38¢20 188
1
#025
90455-KYJ-900
WASHER, LOCK (25MM)
$40.38¢20 188
1
#26
90456-MA6-000
WASHER, THRUST (25MM)
$3.26¢1 631
1
#026
90456-MA6-000
WASHER, THRUST (25MM)
$3.26¢1 631
1
#27
90459-438-000
WASHER (10.2MM)
$7.08¢3 538
1
#027
90459-438-000
WASHER (10.2MM)
$7.08¢3 538
1
#028
90463-MAT-000
WASHER, SPLINE (30MM)
$5.88¢2 938
1
#28
90463-MAT-000
WASHER, SPLINE (30MM)
$5.88¢2 938
1
#029
90464-MAT-000
WASHER, LOCK (30MM)
$8.65¢4 325
1
#29
90464-MAT-000
WASHER, LOCK (30MM)
$8.65¢4 325
1
#30
90469-759-000
SHIM J, FINAL REDUCTION THIRD GEAR (2.0MM)
$8.30¢4 150
1
#030
90469-759-000
SHIM J, FINAL REDUCTION THIRD GEAR (2.0MM)
$8.30¢4 150
1
#31
90554-MEL-000
WASHER, THRUST (20MM)
$2.48¢1 238
1
#031
90554-MEL-000
WASHER, THRUST (20MM)
$2.48¢1 238
1
#032
90601-107-000
CIRCLIP (25MM)
$4.54¢2 269
1
#32
90601-107-000
CIRCLIP (25MM)
$4.54¢2 269
1
#33
90604-MM5-000
CIRCLIP (30MM)
$5.42¢2 713
1
#033
90604-MM5-000
CIRCLIP (30MM)
$5.42¢2 713
1
#034
90606-MM5-000
RING, SNAP (62MM)
$11.15¢5 575
1
#34
90606-MM5-000
RING, SNAP (62MM)
$11.15¢5 575
1
#35
91001-464-003
BEARING, RADIAL BALL (6204U) (TOYO)
$29.80¢14 900
1
#035
91001-464-003
BEARING, RADIAL BALL (6204U) (TOYO)
$29.80¢14 900
1
#036
91004-MFJ-D01
BEARING, BALL (6305)
$22.21¢11 106
1
#36
91004-MFJ-D01
BEARING, BALL (6305)
$22.21¢11 106
1
#37
91022-KT7-003
BEARING, NEEDLE (20MM) (NTN)
$56.28¢28 138
1
#037
91022-KT7-003
BEARING, NEEDLE (20MM) (NTN)
$56.28¢28 138
1
#037
91022-MJE-DB1
BEARING, NEEDLE (20MM) (NTN)
$56.28¢28 138
1
#038
91026-MJE-D01
BEARING, NEEDLE (24X28X10) (SPL)
$17.64¢8 819
1
#38
91026-MJE-D01
BEARING, NEEDLE (24X28X10) (SPL)
$17.64¢8 819
1
#39
91207-MAL-601
OIL SEAL (40X62X8.4)
$15.67¢7 837
1
#039
91207-MAL-601
OIL SEAL (40X62X8.4)
$15.67¢7 837
1
#040
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
#40
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
