FRONT COWL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

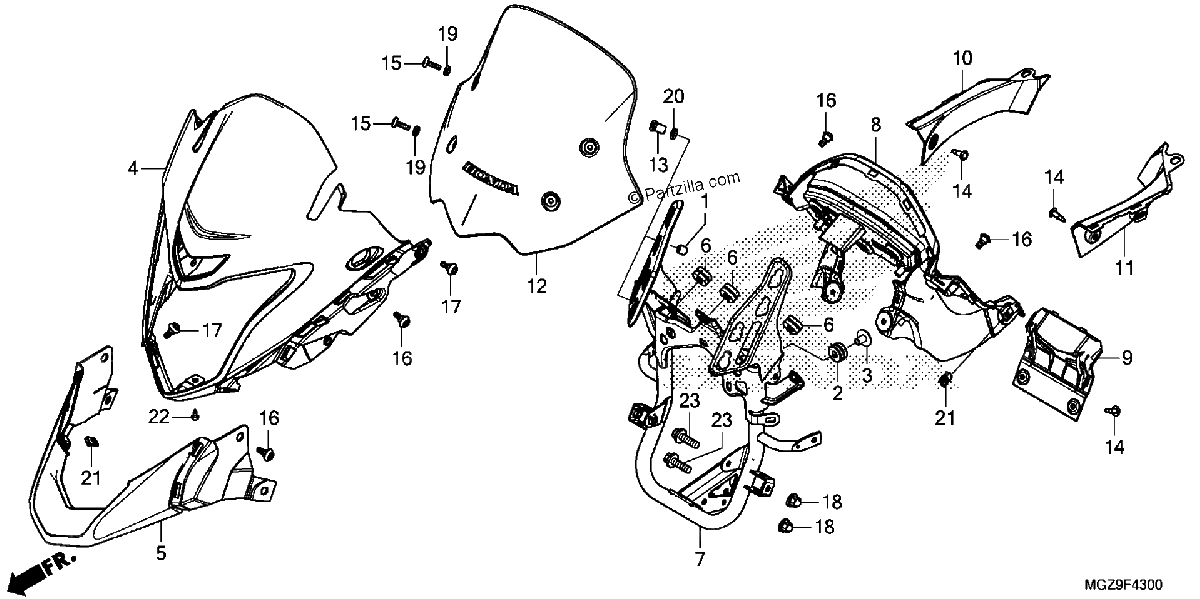

Diagrama de FRONT COWL

Repuestos

#1
12372-KGB-610
RUBBER B, HEAD SIDE COVER
$2.73¢1 363
1
#001
12372-KGB-610
RUBBER B, HEAD SIDE COVER
$2.73¢1 363
1
#2
17245-107-010
RUBBER, AIR CLEANER HOUSING MOUNTING
$3.65¢1 825
1
#002
17245-107-010
RUBBER, AIR CLEANER HOUSING MOUNTING
$3.65¢1 825
1
#003
40521-437-000
COLLAR, CHAIN CASE TAIL
$6.13¢3 063
1
#3
40521-437-000
COLLAR, CHAIN CASE TAIL
$6.13¢3 063
1
#4
64130-MGZ-J80
COVER, Front. (UPPER)
$32.06¢16 031
1
#004
64130-MGZ-J80
COVER, Front. (UPPER)
$32.06¢16 031
1
#005
64150-MGZ-J80
COVER, FR. (LOWER)
$17.50¢8 750
1
#5
64150-MGZ-J80
COVER, FR. (LOWER)
$17.50¢8 750
1
#6
64216-GJ2-730
RUBBER, SCREEN SETTING
$5.42¢2 713
1
#006
64216-GJ2-730
RUBBER, SCREEN SETTING
$5.42¢2 713
1
#007
64221-MGZ-J80
STAY, FR. COWL (UPPER)
$187.95¢93 975
1
#7
64221-MGZ-J80
STAY, FR. COWL (UPPER)
$187.95¢93 975
1
#008
64260-MGZ-J80
PANEL, METER
$10.95¢5 475
1
#8
64260-MGZ-J80
PANEL, METER
$10.95¢5 475
1
#9
64261-MGZ-J80
LID, POSITION BULB
$2.91¢1 456
1
#009
64261-MGZ-J80
LID, POSITION BULB
$2.91¢1 456
1
#10
64270-MGZ-J80
PANEL, Right. (INNER)
$3.65¢1 825
1
#010
64270-MGZ-J80
PANEL, Right. (INNER)
$3.65¢1 825
1
#010
64270-MGZ-J81
PANEL, R. (INNER)
$3.65¢1 825
1
#10
64270-MGZ-J81
PANEL, R. (INNER)
$3.65¢1 825
1
#11
64280-MGZ-J81
PANEL, L. (INNER)
$3.65¢1 825
1
#011
64280-MGZ-J81
PANEL, L. (INNER)
$3.65¢1 825
1
#011
64280-MGZ-J80
PANEL, L. (INNER)
$3.65¢1 825
1
#11
64280-MGZ-J80
PANEL, L. (INNER)
$3.65¢1 825
1
#012
67110-MGZ-306ZA
WINDSCREEN SET (TYPE1) (WL)(COO)
$524.58¢262 288
1
#12
67110-MGZ-306ZA
WINDSCREEN SET (TYPE1) (WL)(COO)
$524.58¢262 288
1
#13
90111-KW3-003
NUT, COWL SETTING (5MM)
$5.47¢2 738
1
#013
90111-KW3-003
NUT, COWL SETTING (5MM)
$5.47¢2 738
1
#014
90116-MCS-G00
RIVET, PUSH
$1.79¢894
1
#14
90116-MCS-G00
RIVET, PUSH
$1.79¢894
1
#015
90117-MGZ-J80
SCREW, PAN (5X20)
$1.16¢581
1
#15
90117-MGZ-J80
SCREW, PAN (5X20)
$1.16¢581
1
#016
90133-KPP-T00
SCREW, PAN (6X14)
$1.64¢819
1
#16
90133-KPP-T00
SCREW, PAN (6X14)
$1.64¢819
1
#17
90134-KPP-T00
SCREW, PAN (5X14)
$1.23¢613
1
#017
90134-KPP-T00
SCREW, PAN (5X14)
$1.23¢613
1
#018
90443-KTM-970
NUT, CAP (8MM)
$0.99¢494
1
#18
90443-KTM-970
NUT, CAP (8MM)
$0.99¢494
1
#19
90504-964-000
WASHER, THRUST (5MM)
$2.44¢1 219
1
#019
90504-964-000
WASHER, THRUST (5MM)
$2.44¢1 219
1
#020
90507-ZV1-000
WASHER, NYLON (9MM)
$2.46¢1 231
1
#20
90507-ZV1-000
WASHER, NYLON (9MM)
$2.46¢1 231
1
#21
90677-KAN-T00
NUT, CLIP (5MM)
$0.83¢413
1
#021
90677-KAN-T00
NUT, CLIP (5MM)
$0.83¢413
1
#22
93903-24180
SCREW, TAPPING (4X8)
$1.06¢531
1
#022
93903-24180
SCREW, TAPPING (4X8)
$1.06¢531
1
#023
95801-08032-00
BOLT, FLANGE (8X32)
$2.66¢1 331
1
#23
95801-08032-00
BOLT, FLANGE (8X32)
$2.66¢1 331
1
