HANDLEBAR TOP BRIDGE 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

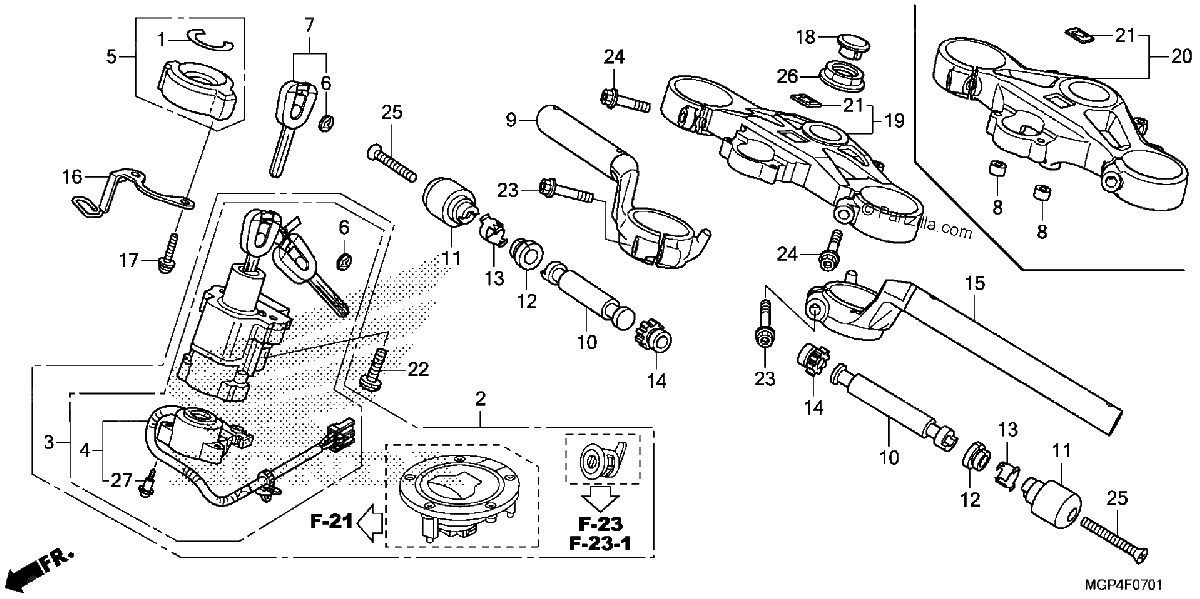

Diagrama de HANDLEBAR TOP BRIDGE 2

Repuestos

#1
30433-MBW-602
SEAL, IGNITION SWITCH
$3.65¢1 825
1
#001
30433-MBW-602
SEAL, IGNITION SWITCH
$3.65¢1 825
1
#2
35010-MGP-A93
LOCK SET
$549.01¢274 506
1
#002
35010-MGP-A93
LOCK SET
$549.01¢274 506
1
#002
35010-MGP-A97
LOCK SET
$549.01¢274 506
1
#003
35100-MGP-A93
SWITCH ASSY., COMBINATION LOCK (MSDS)
$239.01¢119 506
1
#3
35100-MGP-A93
SWITCH ASSY., COMBINATION LOCK (MSDS)
$239.01¢119 506
1
#003
35100-MGP-A94
SWITCH Assembly.
$239.01¢119 506
1
#004
35101-MFL-641
BASE, CONTACT
$102.60¢51 300
1
#4
35101-MFL-641
BASE, CONTACT
$102.60¢51 300
1
#5
35106-MAT-A00
COVER, COMBINATION SWITCH
$12.21¢6 106
1
#005
35106-MAT-A00
COVER, COMBINATION SWITCH
$12.21¢6 106
1
#6
35113-MGP-000
EMBLEM, KEY
$5.88¢2 938
1
#006
35113-MGP-000
EMBLEM, KEY
$5.88¢2 938
1
#007
35121-MGP-A93
KEY, BLANK
$27.19¢13 594
1
#7
35121-MGP-A93
KEY, BLANK
$27.19¢13 594
1
#009
53100-MGP-305
HANDLEBAR, R. (COO)
$248.52¢124 262
1
#9
53100-MGP-305
HANDLEBAR, R. (COO)
$248.52¢124 262
1
#009
53100-MGP-D60
HANDLEBAR, Right.
$248.52¢124 262
1
#010
53105-KV3-000
WEIGHT B, HANDLEBAR
$20.23¢10 113
1
#10
53105-KV3-000
WEIGHT B, HANDLEBAR
$20.23¢10 113
1
#11
53105-MEE-940
WEIGHT, HANDLEBAR
$20.85¢10 425
1
#011
53105-MEE-940
WEIGHT, HANDLEBAR
$20.85¢10 425
1
#012
53107-MJ0-000
RUBBER B, HANDLE WEIGHT
$4.58¢2 288
1
#12
53107-MJ0-000
RUBBER B, HANDLE WEIGHT
$4.58¢2 288
1
#013
53108-MJ0-000
RING, HANDLE WEIGHT SNAP
$6.23¢3 113
1
#13
53108-MJ0-000
RING, HANDLE WEIGHT SNAP
$6.23¢3 113
1
#014
53109-MM5-000
RUBBER B, HANDLE WEIGHT
$4.53¢2 263
1
#14
53109-MM5-000
RUBBER B, HANDLE WEIGHT
$4.53¢2 263
1
#015
53150-MGP-305
HANDLEBAR, L. (COO)
$248.52¢124 262
1
#15
53150-MGP-305
HANDLEBAR, L. (COO)
$248.52¢124 262
1
#015
53150-MGP-D60
HANDLEBAR, Left
$248.52¢124 262
1
#016
53191-MFL-000
STAY, CLUTCH CABLE
$12.99¢6 494
1
#16
53191-MFL-000
STAY, CLUTCH CABLE
$12.99¢6 494
1
#017
53192-MFL-000
SCREW-WASHER (5X25)
$2.38¢1 188
1
#17
53192-MFL-000
SCREW-WASHER (5X25)
$2.38¢1 188
1
#018
53232-MFL-010
CAP, STEERING NUT
$3.05¢1 525
1
#18
53232-MFL-010
CAP, STEERING NUT
$3.05¢1 525
1
#019
53300-MGP-D61
BRIDGE, FORK TOP
$330.55¢165 275
1
#19
53300-MGP-D61
BRIDGE, FORK TOP
$330.55¢165 275
1
#021
86150-KPG-902
EMBLEM, PRODUCT (UEHARA)
$5.16¢2 581
1
#21
86150-KPG-902
EMBLEM, PRODUCT (UEHARA)
$5.16¢2 581
1
#21
86150-KPG-901
EMBLEM, PRODUCT (MARUI)
$4.39¢2 194
1
#021
86150-KPG-901
EMBLEM, PRODUCT (MARUI)
$4.39¢2 194
1
#022
90107-MBG-000
BOLT, ONE-WAY (8MM)
$3.65¢1 825
1
#22
90107-MBG-000
BOLT, ONE-WAY (8MM)
$3.65¢1 825
1
#023
90107-MGE-000
BOLT, FLANGE (8X40)
$3.43¢1 713
1
#23
90107-MGE-000
BOLT, FLANGE (8X40)
$3.43¢1 713
1
#024
90124-MFL-000
BOLT, FLANGE SOCKET (8X40)
$4.61¢2 306
1
#24
90124-MFL-000
BOLT, FLANGE SOCKET (8X40)
$4.61¢2 306
1
#025
90191-KT7-750
SCREW, OVAL (6X60)
$5.75¢2 875
1
#25
90191-KT7-750
SCREW, OVAL (6X60)
$5.75¢2 875
1
#026
90304-MFL-000
NUT, STEERING STEM
$16.74¢8 369
1
#26
90304-MFL-000
NUT, STEERING STEM
$16.74¢8 369
1
#027
91059-KY2-711
SCREW, TAPPING (3X16)
$3.65¢1 825
1
#27
91059-KY2-711
SCREW, TAPPING (3X16)
$3.65¢1 825
1
