HANDLE SWITCH CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

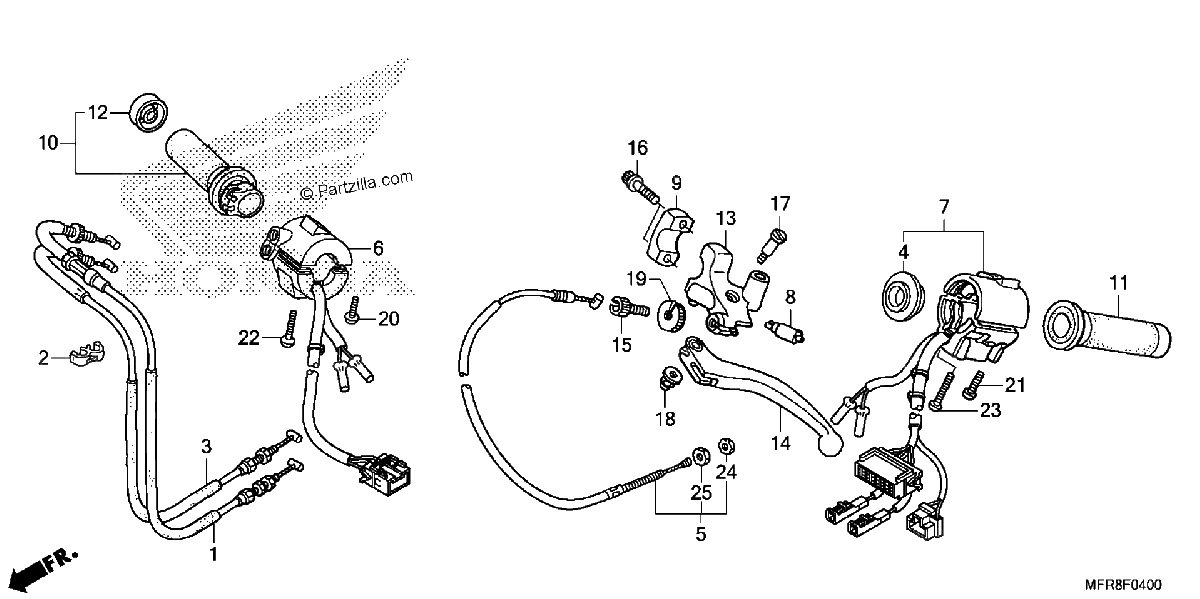

Diagrama de HANDLE SWITCH CABLE

Repuestos

#1
17910-MFR-670
CABLE A, THROTTLE
$34.02¢17 013
1
#001
17910-MFR-670
CABLE A, THROTTLE
$34.02¢17 013
1
#2
17915-SA7-981
CLIP, THROTTLE WIRE
$3.65¢1 825
1
#002
17915-SA7-981
CLIP, THROTTLE WIRE
$3.65¢1 825
1
#3
17920-MFR-670
CABLE B, THROTTLE
$34.02¢17 013
1
#003
17920-MFR-670
CABLE B, THROTTLE
$34.02¢17 013
1
#004
17962-MFE-A40
ADAPTER
$18.36¢9 181
1
#4
17962-MFE-A40
ADAPTER
$18.36¢9 181
1
#005
22870-MFR-670
CABLE, CLUTCH
$33.42¢16 713
1
#5
22870-MFR-670
CABLE, CLUTCH
$33.42¢16 713
1
#6
35130-MFR-681
SWITCH ASSY., STARTER STOP
$178.55¢89 275
1
#006
35130-MFR-681
SWITCH ASSY., STARTER STOP
$178.55¢89 275
1
#7
35200-MFR-681
SWITCH ASSY., TURN SIGNAL
$199.14¢99 569
1
#007
35200-MFR-681
SWITCH ASSY., TURN SIGNAL
$199.14¢99 569
1
#8
35330-413-003
SWITCH, FR. LEVER (TOYO DENSO)
$25.44¢12 719
1
#008
35330-413-003
SWITCH, FR. LEVER (TOYO DENSO)
$25.44¢12 719
1
#9
45517-MAV-751
HOLDER, MASTER CYLINDER (NISSIN)
$24.05¢12 025
1
#009
45517-MAV-751
HOLDER, MASTER CYLINDER (NISSIN)
$24.05¢12 025
1
#10
53145-MFE-305
GRIP, R. HANDLE (COO)
$56.95¢28 475
1
#10
53145-MFE-A40
GRIP, Right HANDLE
$56.95¢28 475
1
#010
53145-MFE-A40
GRIP, Right HANDLE
$56.95¢28 475
1
#11
53166-MFE-305
GRIP, L. HANDLE (COO)
$39.25¢19 625
1
#011
53166-MFE-A40
GRIP, L HANDLE
$39.25¢19 625
1
#11
53166-MFE-A40
GRIP, L HANDLE
$39.25¢19 625
1
#012
53167-MFE-A40
CAP, R. GRIP END
$7.23¢3 613
1
#12
53167-MFE-A40
CAP, R. GRIP END
$7.23¢3 613
1
#13
53172-MBA-000
BRACKET, HANDLE LEVER
$36.73¢18 363
1
#013
53172-MBA-000
BRACKET, HANDLE LEVER
$36.73¢18 363
1
#14
53178-MAV-305
LEVER, L HANDLE (COO)
$25.14¢12 569
1
#14
53178-MAV-750
LEVER, L HANDLE
$21.38¢10 688
1
#014
53178-MAV-750
LEVER, L HANDLE
$21.38¢10 688
1
#15
53192-MFR-670
BOLT, WIRE ADJUSTING
$7.67¢3 838
1
#015
53192-MFR-670
BOLT, WIRE ADJUSTING
$7.67¢3 838
1
#016
90101-MCL-000
BOLT, SOCKET (6X22)
$1.86¢931
1
#16
90101-MCL-000
BOLT, SOCKET (6X22)
$1.86¢931
1
#17
90113-438-000
BOLT, L HANDLEBAR LEVER PIVOT
$9.20¢4 600
1
#017
90113-438-000
BOLT, L HANDLEBAR LEVER PIVOT
$9.20¢4 600
1
#018
90201-415-000
NUT, CAP (6MM)
$2.76¢1 381
1
#18
90201-415-000
NUT, CAP (6MM)
$2.76¢1 381
1
#19
90321-MFR-670
NUT, FIXING
$8.95¢4 475
1
#019
90321-MFR-670
NUT, FIXING
$8.95¢4 475
1
#020
93500-05020-0A
SCREW, PAN (5X20)
$1.01¢506
1
#20
93500-05020-0A
SCREW, PAN (5X20)
$1.01¢506
1
#21
93500-05022-0A
SCREW, PAN (5X22)
$0.86¢431
1
#021
93500-05022-0A
SCREW, PAN (5X22)
$0.86¢431
1
#22
93500-05025-0A
SCREW, PAN (5X25)
$1.21¢606
1
#022
93500-05025-0A
SCREW, PAN (5X25)
$1.21¢606
1
#23
93500-05032-0A
SCREW, PAN (5X32)
$1.41¢706
1
#023
93500-05032-0A
SCREW, PAN (5X32)
$1.41¢706
1
#024
94002-08000-0S
NUT, HEX. (8MM)
$1.60¢800
1
#24
94002-08000-0S
NUT, HEX. (8MM)
$1.60¢800
1
#25
94031-08000
NUT, HEX. (8MM)
$1.38¢688
1
#025
94031-08000
NUT, HEX. (8MM)
$1.38¢688
1
