RADIATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

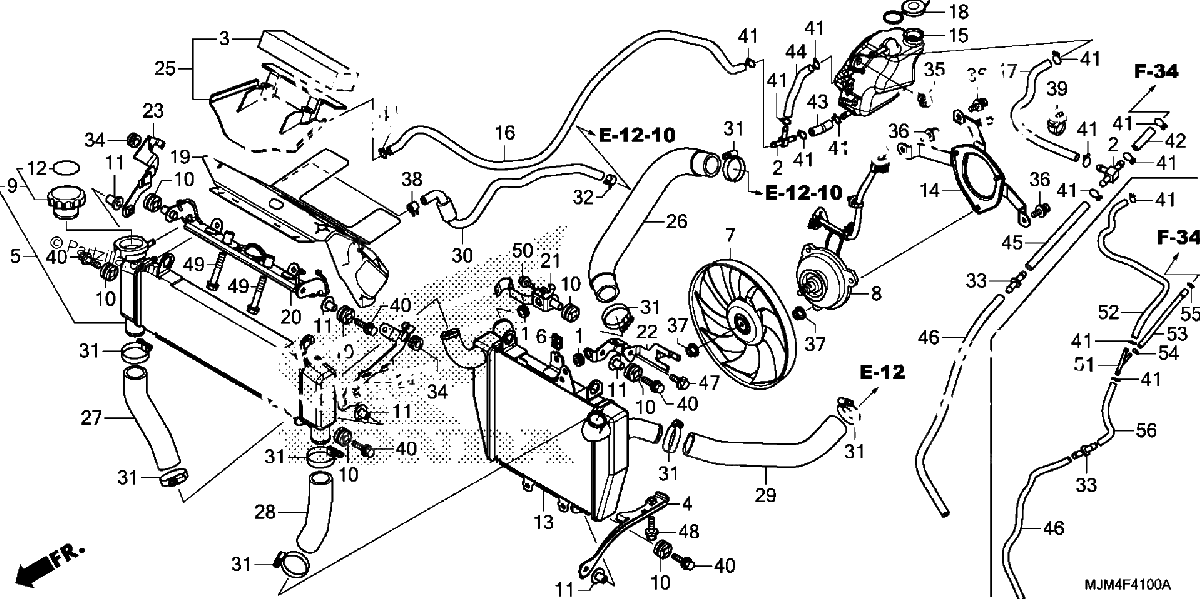

Diagrama de RADIATOR

Repuestos

#1
11344-MB0-000
GROMMET A, RR. COVER (8X16X6.6)
$3.36¢1 679
1
#2
16960-ME9-000
PIPE, THREE WAY JOINT
$17.62¢8 809
1
#3
17240-MJM-D10
MAT, AIR CLEANER GUIDE
$22.03¢11 017
1
#4
17411-MJM-A00
STAY, RADIATOR (LOWER)
$24.28¢12 138
1
#5
19010-MJM-305
RADIATOR (UPPER) (COO)
$499.59¢249 797
1
#6
19014-KEA-003
NUT, SETTING (6MM)
$3.45¢1 725
1
#7
19020-MFA-D01
FAN, COOLING
$48.22¢24 110
1
#8
19030-MJM-D11
MOTOR ASSY., FAN
$377.38¢188 692
1
#9
19045-MY3-621
CAP, RADIATOR
$43.54¢21 769
1
#10
19051-KA3-830
RUBBER, RADIATOR MOUNTING
$3.69¢1 846
1
#11
19052-MGH-640
COLLAR, RADIATOR MOUNTING
$2.94¢1 472
1
#12
19055-MV9-881
SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)
$9.92¢4 962
1
#13
19060-MJM-305
RADIATOR (LOWER) (COO)
$548.23¢274 114
1
#14
19070-MJM-D01
SHROUD
$60.93¢30 463
1
#15
19101-MJM-305
TANK, RADIATOR RESERVE (COO)
$47.64¢23 822
1
#16
19102-MJM-D00
TUBE, FILLER-RESERVE TANK
$25.51¢12 753
1
#17
19104-MJM-D00
TUBE, RESERVE TANK DRAIN
$10.50¢5 250
1
#18
19109-KPC-640
CAP, RESERVE TANK
$5.36¢2 680
1
#19
19121-MJM-D00
RUBBER, RADIATOR
$43.53¢21 764
1
#20
19130-MJM-D00
STAY, RADIATOR (UPPER)
$38.27¢19 136
1
#21
19131-MJM-D00
STAY, R. RADIATOR (LOWER/UPPER)
$14.04¢7 021
1
#22
19132-MJM-D00
STAY, L. RADIATOR (LOWER/UPPER)
$18.27¢9 137
1
#23
19135-MJM-D10
STAY, R. RADIATOR
$14.04¢7 021
1
#24
19136-MJM-D00
STAY, L. RADIATOR
$21.29¢10 643
1
#25
19140-MJM-D10
GUIDE, AIR CLEANER
$37.95¢18 975
1
#26
19501-MJM-D00
HOSE, RADIATOR (UPPER)
$25.00¢12 500
1
#27
19503-MJM-D00
HOSE, R. RADIATOR JOINT
$19.29¢9 643
1
#28
19504-MJM-D00
HOSE, L. RADIATOR JOINT
$19.29¢9 643
1
#29
19506-MJM-D00
HOSE, RADIATOR (LOWER)
$25.00¢12 500
1
#30
19508-MJM-D10
TUBE, RADIATOR BREATHER
$26.15¢13 075
1
#31
19516-GAG-003
CLAMP, HOSE (30-37MM)
$14.86¢7 429
1
#32
43514-KS6-701
CLAMP, MASTER CYLINDER OIL HOSE
$14.02¢7 009
1
#33
55102-166-000
JOINT, OIL TUBE
$4.55¢2 277
1
#34
80101-310-000
RUBBER, RR. FENDER CUSHION
$2.42¢1 208
1
#35
90109-434-000
BOLT, SPECIAL (6MM)
$3.36¢1 679
1
#36
90120-GHB-601
BOLT-WASHER (6X12)
$2.28¢1 138
1
#37
90315-MK3-003
NUT, SERRATE (5MM)
$2.75¢1 374
1
#38
90651-KV0-700
CLIP, TUBE
$5.20¢2 599
1
#39
90682-959-661
CLIP B, CABLE (9MM BLACK)
$3.45¢1 725
1
#40
93404-06025-08
BOLT-WASHER (6X25)
$2.21¢1 104
1
#41
95002-02100
CLIP, TUBE (B10)
$2.24¢1 121
1
#42
95005-55003-20M
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$36.70¢18 348
1
#43
95005-55003-20M
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$36.70¢18 348
1
#44
95005-55003-20M
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$36.70¢18 348
1
#45
95005-55003-20M
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$36.70¢18 348
1
#46
95005-55003-20M
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$36.70¢18 348
1
#47
95701-06012-07
BOLT, FLANGE (6X12)
$1.92¢960
1
#48
95701-06020-08
BOLT, FLANGE (6X20)
$0.44¢218
1
#49
95701-08045-00
BOLT, FLANGE (8X45)
$1.74¢868
1
#50
96001-06012-07
BOLT, FLANGE (6X12)
$2.13¢1 064
1
