WATER PIPE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

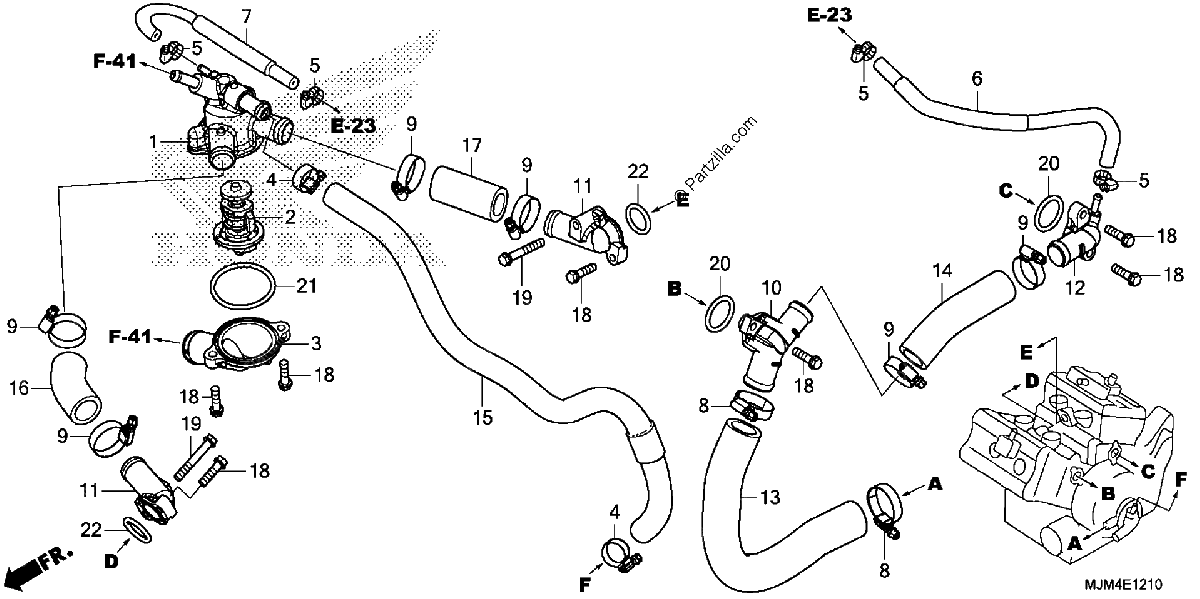

Diagrama de WATER PIPE

Repuestos

#1
19310-MCW-000
CASE, THERMOSTAT
$169.24¢84 619
1
#2
19320-MFJ-D01
THERMOSTAT
$40.03¢20 013
1
#3
19320-MJM-D00
COVER, THERMOSTAT
$50.03¢25 013
1
#4
19505-KS6-700
CLAMP A, WATER HOSE
$14.94¢7 469
1
#5
19507-MAT-000
CLAMP, RADIATOR HOSE
$12.49¢6 244
1
#6
19511-MJM-D00
HOSE, WATER JOINT
$17.81¢8 906
1
#7
19512-MCW-010
HOSE, THERMOBODY
$11.74¢5 869
1
#8
19516-ML7-691
CLAMP, HOSE (24-32MM)
$16.71¢8 356
1
#9
19517-ML7-691
CLAMP, HOSE (22-29MM)
$13.49¢6 744
1
#10
19522-MW4-000
JOINT A, WATER
$24.81¢12 406
1
#11
19523-MT3-000
JOINT, WATER
$16.06¢8 031
1
#12
19524-MBG-D00
JOINT B, WATER
$25.16¢12 581
1
#13
19525-MCW-H00
HOSE A, WATER
$32.46¢16 231
1
#14
19526-MCW-H00
HOSE B, WATER
$11.70¢5 850
1
#15
19527-MCW-000
HOSE, WATER BYPASS
$95.04¢47 519
1
#16
19528-MCW-H00
HOSE, FR. HEAD WATER
$7.66¢3 831
1
#17
19529-MCW-H00
HOSE, RR. HEAD WATER
$8.94¢4 469
1
#18
90010-GHB-660
BOLT, FLANGE (6X22)
$1.60¢800
1
#18
96001-06022-00
BOLT, FLANGE (6X22)
$1.60¢800
1
#19
90010-GHB-710
BOLT, FLANGE (6X40)
$2.79¢1 394
1
#19
96001-06040-00
BOLT, FLANGE (6X40)
$2.79¢1 394
1
#20
91304-MCP-900
O-RING (23X2.4)
$3.71¢1 856
1
#21
91311-MCP-901
O-RING (47.5X2)
$9.69¢4 844
1
#22
91331-MCP-900
O-RING (21.2X2.4)
$3.80¢1 900
1
