REAR WHEEL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

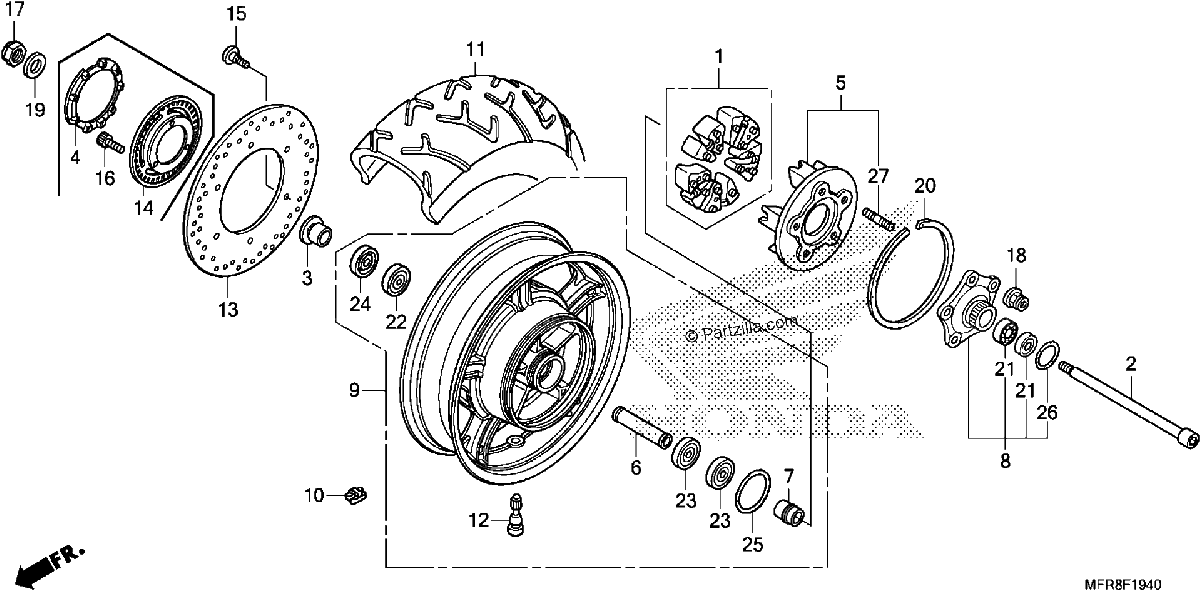

Diagrama de REAR WHEEL 1

Repuestos

#1
06410-MAZ-000
DAMPER SET, WHEEL
$62.81¢31 406
1
#001
06410-MAZ-000
DAMPER SET, WHEEL
$62.81¢31 406
1
#002
42301-MFR-670
AXLE, RR. WHEEL
$79.37¢39 686
1
#2
42301-MFR-670
AXLE, RR. WHEEL
$79.37¢39 686
1
#003
42312-MFR-670
COLLAR, RR. WHEEL
$55.84¢27 922
1
#3
42312-MFR-670
COLLAR, RR. WHEEL
$55.84¢27 922
1
#5
42614-MCH-000
FLANGE B, FINAL DRIVEN
$297.32¢148 661
1
#005
42614-MCH-000
FLANGE B, FINAL DRIVEN
$297.32¢148 661
1
#6
42620-MFR-670
COLLAR, RR. AXLE DISTANCE
$40.81¢20 407
1
#006
42620-MFR-670
COLLAR, RR. AXLE DISTANCE
$40.81¢20 407
1
#007
42624-MFR-670
COLLAR A, RR. AXLE DISTANCE
$32.84¢16 422
1
#7
42624-MFR-670
COLLAR A, RR. AXLE DISTANCE
$32.84¢16 422
1
#8
42630-MCH-000
FLANGE SET, FINAL DRIVEN
$311.93¢155 963
1
#008
42630-MCH-000
FLANGE SET, FINAL DRIVEN
$311.93¢155 963
1
#9
42650-MFR-P00
WHEEL SUB-ASSY., RR. (COO)
$1182.12¢591 060
1
#009
42650-MFR-P00
WHEEL SUB-ASSY., RR. (COO)
$1182.12¢591 060
1
#009
42650-MFR-B30
WHEEL SUB-Assembly., Rear.
$1182.12¢591 060
1
#010
42704-MER-D00
WEIGHT, BALANCE (10G)
$10.04¢5 020
1
#10
42704-MER-D00
WEIGHT, BALANCE (10G)
$10.04¢5 020
1
#010
42705-MER-D00
WEIGHT, BALANCE (20G)
$20.62¢10 310
1
#10
42705-MER-D00
WEIGHT, BALANCE (20G)
$20.62¢10 310
1
#10
42706-MER-D00
WEIGHT, BALANCE (30G)
$20.32¢10 160
1
#010
42706-MER-D00
WEIGHT, BALANCE (30G)
$20.32¢10 160
1
#11
42711-MFY-A01
TIRE, RR. (170/80-15M/C 77H) (BS)
No Disponible
1
#011
42711-MFY-A01
TIRE, RR. (170/80-15M/C 77H) (BS)
No Disponible
1
#11
42711-MFY-A02
TIRE, RR. (170/80-15M/C 77H) (DUNLOP)
$267.77¢133 883
1
#011
42711-MFY-A02
TIRE, RR. (170/80-15M/C 77H) (DUNLOP)
$267.77¢133 883
1
#011
42711-MFY-A03
TIRE, RR. (170/80-15M/C 77H) (DUNLOP)
$267.77¢133 883
1
#11
42711-MFY-A03
TIRE, RR. (170/80-15M/C 77H) (DUNLOP)
$267.77¢133 883
1
#011
42711-MFY-A04
TIRE, Rear.
$267.77¢133 883
1
#12
42753-ML7-004
VALVE, RIM (DUNLOP)
$13.60¢6 802
1
#12
42753-ML7-003
VALVE, RIM (BS)
$13.60¢6 802
1
#012
42753-ML7-004
VALVE, RIM (DUNLOP)
$13.60¢6 802
1
#012
42753-ML7-003
VALVE, RIM (BS)
$13.60¢6 802
1
#013
43251-MFR-671
DISK, RR. BRAKE
$376.31¢188 157
1
#13
43251-MFR-671
DISK, RR. BRAKE
$376.31¢188 157
1
#15
90105-MFL-D20
BOLT, BRAKE DISK (8X24)
$4.47¢2 237
1
#015
90105-MFL-D20
BOLT, BRAKE DISK (8X24)
$4.47¢2 237
1
#17
90305-MCF-D01
NUT, U (22MM)
$8.58¢4 289
1
#017
90305-MCF-D01
NUT, U (22MM)
$8.58¢4 289
1
#018
90306-KF0-003
NUT, FLANGE (12MM) (FUSE RASHI)
$4.30¢2 151
1
#18
90306-KF0-003
NUT, FLANGE (12MM) (FUSE RASHI)
$4.30¢2 151
1
#19
90401-MAZ-000
WASHER (22X38X2.5)
$6.58¢3 289
1
#019
90401-MAZ-000
WASHER (22X38X2.5)
$6.58¢3 289
1
#020
90651-MCH-000
CIRCLIP (INNER) (188)
$20.99¢10 494
1
#20
90651-MCH-000
CIRCLIP (INNER) (188)
$20.99¢10 494
1
#21
91052-KZ4-J21
BEARING, RADIAL BALL (6905RS)
$18.54¢9 269
1
#021
91052-KZ4-J21
BEARING, RADIAL BALL (6905RS)
$18.54¢9 269
1
#022
91053-MAZ-003
BEARING, RADIAL BALL (6205X2)
$18.46¢9 229
1
#22
91053-MAZ-003
BEARING, RADIAL BALL (6205X2)
$18.46¢9 229
1
#023
91053-MFR-671
BEARING, RADIAL BALL (60/28)
$19.99¢9 994
1
#23
91053-MFR-671
BEARING, RADIAL BALL (60/28)
$19.99¢9 994
1
#24
91254-MEE-003
DUST SEAL (35X52X7.5)
$7.72¢3 858
1
#024
91254-MEE-003
DUST SEAL (35X52X7.5)
$7.72¢3 858
1
#25
91302-MA6-003
O-RING (61X2)
$5.76¢2 881
1
#025
91302-MA6-003
O-RING (61X2)
$5.76¢2 881
1
#026
91358-MG9-003
O-RING (50.5X3.5) (ARAI)
$4.20¢2 099
1
#26
91358-MG9-003
O-RING (50.5X3.5) (ARAI)
$4.20¢2 099
1
#026
91358-MG9-004
O-RING (50.5X3.5) (NOK)
$4.20¢2 099
1
#26
91358-MG9-004
O-RING (50.5X3.5) (NOK)
$4.20¢2 099
1
#27
92900-12032-0E
BOLT 2, STUD (12X32)
$3.36¢1 679
1
#027
92900-12032-0E
BOLT 2, STUD (12X32)
$3.36¢1 679
1
