SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

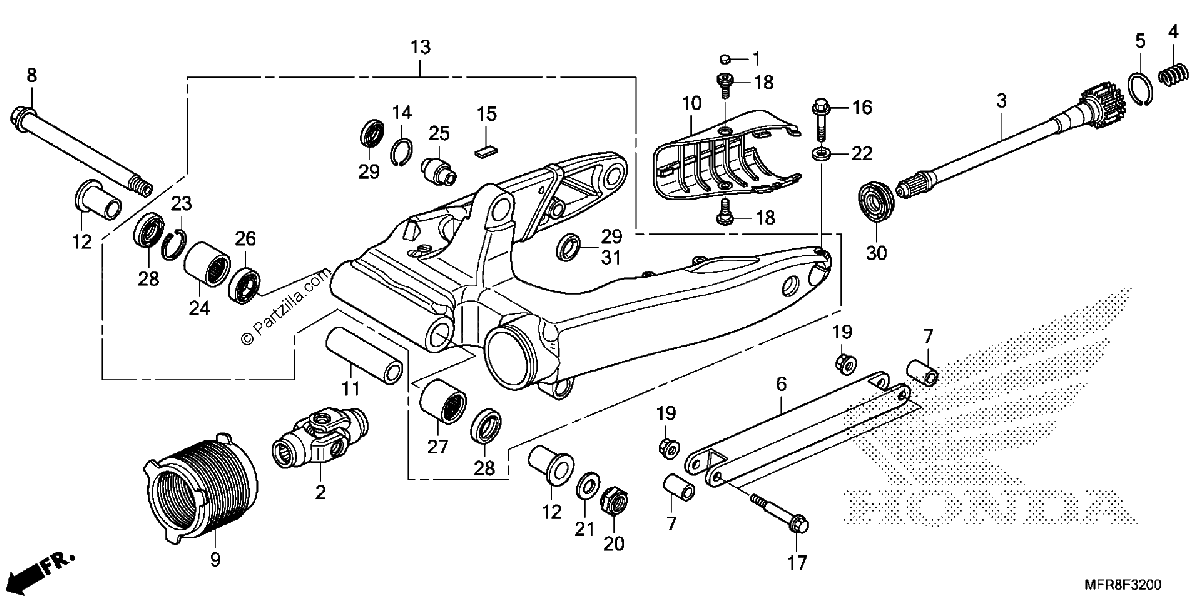

Diagrama de SWINGARM

Repuestos

#001
12392-MJ0-000
PLUG, HEX. (6MM)
$5.47¢2 738
1
#1
12392-MJ0-000
PLUG, HEX. (6MM)
$5.47¢2 738
1
#002
40200-MFR-670
JOINT, YOKE
$225.85¢112 925
1
#2
40200-MFR-670
JOINT, YOKE
$225.85¢112 925
1
#003
40201-MFR-670
SHAFT, PROPELLER
$207.99¢103 994
1
#3
40201-MFR-670
SHAFT, PROPELLER
$207.99¢103 994
1
#004
40215-ME9-003
SPRING, PROPELLER SHAFT
$7.16¢3 581
1
#4
40215-ME9-003
SPRING, PROPELLER SHAFT
$7.16¢3 581
1
#5
40221-MB0-000
RING, STOPPER
$5.47¢2 738
1
#005
40221-MB0-000
RING, STOPPER
$5.47¢2 738
1
#6
41610-MFY-A00
LINK, TORQUE
$207.25¢103 625
1
#006
41610-MFY-A00
LINK, TORQUE
$207.25¢103 625
1
#007
41615-MFR-670
BUSH, TORQUE LINK
$15.10¢7 550
1
#7
41615-MFR-670
BUSH, TORQUE LINK
$15.10¢7 550
1
#008
52101-MFR-670
BOLT, SWINGARM PIVOT
$77.05¢38 525
1
#8
52101-MFR-670
BOLT, SWINGARM PIVOT
$77.05¢38 525
1
#009
52104-MFR-670
BOOT, JOINT
$32.54¢16 269
1
#9
52104-MFR-670
BOOT, JOINT
$32.54¢16 269
1
#10
52105-MFY-A00
COVER, PROPELLER SHAFT
$36.54¢18 269
1
#010
52105-MFY-A00
COVER, PROPELLER SHAFT
$36.54¢18 269
1
#11
52141-MFR-670
COLLAR, CENTER PIVOT DISTANCE
$29.46¢14 731
1
#011
52141-MFR-670
COLLAR, CENTER PIVOT DISTANCE
$29.46¢14 731
1
#012
52142-MFR-670
COLLAR, PIVOT DISTANCE
$36.39¢18 194
1
#12
52142-MFR-670
COLLAR, PIVOT DISTANCE
$36.39¢18 194
1
#013
52200-MFY-A70ZA
SWINGARM SUB-ASSY., RR. *NH1* (BLACK)
$1604.46¢802 231
1
#13
52200-MFY-A70ZA
SWINGARM SUB-ASSY., RR. *NH1* (BLACK)
$1604.46¢802 231
1
#014
52487-KA4-831
RING, STOPPER
$4.76¢2 381
1
#14
52487-KA4-831
RING, STOPPER
$4.76¢2 381
1
#16
90103-MFR-670
BOLT, FLANGE (8X35)
$8.69¢4 344
1
#016
90103-MFR-670
BOLT, FLANGE (8X35)
$8.69¢4 344
1
#17
90106-MFR-670
BOLT, FLANGE (10X50)
$5.58¢2 788
1
#017
90106-MFR-670
BOLT, FLANGE (10X50)
$5.58¢2 788
1
#018
90108-MFR-670
BOLT, SOCKET (6X12)
$4.14¢2 069
1
#18
90108-MFR-670
BOLT, SOCKET (6X12)
$4.14¢2 069
1
#19
90304-KAE-871
NUT, U (10MM)
$5.25¢2 625
1
#019
90304-KAE-871
NUT, U (10MM)
$5.25¢2 625
1
#020
90306-MCS-G01
NUT, U (18MM)
$8.26¢4 131
1
#20
90306-MCS-G01
NUT, U (18MM)
$8.26¢4 131
1
#021
90432-MCS-G00
WASHER, SPECIAL (18MM)
$3.69¢1 844
1
#21
90432-MCS-G00
WASHER, SPECIAL (18MM)
$3.69¢1 844
1
#022
90501-MFR-670
WASHER, PLAIN (8MM)
$4.90¢2 450
1
#22
90501-MFR-670
WASHER, PLAIN (8MM)
$4.90¢2 450
1
#023
90651-MEW-920
CIRCLIP (INNER) (37)
$4.04¢2 019
1
#23
90651-MEW-920
CIRCLIP (INNER) (37)
$4.04¢2 019
1
#24
91071-MBW-E11
BEARING, NEEDLE
$19.98¢9 988
1
#024
91071-MBW-E11
BEARING, NEEDLE
$19.98¢9 988
1
#25
91071-MEC-003
BEARING, SPHERICAL (10MM)
$46.50¢23 250
1
#025
91071-MEC-003
BEARING, SPHERICAL (10MM)
$46.50¢23 250
1
#26
91071-MEW-921
BEARING, RADIAL BALL (20X37X9)
$11.99¢5 994
1
#026
91071-MEW-921
BEARING, RADIAL BALL (20X37X9)
$11.99¢5 994
1
#27
91071-MR7-003
BEARING, NEEDLE
$29.82¢14 913
1
#027
91071-MR7-003
BEARING, NEEDLE
$29.82¢14 913
1
#28
91202-MR7-003
DUST SEAL (28X37X4)
$7.70¢3 850
1
#028
91202-MR7-003
DUST SEAL (28X37X4)
$7.70¢3 850
1
#29
91254-MBR-003
DUST SEAL (16X26X2.5)
$7.52¢3 762
1
#029
91254-MBR-003
DUST SEAL (16X26X2.5)
$7.52¢3 762
1
#030
91261-ME9-005
OIL SEAL (27X43X7)
$14.09¢7 044
1
#30
91261-ME9-005
OIL SEAL (27X43X7)
$14.09¢7 044
1
#031
91351-KZ3-731
DUST SEAL, RR. CUSHION PIVOT
$5.91¢2 956
1
#31
91351-KZ3-731
DUST SEAL, RR. CUSHION PIVOT
$5.91¢2 956
1
