HANDLEBAR TOP BRIDGE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

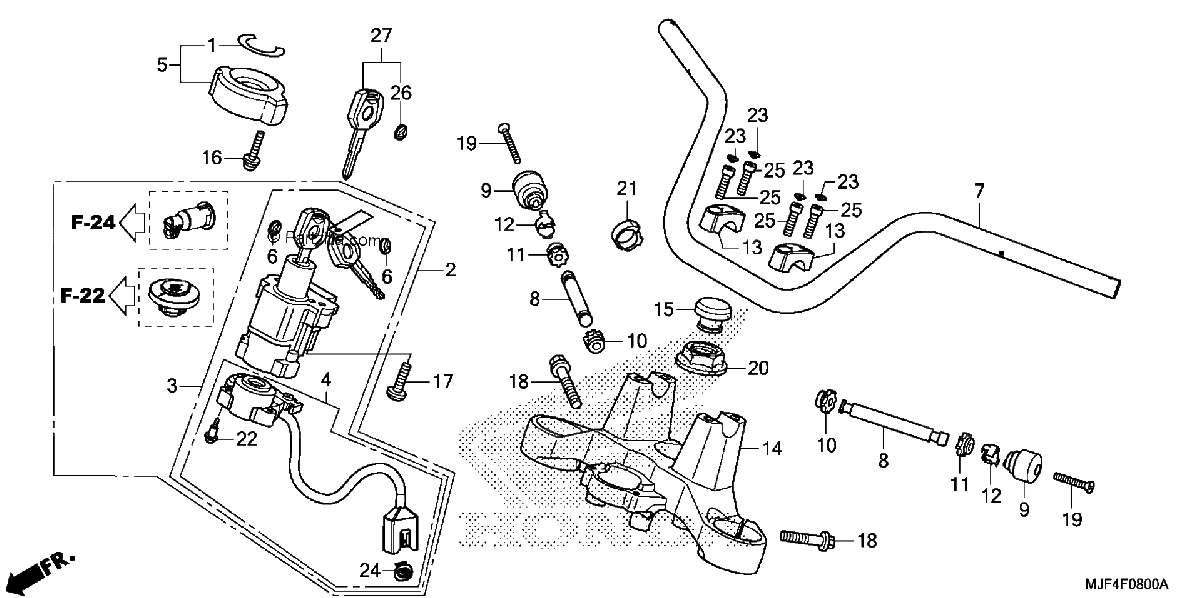

Diagrama de HANDLEBAR TOP BRIDGE

Repuestos

#1
30433-MBW-602
SEAL, IGNITION SWITCH
$3.65¢1 825
1
#001
30433-MBW-602
SEAL, IGNITION SWITCH
$3.65¢1 825
1
#002
35010-MJF-A00
LOCK SET
$407.11¢203 556
1
#2
35010-MJF-A00
LOCK SET
$407.11¢203 556
1
#002
35010-MJF-A01
LOCK SET
$407.11¢203 556
1
#003
35100-MJF-A01
SWITCH ASSY., COMBINATION LOCK
$266.76¢133 381
1
#3
35100-MJF-A01
SWITCH ASSY., COMBINATION LOCK
$266.76¢133 381
1
#4
35101-MJF-A01
BASE, CONTACT
$121.95¢60 975
1
#004
35101-MJF-A01
BASE, CONTACT
$121.95¢60 975
1
#5
35106-MAT-A00
COVER, COMBINATION SWITCH
$12.21¢6 106
1
#005
35106-MAT-A00
COVER, COMBINATION SWITCH
$12.21¢6 106
1
#6
35113-MFJ-D01
EMBLEM, KEY
$3.65¢1 825
1
#006
35113-MFJ-D01
EMBLEM, KEY
$3.65¢1 825
1
#007
53100-MJF-306ZA
HANDLEBAR NH303M (DCT)(COO)(MAT AXIS GRAY METALLIC)
$289.36¢144 681
1
#7
53100-MJF-306ZA
HANDLEBAR NH303M (DCT)(COO)(MAT AXIS GRAY METALLIC)
$289.36¢144 681
1
#007
53100-MJF-A21ZA
HANDLEBAR NH303M (MAT AXIS GRAY METALLIC)
$289.36¢144 681
1
#8
53105-KV3-000
WEIGHT B, HANDLEBAR
$20.23¢10 113
1
#008
53105-KV3-000
WEIGHT B, HANDLEBAR
$20.23¢10 113
1
#009
53105-MN4-010
WEIGHT, HANDLEBAR
$25.24¢12 619
1
#9
53105-MN4-010
WEIGHT, HANDLEBAR
$25.24¢12 619
1
#010
53106-KR3-000
RUBBER A, HANDLE WEIGHT
$4.76¢2 381
1
#10
53106-KR3-000
RUBBER A, HANDLE WEIGHT
$4.76¢2 381
1
#011
53107-KM9-000
RUBBER B, HANDLE WEIGHT
$4.74¢2 369
1
#11
53107-KM9-000
RUBBER B, HANDLE WEIGHT
$4.74¢2 369
1
#12
53108-KR3-770
RING, HANDLE WEIGHT SNAP
$7.55¢3 775
1
#012
53108-KR3-770
RING, HANDLE WEIGHT SNAP
$7.55¢3 775
1
#013
53131-MJF-A00
HOLDER, HANDLE (UPPER)
$68.94¢34 469
1
#13
53131-MJF-A00
HOLDER, HANDLE (UPPER)
$68.94¢34 469
1
#14
53230-MJF-A00
BRIDGE, FORK TOP
$346.16¢173 081
1
#014
53230-MJF-A00
BRIDGE, FORK TOP
$346.16¢173 081
1
#15
53232-MJ4-670
CAP, STEERING STEM NUT
$15.70¢7 850
1
#015
53232-MJ4-670
CAP, STEERING STEM NUT
$15.70¢7 850
1
#016
90020-MBW-610
SCREW-WASHER (5X22)
$3.30¢1 650
1
#16
90020-MBW-610
SCREW-WASHER (5X22)
$3.30¢1 650
1
#17
90107-MBG-000
BOLT, ONE-WAY (8MM)
$3.65¢1 825
1
#017
90107-MBG-000
BOLT, ONE-WAY (8MM)
$3.65¢1 825
1
#18
90160-MGJ-D00
BOLT, FLANGE SOCKET (8X32)
$5.71¢2 856
1
#018
90160-MGJ-D00
BOLT, FLANGE SOCKET (8X32)
$5.71¢2 856
1
#019
90191-KBG-000
SCREW, OVAL (6X65)
$5.99¢2 994
1
#19
90191-KBG-000
SCREW, OVAL (6X65)
$5.99¢2 994
1
#20
90304-MCF-000
NUT, STEERING STEM FLANGE
$13.89¢6 944
1
#020
90304-MCF-000
NUT, STEERING STEM FLANGE
$13.89¢6 944
1
#021
90690-GHB-651
CLIP, CABLE (15MM)
$2.81¢1 406
1
#21
90690-GHB-651
CLIP, CABLE (15MM)
$2.81¢1 406
1
#22
91059-KY2-711
SCREW, TAPPING (3X16)
$3.65¢1 825
1
#022
91059-KY2-711
SCREW, TAPPING (3X16)
$3.65¢1 825
1
#023
91456-371-770
CAP, SOCKET BOLT
$4.20¢2 100
1
#23
91456-371-770
CAP, SOCKET BOLT
$4.20¢2 100
1
#024
91533-MGS-D30
CLIP, CONNECTOR (BLACK)
$1.72¢862
1
#24
91533-MGS-D30
CLIP, CONNECTOR (BLACK)
$1.72¢862
1
#25
96600-08032-00
BOLT, SOCKET (8X32)
$2.66¢1 331
1
#025
96600-08032-00
BOLT, SOCKET (8X32)
$2.66¢1 331
1
#25
96600-08032-10
BOLT, SOCKET (8X32)
$2.66¢1 331
1
#025
96600-08032-10
BOLT, SOCKET (8X32)
$2.66¢1 331
1
#26
35113-MFJ-D01
EMBLEM, KEY
$3.65¢1 825
1
#026
35113-MFJ-D01
EMBLEM, KEY
$3.65¢1 825
1
#27
35121-MGS-A31
KEY, BLANK
$27.43¢13 713
1
#027
35121-MGS-A31
KEY, BLANK
$27.43¢13 713
1
