FRONT BRAKE MASTER CYLINDER 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

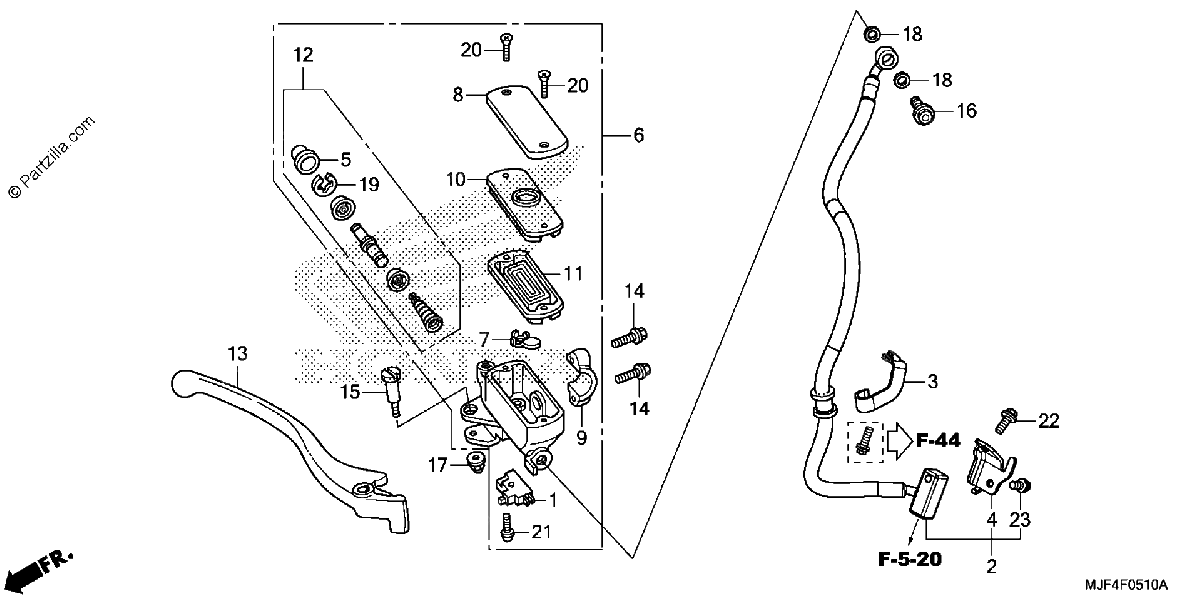

Diagrama de FRONT BRAKE MASTER CYLINDER 2

Repuestos

#1
35340-MGS-D31
SWITCH Assembly., Front STOP (ALPS)
$19.77¢9 884
1
#2
45125-MJF-C11
HOSE A, FR. BRAKE
$70.07¢35 035
1
#3
45155-MJF-C10
CLAMP A, FR. BRAKE
$9.22¢4 611
1
#4
45158-MGS-D80
STAY, FR. BRAKE HOSE
$7.03¢3 513
1
#5
45504-410-003
BOOT
$13.10¢6 549
1
#6
45510-MGS-305
MASTER CYLINDER SUB-Assembly., Front.(COO)
$331.44¢165 721
1
#6
45510-MGS-D31
MASTER CYLINDER SUB-Assembly., Front.(NISSIN)
$331.44¢165 721
1
#7
45512-MA6-006
PROTECTOR
$4.78¢2 392
1
#8
45513-MM5-016
CAP, MASTER CYLINDER (NISSIN)
$23.94¢11 971
1
#9
45517-166-006
HOLDER, MASTER CYLINDER
$14.48¢7 239
1
#10
45518-MM5-006
PLATE, DIAPHRAGM
$11.37¢5 687
1
#11
45520-MM5-006
DIAPHRAGM
$16.26¢8 131
1
#12
45530-KVY-911
MASTER CYLINDER SET (NISSIN)
$30.56¢15 278
1
#13
53175-MJF-305
LEVER, Right HANDLE (COO)
$25.04¢12 518
1
#14
90101-MBZ-G00
BOLT, FLANGE (6X22)
$1.70¢851
1
#15
90114-MA5-671
BOLT, HANDLE LEVER PIVOT
$10.14¢5 071
1
#16
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#17
90201-415-000
NUT, CAP (6MM)
$2.54¢1 271
1
#18
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#19
90651-MA5-671
CIRCLIP
$2.85¢1 426
1
#20
93600-04012-0G
SCREW, FLAT (4X12)
$1.07¢535
1
#20
93600-04012-1G
SCREW, FLAT (4X12)
$1.07¢535
1
#21
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#21
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
#22
95701-06014-07
BOLT, FLANGE (6X14)
$1.63¢816
1
#23
96001-06012-07
BOLT, FLANGE (6X12)
$2.13¢1 064
1
