WATER PIPE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

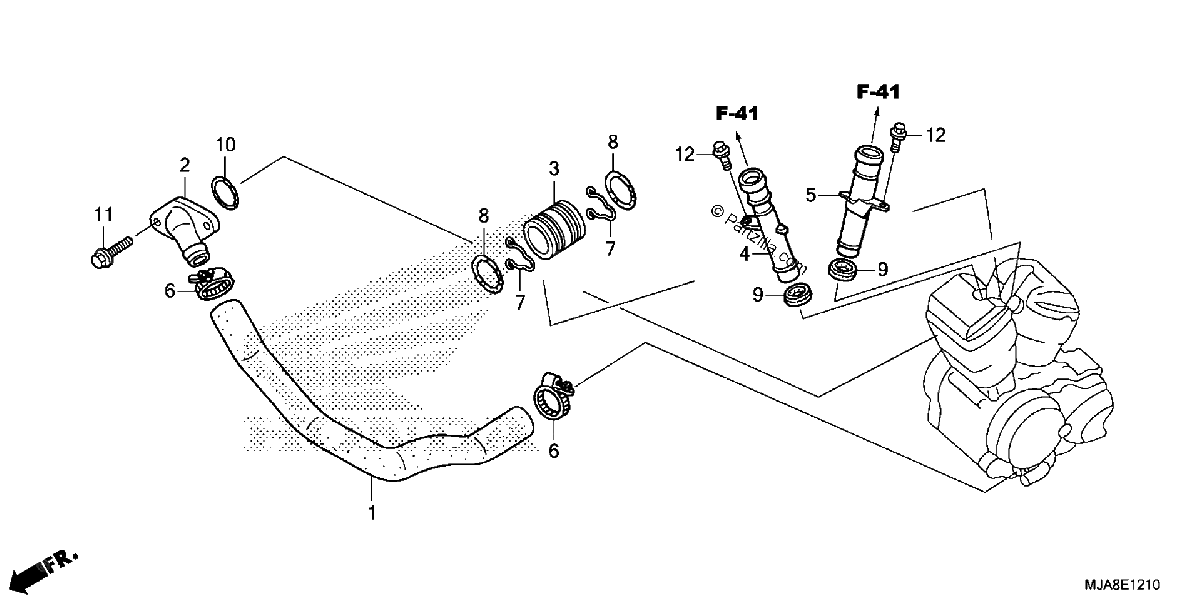

Diagrama de WATER PIPE

Repuestos

#001
19501-MN8-000
HOSE, MAIN WATER
$40.43¢20 213
1
#1
19501-MN8-000
HOSE, MAIN WATER
$40.43¢20 213
1
#002
19503-MR1-000
JOINT, WATER HOSE
$56.86¢28 431
1
#2
19503-MR1-000
JOINT, WATER HOSE
$56.86¢28 431
1
#003
19505-MEG-000
JOINT, WATER (FR/RR)
$19.52¢9 763
1
#3
19505-MEG-000
JOINT, WATER (FR/RR)
$19.52¢9 763
1
#4
19511-MEG-000
PIPE, Front OUTLET WATER
$27.95¢13 975
1
#004
19511-MEG-000
PIPE, Front OUTLET WATER
$27.95¢13 975
1
#005
19512-MEG-000
PIPE, RR. OUTLET WATER
$30.94¢15 469
1
#5
19512-MEG-000
PIPE, RR. OUTLET WATER
$30.94¢15 469
1
#006
19516-ML7-691
CLAMP, HOSE (24-32MM)
$16.71¢8 356
1
#6
19516-ML7-691
CLAMP, HOSE (24-32MM)
$16.71¢8 356
1
#007
90601-MEG-000
CLIP, RING (22MM)
$3.50¢1 750
1
#7
90601-MEG-000
CLIP, RING (22MM)
$3.50¢1 750
1
#008
91310-MB0-003
O-RING (21.5X2)
$3.65¢1 825
1
#8
91310-MB0-003
O-RING (21.5X2)
$3.65¢1 825
1
#9
91315-ME9-003
SEAL, WATER PIPE
$5.47¢2 738
1
#009
91315-ME9-003
SEAL, WATER PIPE
$5.47¢2 738
1
#010
91356-169-003
O-RING
$3.65¢1 825
1
#10
91356-169-003
O-RING
$3.65¢1 825
1
#011
95701-06020-00
BOLT, FLANGE (6X20)
$2.27¢1 138
1
#11
95701-06020-00
BOLT, FLANGE (6X20)
$2.27¢1 138
1
#12
96001-06012-00
BOLT, FLANGE (6X12)
$2.31¢1 156
1
#012
96001-06012-00
BOLT, FLANGE (6X12)
$2.31¢1 156
1
