REAR WHEEL 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

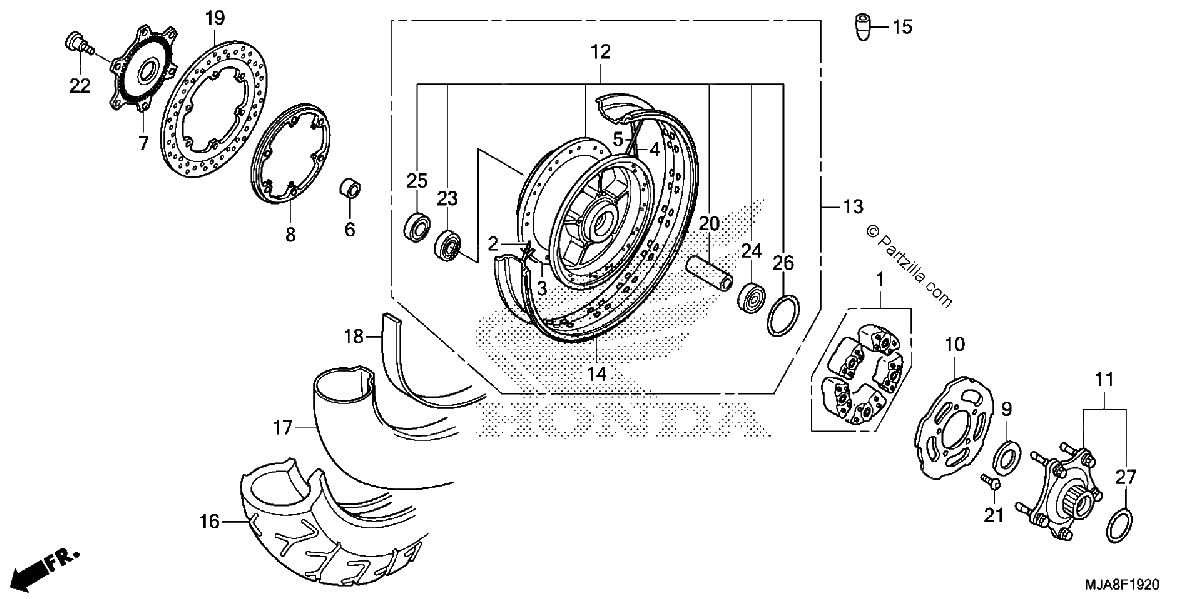

Diagrama de REAR WHEEL 2

Repuestos

#001
06410-MBH-000
DAMPER SET, WHEEL
$58.34¢29 170
1
#1
06410-MBH-000
DAMPER SET, WHEEL
$58.34¢29 170
1
#002
06420-MEG-H10
SPOKE SET, R. RR. (INNER)
$7.00¢3 502
1
#2
06420-MEG-H10
SPOKE SET, R. RR. (INNER)
$7.00¢3 502
1
#3
06421-MEG-H10
SPOKE SET, Right Rear. (OUTER)
$7.00¢3 502
1
#003
06421-MEG-H10
SPOKE SET, Right Rear. (OUTER)
$7.00¢3 502
1
#004
06422-MEG-H10
SPOKE SET, L. RR. (INNER)
$8.18¢4 088
1
#4
06422-MEG-H10
SPOKE SET, L. RR. (INNER)
$8.18¢4 088
1
#005
06423-MEG-H10
SPOKE SET, L. RR. (OUTER)
$8.18¢4 088
1
#5
06423-MEG-H10
SPOKE SET, L. RR. (OUTER)
$8.18¢4 088
1
#6
42313-MEG-H10
COLLAR, Right Rear WHEEL SIDE
$24.74¢12 368
1
#006
42313-MEG-H10
COLLAR, Right Rear WHEEL SIDE
$24.74¢12 368
1
#007
42515-MEG-H10
RING, PULSER
$138.80¢69 402
1
#7
42515-MEG-H10
RING, PULSER
$138.80¢69 402
1
#008
42516-MEG-H10
SPACER, BRAKE DISK
$220.03¢110 015
1
#8
42516-MEG-H10
SPACER, BRAKE DISK
$220.03¢110 015
1
#9
42616-MT3-000
WASHER, THRUST
$8.90¢4 451
1
#009
42616-MT3-000
WASHER, THRUST
$8.90¢4 451
1
#010
42617-MT8-000
HOLDER, DAMPER
$50.90¢25 449
1
#10
42617-MT8-000
HOLDER, DAMPER
$50.90¢25 449
1
#011
42630-MAH-305
FLANGE SET, FINAL DRIVEN
$227.57¢113 787
1
#11
42630-MAH-305
FLANGE SET, FINAL DRIVEN
$227.57¢113 787
1
#12
42635-MAH-A20
HUB SUB-Assembly., Rear WHEEL
$676.12¢338 060
1
#012
42635-MAH-A20
HUB SUB-Assembly., Rear WHEEL
$676.12¢338 060
1
#013
42650-MEG-306
WHEEL SET, RR. (COO)
$979.35¢489 676
1
#13
42650-MEG-306
WHEEL SET, RR. (COO)
$979.35¢489 676
1
#014
42701-MAH-013
RIM, RR. WHEEL
$205.15¢102 574
1
#14
42701-MAH-013
RIM, RR. WHEEL
$205.15¢102 574
1
#15
42704-MEG-003
WEIGHT, BALANCE (15G)
$9.02¢4 508
1
#015
42704-MEG-003
WEIGHT, BALANCE (15G)
$9.02¢4 508
1
#015
42705-MEG-003
WEIGHT, BALANCE (20G)
$9.02¢4 508
1
#15
42705-MEG-003
WEIGHT, BALANCE (20G)
$9.02¢4 508
1
#016
42711-MEG-017
TIRE, Rear. (160/80-15) (M/C 74S) (CHENG SHIN)
$338.07¢169 033
1
#016
42711-MEG-024
TIRE, Rear. (160/80-15) (M/C 74S) (DUNLOP)
$269.21¢134 608
1
#16
42711-MEG-017
TIRE, Rear. (160/80-15) (M/C 74S) (CHENG SHIN)
$338.07¢169 033
1
#016
42711-MEG-034
TIRE, Rear. (160/80-15) (M/C 74S) (DUNLOP)
$269.21¢134 608
1
#016
42711-MEG-014
TIRE, Rear. (160/80-15) (M/C 74S) (DUNLOP)
$269.21¢134 608
1
#016
42711-MCL-023
TIRE, RR. (160/80-15) (M/C 74S) (BS)
$338.07¢169 033
1
#16
42711-MCL-023
TIRE, RR. (160/80-15) (M/C 74S) (BS)
$338.07¢169 033
1
#16
42711-MEG-014
TIRE, Rear. (160/80-15) (M/C 74S) (DUNLOP)
$269.21¢134 608
1
#17
42712-MEG-901
TUBE, TIRE (BS)
$44.60¢22 299
1
#017
42712-MEG-901
TUBE, TIRE (BS)
$44.60¢22 299
1
#017
42712-MEG-902
TUBE, TIRE (DUNLOP)
$40.40¢20 200
1
#17
42712-MEG-902
TUBE, TIRE (DUNLOP)
$40.40¢20 200
1
#017
42712-MEG-903
TUBE, TIRE (CHENG SHIN)
$44.60¢22 299
1
#17
42712-MEG-903
TUBE, TIRE (CHENG SHIN)
$44.60¢22 299
1
#018
42713-MR1-672
FLAP, TIRE (45-15) (DUNLOP)
$8.18¢4 088
1
#18
42713-MR1-672
FLAP, TIRE (45-15) (DUNLOP)
$8.18¢4 088
1
#018
42713-MEG-007
FLAP, TIRE (CHENG SHIN)
$8.18¢4 088
1
#18
42713-MR1-671
FLAP, TIRE (BS)
$8.18¢4 088
1
#018
42713-MR1-671
FLAP, TIRE (BS)
$8.18¢4 088
1
#18
42713-MEG-007
FLAP, TIRE (CHENG SHIN)
$8.18¢4 088
1
#19
43251-MEG-H11
DISK, Rear BRAKE
$752.21¢376 107
1
#019
43251-MEG-H11
DISK, Rear BRAKE
$752.21¢376 107
1
#20
44620-MT3-000
COLLAR, FR. AXLE DISTANCE
$21.62¢10 810
1
#020
44620-MT3-000
COLLAR, FR. AXLE DISTANCE
$21.62¢10 810
1
#21
90106-MBB-000
BOLT, DISK (6X17)
$4.06¢2 030
1
#021
90106-MT3-003
BOLT, DISK (6X17) (SAGA)
$4.24¢2 122
1
#21
90106-MT3-003
BOLT, DISK (6X17) (SAGA)
$4.24¢2 122
1
#21
90105-KN5-000
BOLT, DISK (6X17)
$4.34¢2 168
1
#021
90106-MBB-000
BOLT, DISK (6X17)
$4.06¢2 030
1
#21
90105-KV3-851
BOLT, DISK (6X17) (DAIDO)
$4.24¢2 122
1
#021
90105-KV3-851
BOLT, DISK (6X17) (DAIDO)
$4.24¢2 122
1
#021
90105-KN5-000
BOLT, DISK (6X17)
$4.34¢2 168
1
#022
90106-MEG-H10
BOLT, RR. DISK (8X34)
$14.44¢7 222
1
#22
90106-MEG-H10
BOLT, RR. DISK (8X34)
$14.44¢7 222
1
#023
91052-MAE-004
BEARING, RADIAL BALL (6204UU)
$29.60¢14 800
1
#23
91052-MAE-004
BEARING, RADIAL BALL (6204UU)
$29.60¢14 800
1
#24
91053-MN5-003
BEARING, RADIAL BALL (20X47X20.6) (NTN)
$80.05¢40 026
1
#024
91053-MN5-003
BEARING, RADIAL BALL (20X47X20.6) (NTN)
$80.05¢40 026
1
#25
91253-443-761
DUST SEAL (30X47X8) (ARAI)
$12.96¢6 480
1
#025
91253-443-761
DUST SEAL (30X47X8) (ARAI)
$12.96¢6 480
1
#25
91253-443-762
DUST SEAL (30X47X8) (NOK)
$12.96¢6 480
1
#025
91253-443-762
DUST SEAL (30X47X8) (NOK)
$12.96¢6 480
1
#26
91302-MA6-003
O-RING (61X2)
$5.76¢2 881
1
#026
91302-MA6-003
O-RING (61X2)
$5.76¢2 881
1
#027
91358-MB0-000
O-RING (46.5X3.5)
$4.20¢2 099
1
#27
91358-MB0-000
O-RING (46.5X3.5)
$4.20¢2 099
1
