FRONT BRAKE MASTER CYLINDER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

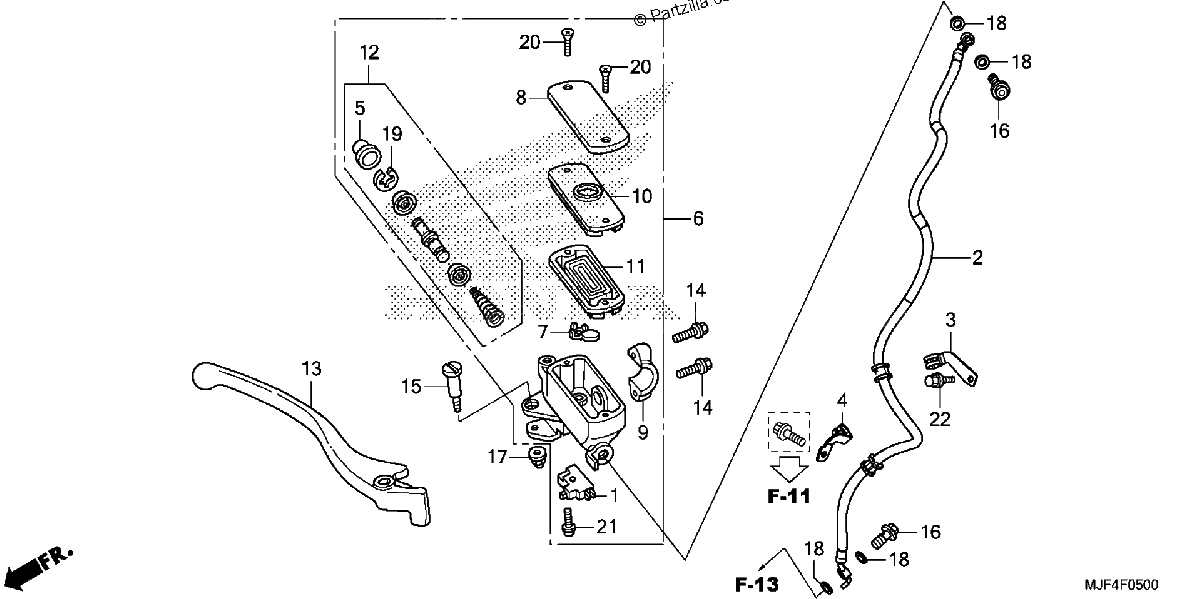

Diagrama de FRONT BRAKE MASTER CYLINDER 1

Repuestos

#1
35340-MGS-D31
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
1
#2
45125-MJF-A01
HOSE, Front BRAKE
$88.63¢44 313
1
#3
45155-MGS-D10
CLAMP A, Front BRAKE HOSE
$9.36¢4 681
1
#4
45156-MGS-D30
CLAMP B, Front BRAKE HOSE
$11.47¢5 738
1
#5
45504-410-003
BOOT
$14.24¢7 119
1
#6
45510-MGS-305
MASTER CYLINDER SUB-Assembly., Front.(COO)
$360.26¢180 131
1
#7
45512-MA6-006
PROTECTOR
$5.20¢2 600
1
#8
45513-MM5-016
CAP, MASTER CYLINDER (NISSIN)
$26.02¢13 013
1
#9
45517-166-006
HOLDER, MASTER CYLINDER
$15.74¢7 869
1
#10
45518-MM5-006
PLATE, DIAPHRAGM
$12.36¢6 181
1
#11
45520-MM5-006
DIAPHRAGM
$17.68¢8 838
1
#12
45530-KVY-911
MASTER CYLINDER SET (NISSIN)
$33.21¢16 606
1
#13
53175-MJF-305
LEVER, Right HANDLE (COO)
$27.21¢13 606
1
#14
90101-MBZ-G00
BOLT, FLANGE (6X22)
$1.85¢925
1
#15
90114-MA5-671
BOLT, HANDLE LEVER PIVOT
$11.03¢5 513
1
#16
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#17
90201-415-000
NUT, CAP (6MM)
$2.76¢1 381
1
#18
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#19
90651-MA5-671
CIRCLIP
$3.10¢1 550
1
#20
93600-04012-0G
SCREW, FLAT (4X12)
$1.16¢581
1
#20
93600-04012-1G
SCREW, FLAT (4X12)
$1.16¢581
1
#21
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#21
93893-04012-17
SCREW-WASHER (4X12)
$1.72¢862
1
#22
96001-06010-07
BOLT, FLANGE (6X10)
$2.09¢1 044
1
