HANDLE LEVER SWITCH CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

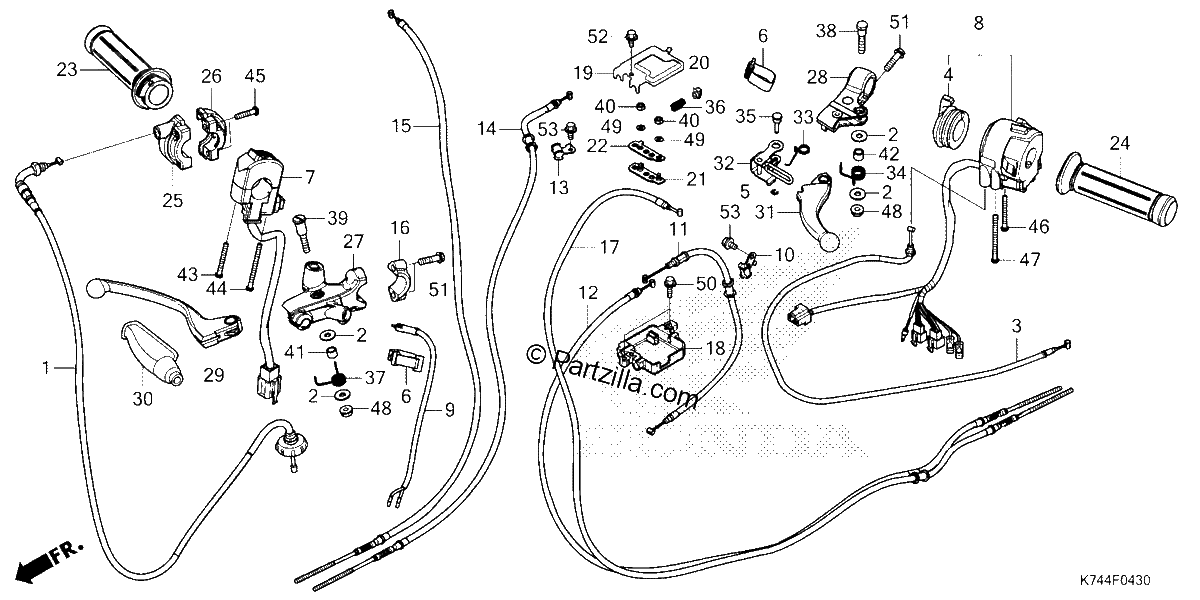

Diagrama de HANDLE LEVER SWITCH CABLE

Repuestos

#001
06179-K74-A00
CABLE SET, THROTTLE
$9.66¢4 830
1
#002
17238-K0L-D00
WASHER, BRACKET (6MM)
$0.26¢132
1
#003
17950-K74-A01
CABLE, CHOKE
$3.90¢1 949
1
#004
17962-K74-A01
LEVER, CHOKE
No Disponible
1
#005
30158-GW3-980
E-RING (3MM)
$1.28¢638
1
#006
32161-KSP-920
BAND B1, WIRE
$0.11¢57
1
#007
35130-K74-A01
SWITCH ASSY., STARTER & ENGINESTOP
$48.27¢24 133
1
#008
35200-K74-A01
SWITCH ASSY., TURN SIGNAL
$47.69¢23 845
1
#009
35340-KZA-W01
SWITCH ASSY., FR. STOP
$1.07¢535
1
#010
43155-K74-A00
CLAMP, RR. BRAKE CABLE
$2.75¢1 374
1
#011
43440-K74-A01
CABLE, RR. BRAKE FIRST
$3.94¢1 972
1
#012
43450-K74-A01
CABLE, RR. BRAKE SECOND
$5.57¢2 783
1
#013
45155-K74-A00
CLAMP, FR. BRAKE CABLE
$2.81¢1 403
1
#014
45440-K74-A01
CABLE, FR. BRAKE SECOND
$5.67¢2 835
1
#015
45440-K74-N61
CABLE, FR. BRAKE
$5.26¢2 628
1
#016
45517-KCW-870
HOLDER, MASTER CYLINDER
$11.65¢5 825
1
#017
46620-K74-A01
CABLE, BRAKE LOCK
$6.08¢3 042
1
#018
47601-K74-A00
BRACKET, BRAKE
$6.69¢3 347
1
#019
47602-K74-A00
COVER, BRACKET
$3.06¢1 529
1
#020
47605-K83-D00
STOPPER, EQUALIZER
$0.39¢196
1
#021
47650-K74-A00
PLATE A, EQUALIZER
$2.33¢1 167
1
#022
47652-K74-A00
PLATE B, EQUALIZER
$1.92¢960
1
#023
53146-K74-A00
GRIP, THROTTLE
$2.13¢1 064
1
#024
53166-KPL-901
GRIP, L. HANDLE
$1.15¢575
1
#025
53167-KWF-900
HOUSING, THROTTLE (UPPER)
$0.60¢299
1
#026
53168-KTE-910
HOUSING, THROTTLE (LOWER)
$0.66¢328
1
#027
53171-K74-A00
BRACKET, R. HANDLE LEVER
$5.13¢2 565
1
#028
53172-K74-N00
BRACKET, L. HANDLE LEVER
$3.09¢1 547
1
#029
53175-K74-A00
LEVER, R. HANDLE
$4.42¢2 208
1
#030
53176-K74-A00
COVER, R. HANDLE LEVER
$0.24¢121
1
#031
53178-K74-A00
LEVER, BRAKE LOCK
$4.08¢2 041
1
#032
53181-K74-A00
BRACKET, BRAKE LOCK
$3.22¢1 610
1
#033
53182-K74-A00
SPRING, LEVER RETURN
$0.47¢236
1
#034
53183-K74-A00
SPRING, L. HANDLE LEVER RETURN
$0.34¢173
1
#035
53183-K74-N00
PIN, PARKING LEVER PIVOT
$0.21¢104
1
#036
53188-K24-900
SPRING, DELAY
$0.26¢132
1
#037
53199-K74-A00
SPRING, BRAKE LEVER RETURN
$0.21¢104
1
#038
90101-K74-A00
BOLT, HANDLE LEVER PIVOT
$0.39¢196
1
#039
90113-K74-A00
BOLT, HANDLE LEVER PIVOT
$0.66¢328
1
#040
90304-KPL-900
NUT, HEX. (5MM)
$0.13¢63
1
#041
90501-K74-A00
COLLAR (6MM)
$0.47¢236
1
#042
90503-K74-A00
COLLAR (6MM)
$0.59¢293
1
#043
93500-04032-0G
SCREW, PAN (4X32)
$0.56¢282
1
#044
93500-04045-0G
SCREW, PAN (4X45)
$1.02¢512
1
#045
93500-05022-0G
SCREW, PAN (5X22)
$1.09¢546
1
#046
93892-05035-07
SCREW-WASHER (5X35)
$1.28¢638
1
#047
93892-05045-07
SCREW-WASHER (5X45)
$1.53¢765
1
#048
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
#049
94101-05800
WASHER, PLAIN (5MM)
$1.17¢586
1
#050
95701-06020-08
BOLT, FLANGE (6X20)
$0.44¢218
1
#051
95701-06022-00
BOLT, FLANGE (6X22)
$2.13¢1 064
1
#052
96001-06012-00
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#053
96001-06012-08
BOLT, FLANGE (6X12)
$0.61¢305
1
