PEDAL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

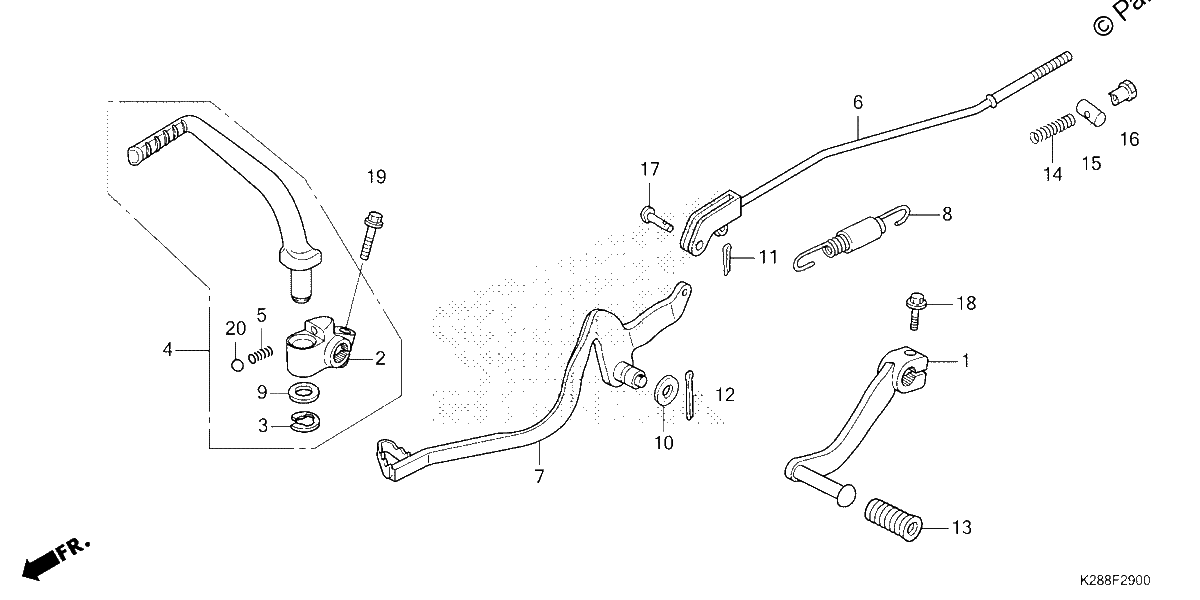

Diagrama de PEDAL

Repuestos

#001
24701-K28-305
PEDAL, GEARSHIFT (COO)
$39.86¢19 929
1
#001
24701-K28-910
PEDAL, GEARSHIFT
$39.86¢19 929
1
#002
28241-K28-910
JOINT, KICK ARM
$53.96¢26 979
1
#003
28293-333-000
CLIP, KICK STARTER ARM
$3.16¢1 581
1
#004
28300-K28-305
ARM ASSY., KICK STARTER (COO)
$132.23¢66 114
1
#004
28300-K28-910
ARM Assembly., KICK STARTER
$132.23¢66 114
1
#005
28333-KK0-000
SPRING, KICK STARTER
$2.98¢1 489
1
#006
43451-K28-910
ROD, RR. BRAKE
$17.57¢8 786
1
#007
46500-K28-910
PEDAL, BRAKE
$75.67¢37 835
1
#008
46513-KRH-900
SPRING SET, BRAKE PEDAL
$12.68¢6 342
1
#009
90505-KRM-860
WASHER (15.5X22)
$0.39¢196
1
#010
94101-10000
WASHER, PLAIN (10MM)
$1.36¢678
1
#011
94201-20120
PIN, SPLIT (2.0X12)
$1.17¢586
1
#012
94201-20150
PIN, SPLIT (2.0X15)
$1.23¢615
1
#013
95011-40000
RUBBER, CHANGE PEDAL
$1.49¢747
1
#014
95014-73100
SPRING A, BRAKE ROD
$1.53¢765
1
#015
95015-32001
JOINT B, BRAKE ARM
$1.12¢558
1
#016
95015-42000
NUT B, BRAKE ROD ADJUSTING
$2.28¢1 138
1
#017
95015-53000
PIN C, JOINT
$3.42¢1 708
1
#018
95701-06020-08
BOLT, FLANGE (6X20)
$0.44¢218
1
#019
95701-08028-08
BOLT, FLANGE (8X28)
$2.48¢1 242
1
#020
96211-08000
BALL, STEEL (#8) (1/4)
$1.47¢736
1
