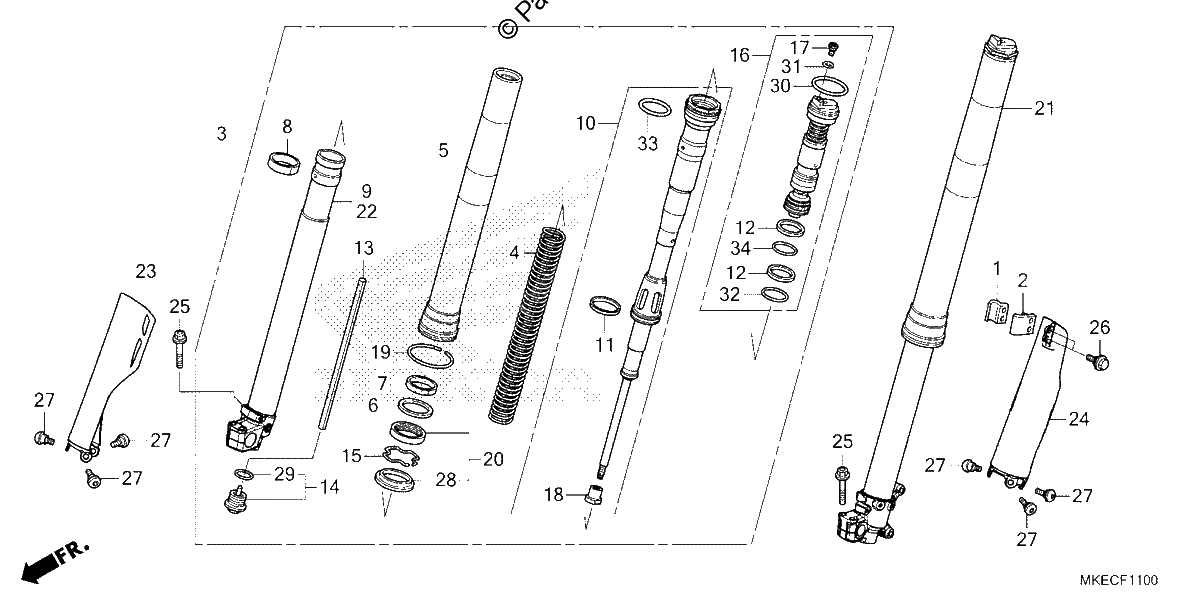

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CLAMP A, FR. BRAKE HOSE
$7.08¢3 542
#002
CLAMP B, FR. BRAKE HOSE
$5.22¢2 610
#003
FORK SET, R. FR. (TYPE1) (WL)
$2061.69¢1 030 843
#003
FORK SET, R. FR. (TYPE1) (WL)
$2696.51¢1 348 254
#004
SPRING, FR. FORK (5.2N/MM)
$133.84¢66 919
#004
SPRING, Front FORK (5.0N/MM)
$132.16¢66 079
#004
SPRING, FR. FORK (4.8N/MM)
$131.93¢65 964
#005
TUBE (OUTER)
$739.28¢369 639
#006
RING, BACK-UP
$9.31¢4 658
#007
BUSH, GUIDE
$13.98¢6 992
#008
BUSH, SLIDER
$13.75¢6 877
#009
PIPE, R. SLIDE
$742.31¢371 157
#010
DAMPER, Front.
$481.56¢240 781
#011
BUSH B, SLIDER
$13.17¢6 584
#012
BUSH, SLIDER
$16.25¢8 125
#013
COLLAR, REBOUND NEEDLE
$13.77¢6 883
#014
BOLT, CENTER
$41.73¢20 867
#015
RING, OIL SEAL STOP
$4.17¢2 087
#016
BOLT ASSY., FR. FORK
$247.81¢123 907
#016
BOLT ASSY., FR. FORK
$245.29¢122 648
#017
BOLT, PLUG
$6.92¢3 461
#018
NUT, LOCK
$13.97¢6 986
#019
RING, WEAR
$8.61¢4 307
#020
SEAL SET, FR. FORK
$28.21¢14 105
#021
FORK SET, L. FR. (TYPE1) (WL)
$2061.69¢1 030 843
#021
FORK SET, L. FR. (TYPE1) (WL)
$2696.51¢1 348 254
#022
PIPE, L. SLIDE
$742.31¢371 157
#023
PROTECTOR SET, R. FR. FORK (TYPE1) (WL) (AVAIL.THROUGH CONTROLLED PARTORDER- SEE PIB#17170 TO ORDER)
$171.12¢85 560
#024
PROTECTOR SET, L. FR. FORK (TYPE1) (WL) (AVAIL.THROUGH CONTROLLED PARTORDER- SEE PIB#17170 TO ORDER)
$158.62¢79 310
#025
BOLT, FLANGE (8X40)
$2.53¢1 265
#026
BOLT, FLANGE (6MM)
$3.36¢1 679
#027
BOLT, PROTECTOR
$3.93¢1 967
#028
DUST SEAL
$13.57¢6 785
#029
O-RING (22.1X1.9)
$2.98¢1 489
#030
O-RING (42.2X2.4)
$6.59¢3 295
#031
O-RING (3.5X1.5)
$3.21¢1 604
#032
O-RING (35.5X2)
$2.84¢1 420
#033
O-RING (47.2X2.4)
$4.21¢2 105
#034
O-RING (32.7X3.5)
$3.75¢1 874
