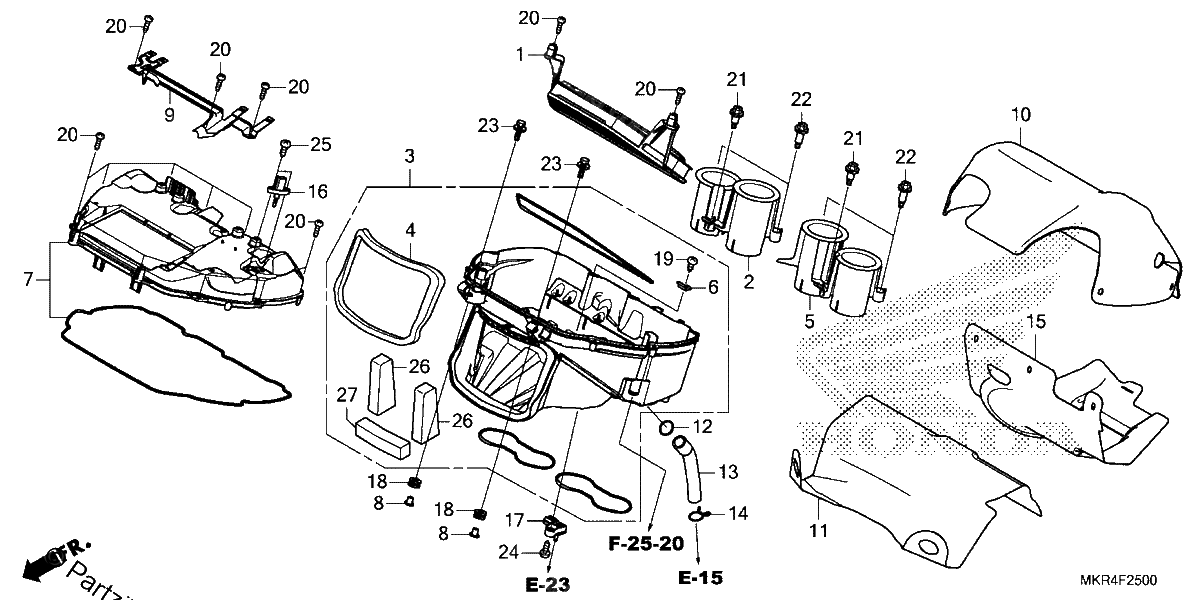

AIR CLEANER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
ELEMENT, AIR CLEANER
$71.73¢35 863
#002
FUNNEL, R. AIR
$54.68¢27 338
#003
HOUSING, AIR CLEANER (LOWER)
$234.00¢117 000
#004
SEAL A, AIR IN DUCT
$11.44¢5 719
#005
FUNNEL, L AIR
$54.68¢27 338
#006
RETAINER, AIR CLEANER ELEMENT
$6.67¢3 338
#007
HOUSING, AIR CLEANER (UPPER)
$147.89¢73 944
#008
COLLAR, AIR CLEANER MOUNTING
$5.06¢2 531
#009
PLATE, PGM-FI UNIT SETTING
$6.90¢3 450
#010
MAT, AIR CLEANER
$44.39¢22 194
#011
GUARD, AIR CLEANER HEAT
$110.45¢55 225
#012
CLIP, TUBE
$2.89¢1 444
#013
TUBE, ENGINE BREATHER
$11.34¢5 669
#014
CLIP, BREATHER TUBE
$3.45¢1 725
#015
GUARD, FUEL TANK HEAT
$88.15¢44 075
#016
SENSOR ASSY., AIR TEMPERATURE
$51.75¢25 875
#017
SENSOR A, MASTER POWER PRESSURE
$261.02¢130 512
#018
RUBBER, SIDE COVER
$1.80¢900
#019
SCREW, TAPPING (5X12) (DELTA PT)
$2.24¢1 119
#020
SCREW, TAPPING (4X18) (DELTA PT)
$2.64¢1 319
#021
SCREW, PAN (5MM)
$4.84¢2 419
#022
SCREW, PAN (5MM)
$3.86¢1 931
#023
BOLT-WASHER (6X28)
$1.21¢606
#024
SCREW, TAPPING (5X20)
$1.06¢531
#025
SCREW, TAPPING (5X20)
$1.80¢900
#026
MAT A, AIR CLEANER HOUSING (LOWER)
$8.88¢4 438
#027
MAT B, AIR CLEANER HOUSING (LOWER)
$6.44¢3 219
