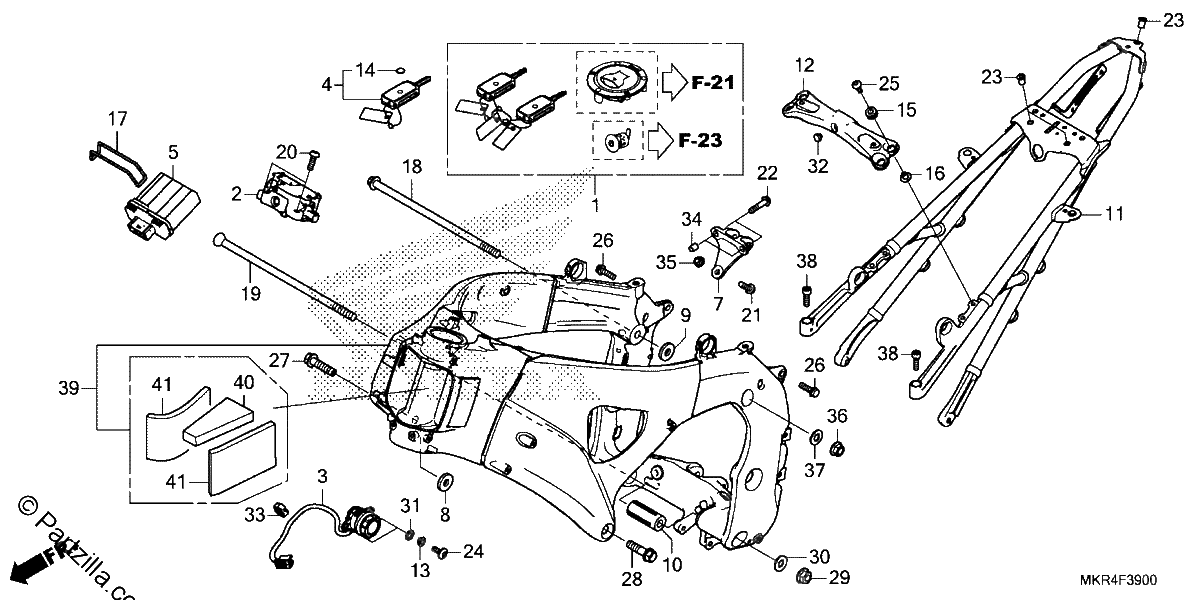

FRAME
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
LOCK SET, SMART
No Disponible
#001
LOCK SET, SMART
$610.51¢305 256
#002
LOCK ASSY., STEERING ELECTRIC
$508.56¢254 281
#003
SWITCH Assembly., IGNITION
$98.84¢49 419
#004
FOB Assembly. (BLANK)
$200.39¢100 194
#004
FOB Assembly.
$200.39¢100 194
#005
CONTROL UNIT, SMART
No Disponible
#007
BRACKET, RR. CUSHION
$55.84¢27 919
#008
COLLAR A, ENGINE HANGER
$9.07¢4 538
#009
COLLAR C, ENGINE HANGER
$5.67¢2 838
#010
COLLAR D, ENGINE HANGER
$47.63¢23 813
#011
RAIL, SEAT *NHA86M*(MAT BALLISTIC BLACK)
$1128.61¢564 306
#012
CROSS, SEAT RAIL
$16.92¢8 462
#013
COLLAR, REFLECTOR
$1.19¢594
#014
BATTERY (CR2032) (PANASONIC) (MSDS)
$5.74¢2 869
#014
BATTERY (CR2032)
$9.07¢4 538
#014
BATTERY (CR2032) (MURATA) (MSDS)
$7.38¢3 688
#015
RUBBER, Rear FENDER CUSHION
$4.53¢2 263
#016
COLLAR, TAILLIGHT MOUNTING
$4.95¢2 475
#017
BAND, TOOL
$1.60¢800
#018
BOLT, FLANGE (12X285.5)
$24.06¢12 031
#019
BOLT, SPECIAL (12X317.5)
$33.17¢16 588
#020
BOLT, ONE-WAY (8MM)
$3.65¢1 825
#021
BOLT, FLANGE (8X28)
$3.52¢1 763
#022
BOLT, FLANGE (8X35)
$3.52¢1 763
#023
NUT, COWL SETTING (5MM)
$5.47¢2 738
#024
BOLT, SPECIAL (6X16)
$2.89¢1 444
#025
SCREW, PAN (6X20)
$2.75¢1 375
#026
BOLT, FLANGE (8X28)
$3.52¢1 763
#027
BOLT, FLANGE (12X50)
$20.04¢10 019
#028
BOLT, FLANGE (12X45)
$20.04¢10 019
#029
NUT, FLANGE (12MM)
$2.24¢1 119
#030
WASHER, PLAIN (12MM)
$3.95¢1 975
#031
WASHER, RUBBER
$1.74¢869
#032
RUBBER, SEPARATOR MOUNTING
$5.20¢2 600
#033
CLAMP, HARNESS
$1.68¢838
#034
PIN A, DOWEL (10X14)
$2.94¢1 469
#034
PIN, DOWEL (10X14)
$2.94¢1 469
#035
NUT, FLANGE (8MM)
$1.15¢575
#036
NUT, FLANGE (12MM)
$1.27¢638
#037
WASHER, PLAIN (12MM)
$1.57¢788
#038
BOLT, SOCKET (8X25)
$2.60¢1 300
#039
FRAME SET *NHA86M*(MAT BALLISTIC BLACK)
$3334.43¢1 667 213
#040
MAT A, AIR DUCT
$7.18¢3 588
#041
MAT B, AIR DUCT
$4.81¢2 406
