CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

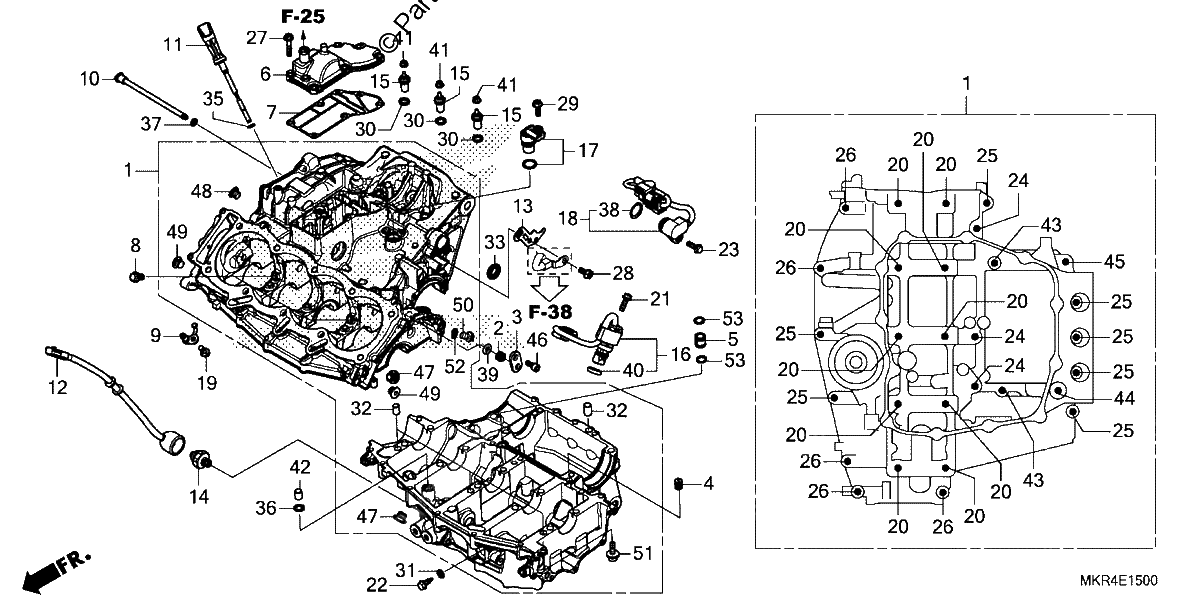

Diagrama de CRANKCASE

Repuestos

#001
11000-MKR-D60
CRANKCASE SET
$3591.66¢1 795 831
1
#002
11202-MKR-D10
COLLAR, SEALING
$7.01¢3 506
1
#003
11205-MKR-D10
PLATE, SEALING COLLAR STOPPER
$2.76¢1 381
1
#004
11206-MKR-D10
ORIFICE
$8.11¢4 056
1
#005
11207-MKR-D10
COLLAR, ORIFICE
$9.20¢4 600
1
#006
11410-MKR-D10
COVER, STARTER GEAR
$105.92¢52 963
1
#007
11415-MKR-D11
GASKET, STARTER GEAR COVER
$10.38¢5 188
1
#008
15290-6C1-A01
BOLT, OIL JET
$39.98¢19 988
1
#009
15330-MKR-D11
JET, PISTON
$29.88¢14 938
1
#010
15350-MFL-000
PIPE, TRANSMISSION OIL JET
$61.54¢30 769
1
#011
15750-MKR-D10
DIPSTICK, OIL
$25.25¢12 625
1
#012
32101-MKR-D10
SUB-HARNESS, ENGINE
$11.85¢5 925
1
#013
32154-MKR-D10
STAY, STROKE SENSOR
$5.04¢2 519
1
#014
35500-MJ4-024
SWITCH Assembly., OIL PRESSURE (DENSO)
$49.28¢24 638
1
#015
35600-MKF-D41
SWITCH ASSY., NEUTRAL
$27.85¢13 925
1
#016
37510-MKR-D10
SENSOR, CRANK
$235.23¢117 613
1
#017
37700-MJE-D01
SENSOR Assembly., SPEED (TDK-EPC)
$33.05¢16 525
1
#018
38800-MKR-D11
SENSOR ASSY., ANGLE
$264.71¢132 356
1
#019
90001-MJP-G50
BOLT, FLANGE SOCKET (6X14)
$2.70¢1 350
1
#020
90001-MKR-D11
BOLT, FLANGE (9X120)
$9.65¢4 825
1
#021
90002-MJP-G50
BOLT, FLANGE SOCKET (6X18)
$3.04¢1 519
1
#022
90004-MKR-D10
BOLT, SPECIAL (6X18)
$2.69¢1 344
1
#023
90011-MGE-D00
BOLT, KNOCK (6MM)
$3.71¢1 856
1
#024
90017-MEL-000
BOLT, FLANGE (7X60)
$2.97¢1 487
1
#025
90017-MFL-000
BOLT, FLANGE (7X50)
$2.88¢1 438
1
#026
90019-MFA-D00
BOLT, FLANGE (7X40)
$2.60¢1 300
1
#027
90027-GHB-700
BOLT, FLANGE (6X30)
$2.97¢1 487
1
#028
90030-GHB-630
BOLT, FLANGE (6X14)
$2.88¢1 438
1
#029
90031-GHB-650
BOLT, FLANGE (6X18)
$2.76¢1 381
1
#030
90443-MJ6-000
WASHER, NEUTRAL
$2.48¢1 238
1
#031
90463-ML7-000
WASHER, SEALING (6.5MM)
$3.65¢1 825
1
#032
90701-MV9-670
PIN, DOWEL (10X16)
$5.21¢2 606
1
#033
91203-KA4-771
OIL SEAL (14X22X5) (NOK)
$4.63¢2 313
1
#035
91303-MJ0-003
O-RING (6.3X2.3) (ARAI)
$4.91¢2 456
1
#036
91305-422-000
O-RING (9.8X2.4)
$3.34¢1 669
1
#037
91307-422-000
O-RING (4.8X1.9)
$3.36¢1 681
1
#037
91313-MA6-005
O-RING (4.8X1.9) (NOK)
$3.36¢1 681
1
#038
91310-MGE-D01
O-RING (16.5X2.5)
$6.19¢3 094
1
#039
91314-PC9-004
O-RING (8.5X1.9) (NOK)
$3.91¢1 956
1
#040
91333-PNC-006
O-RING
$4.24¢2 119
1
#041
94050-04000
NUT, FLANGE (4MM)
$1.57¢788
1
#042
94301-10120
PIN, DOWEL (10X12)
$2.94¢1 469
1
#043
95701-08055-00
BOLT, FLANGE (8X55)
$2.92¢1 463
1
#044
95701-08080-00
BOLT, FLANGE (8X80)
$2.21¢1 106
1
#045
95701-10060-00
BOLT, FLANGE (10X60)
$2.54¢1 269
1
#046
96600-06014-00
BOLT, SOCKET (6X14)
$5.09¢2 544
1
#047
90002-RGA-000
BOLT, SEALING (12X8)
$8.20¢4 100
1
#048
90005-MAZ-000
BOLT, SOCKET (10MM)
$2.91¢1 456
1
#049
90005-MJP-G80
BOLT, SOCKET (10MM)
$4.77¢2 387
1
#050
90019-MAT-000
BOLT, SEALING (8MM)
$8.69¢4 344
1
#051
90102-VK4-000
BOLT, FLANGE SOCKET (6X20)
$1.23¢613
1
#052
90475-703-000
WASHER C (8MM)
$1.38¢688
1
#053
91305-R7L-003
O-RING (10.6X1.9)
$4.24¢2 119
1
