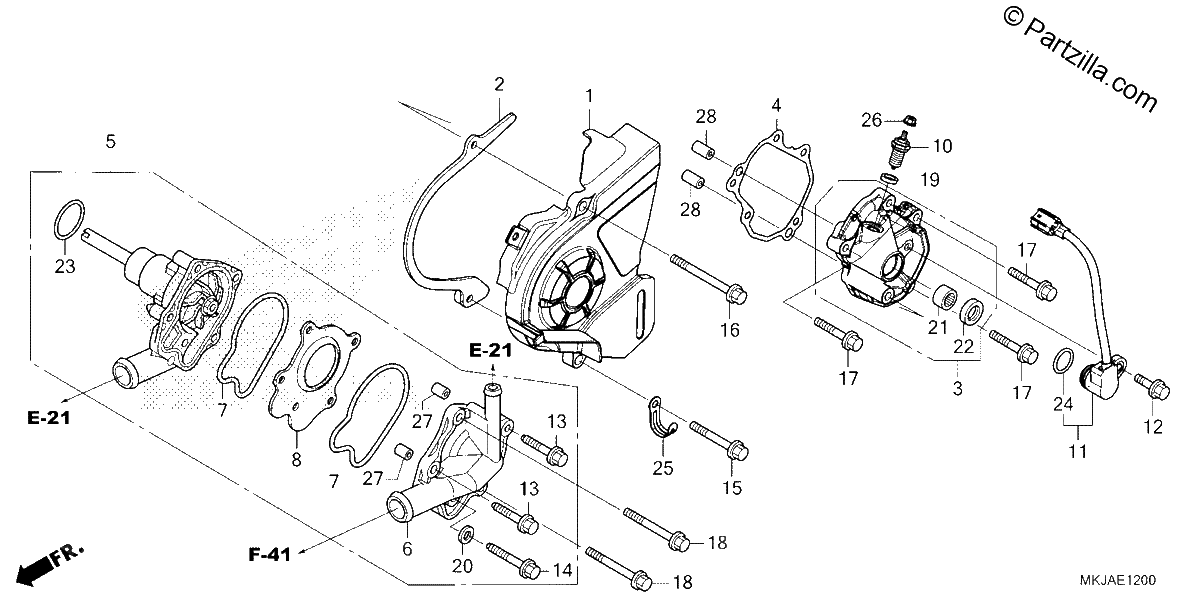

WATER PUMP
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
COVER, L. RR.
$58.27¢29 135
#002
PLATE, DRIVE CHAIN GUIDE
$22.88¢11 442
#003
COVER, CHANGE (NOT AVAILABLE)
$74.11¢37 053
#004
GASKET, CHANGE COVER
$7.41¢3 703
#005
WATER PUMP
$310.91¢155 457
#006
COVER, WATER PUMP
$110.69¢55 344
#007
GASKET, WATER PUMP
$7.15¢3 577
#008
PLATE, WATER PUMP
$8.27¢4 134
#010
SWITCH ASSY., NEUTRAL
$25.62¢12 811
#011
SENSOR ASSY., ANGLE (NOT AVAILABLE)
$238.52¢119 261
#012
BOLT, KNOCK (6MM) (NOT AVAILABLE)
$5.01¢2 507
#013
BOLT, FLANGE (6X25) (CT200) (S-NSHF)
$5.13¢2 565
#014
BOLT, FLANGE (6X32) (CT200) (S-NSHF)
$5.22¢2 610
#015
BOLT, FLANGE (6X40) (S-SHDR)
$3.13¢1 564
#016
BOLT, FLANGE (6X75) (S-SHDR)
$3.86¢1 932
#017
BOLT, FLANGE (6X28) (S-NSHF)
$1.30¢650
#018
BOLT, FLANGE (6X45) (S-NSHF)
$3.00¢1 501
#019
WASHER, NEUTRAL
$2.28¢1 138
#020
WASHER, SEALING (6.5MM)
$3.36¢1 679
#021
BEARING, NEEDLE (14MM) (TOYO)
$29.03¢14 513
#022
OIL SEAL (14X22X5)
$4.25¢2 128
#023
O-RING (32.95X2.62) (ARAI)
$3.36¢1 679
#024
O-RING (16.5X2.5)
$5.69¢2 846
#025
CLIP, HARNESS (4X50)
$2.62¢1 311
#026
NUT, FLANGE (4MM)
$1.45¢724
#027
PIN, DOWEL (8X10)
$2.66¢1 328
#028
PIN, DOWEL (8X14)
$2.66¢1 328
