CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

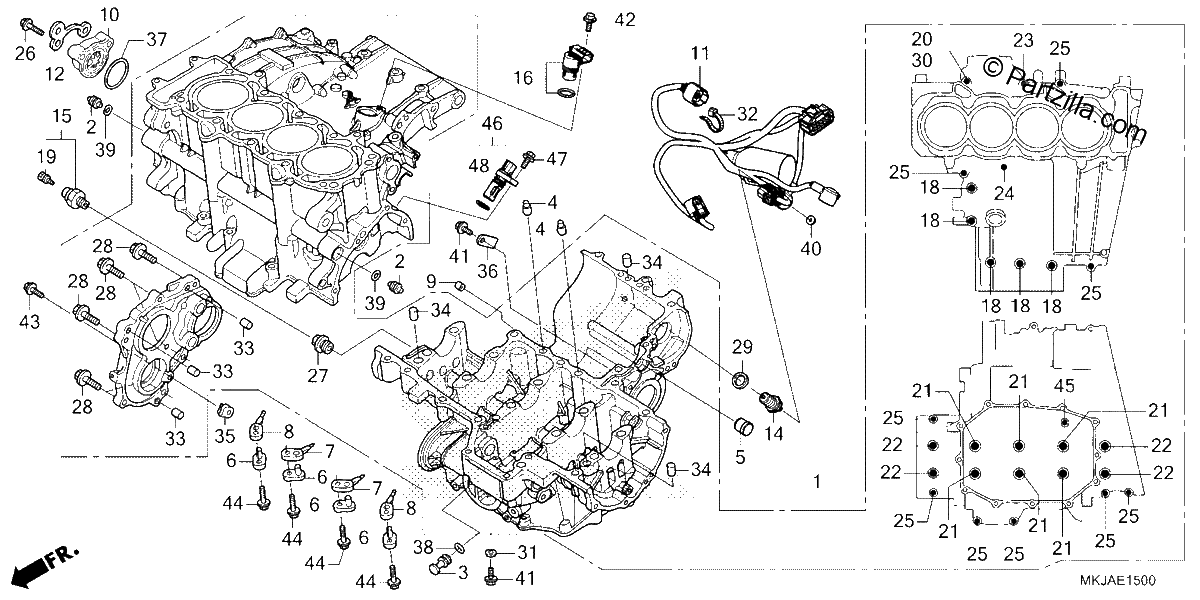

Diagrama de CRANKCASE

Repuestos

#001
11000-MKJ-E50
CRANKCASE SET
$3598.26¢1 799 129
1
#002
11103-MEL-000
PLUG, SEALING
$9.90¢4 951
1
#003
11104-MEL-000
PLUG, OIL COOLER
$8.16¢4 082
1
#004
11105-MEL-000
ORIFICE (1.6MM)
$9.11¢4 554
1
#005
11105-MKJ-D01
PLUG, CRANKCASE (NOT AVAILABLE)
$25.36¢12 679
1
#006
11145-MEL-000
BUSH, ORIFICE
$24.25¢12 127
1
#007
11146-MEL-000
ORIFICE A (#100)
$27.15¢13 576
1
#008
11147-MEL-000
ORIFICE B (#100)
$27.15¢13 576
1
#009
11206-MEL-000
ORIFICE (1.4MM)
$2.68¢1 340
1
#010
11360-MFN-D00
FINDER, OIL LEVEL
$36.25¢18 124
1
#011
32101-MKJ-E50
SUB-HARNESS, ENGINE
$97.92¢48 961
1
#012
32114-MFN-D00
GUIDE, OIL PRESSURE SWITCH WIRE
$4.34¢2 168
1
#014
35600-MKF-D41
SWITCH ASSY., NEUTRAL
$25.62¢12 811
1
#015
37240-P13-013
SWITCH ASSY., OIL PRESSURE (DENSO)
$47.89¢23 943
1
#016
37700-MFL-761
SENSOR ASSY., SPEED
$88.04¢44 022
1
#018
90001-MFA-D00
BOLT, FLANGE (8X55)
$1.71¢857
1
#019
90002-PA6-003
BOLT-WASHER (4X8) (DENSO)
$6.93¢3 467
1
#020
90004-MFA-D00
BOLT, SPECIAL (7X42.5)
$3.04¢1 518
1
#021
90015-MEL-003
BOLT, FLANGE (9X105)
$11.40¢5 698
1
#022
90016-MEL-003
BOLT, FLANGE (9X125)
$11.40¢5 698
1
#023
90017-MFA-D00
BOLT, FLANGE (7X60)
$3.13¢1 564
1
#024
90018-MFA-D00
BOLT, FLANGE (7X80)
$4.31¢2 156
1
#025
90019-MFA-D00
BOLT, FLANGE (7X40)
$2.39¢1 196
1
#026
90028-GHB-690
BOLT, FLANGE (6X28) (S-NSHF)
$1.30¢650
1
#027
90048-MFL-000
BOLT, SEALING (22MM)
$11.26¢5 629
1
#028
90133-MEL-000
BOLT, FLANGE (8X30)
$3.92¢1 961
1
#029
90443-MJ6-000
WASHER, NEUTRAL
$2.28¢1 138
1
#030
90447-KE1-000
WASHER, SEALING (7MM)
$3.15¢1 576
1
#031
90463-ML7-000
WASHER, SEALING (6.5MM)
$3.36¢1 679
1
#032
90650-KV6-003
BAND, WIRE (95MM)
$3.47¢1 737
1
#033
90701-MEL-000
PIN, DOWEL (8X14)
$2.96¢1 478
1
#034
90701-MV9-670
PIN, DOWEL (10X16)
$4.80¢2 398
1
#035
91011-MEL-000
PLATE A, BEARING SETTING
$6.61¢3 306
1
#036
91012-MEL-000
PLATE B, BEARING SETTING
$2.28¢1 138
1
#037
91301-MEE-003
O-RING (32X1.7)
$2.24¢1 121
1
#038
91302-ZE9-000
O-RING (11.8X2.4)
$2.90¢1 449
1
#038
91302-ZE9-003
O-RING (11.8X2.4)
$2.90¢1 449
1
#039
91303-377-000
O-RING (13.8X2.5)
$3.82¢1 909
1
#040
94050-04000
NUT, FLANGE (4MM)
$1.45¢724
1
#041
95701-06014-00
BOLT, FLANGE (6X14)
$1.13¢564
1
#042
95701-06018-00
BOLT, FLANGE (6X18)
$1.92¢960
1
#043
95701-06020-00
BOLT, FLANGE (6X20)
$2.09¢1 047
1
#044
95701-06025-00
BOLT, FLANGE (6X25)
$2.13¢1 064
1
#045
95701-08040-00
BOLT, FLANGE (8X40)
$1.41¢707
1
#046
37500-K26-G81
SENSOR ASSY., CRANK
No Disponible
1
#047
90017-GHB-640
BOLT, FLANGE (6X18) (NSHF)
$2.62¢1 311
1
#048
91333-PNC-006
O-RING
$3.90¢1 949
1
