FRONT BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

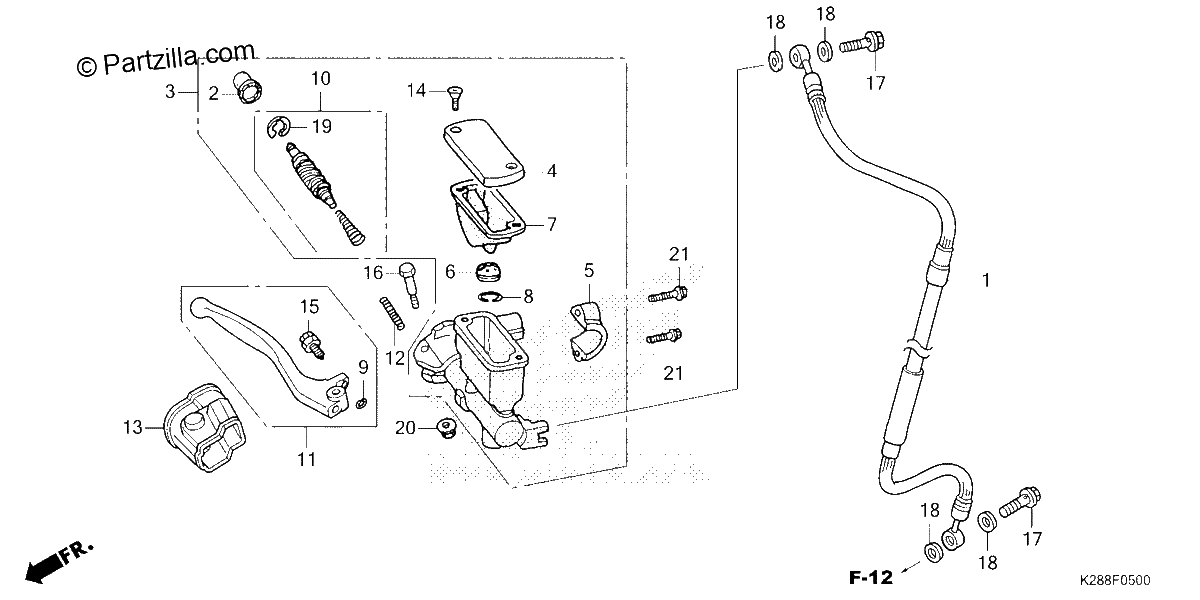

Diagrama de FRONT BRAKE MASTER CYLINDER

Repuestos

#001
45125-K28-A61
HOSE, Front BRAKE
$149.16¢74 581
1
#002
45504-KN5-006
BOOT
$14.57¢7 288
1
#003
45510-K28-305
MASTER CYLINDER SUB-ASSY., FR. (COO)
$309.20¢154 600
1
#003
45510-K28-911
MASTER CYLINDER SUB-ASSY., FR.(NISSIN)
$309.20¢154 600
1
#004
45513-K28-911
CAP, MASTER CYLINDER
$36.95¢18 475
1
#005
45517-GW0-751
HOLDER, MASTER CYLINDER
$14.40¢7 200
1
#006
45518-KA3-731
SEPARATOR
$14.15¢7 075
1
#007
45520-K28-911
DIAPHRAGM
$17.07¢8 538
1
#008
45523-KA3-731
RING
$3.65¢1 825
1
#009
45523-MEB-003
RING
$1.21¢606
1
#010
45530-KPS-901
MASTER CYLINDER SET
$143.91¢71 956
1
#011
53171-K28-305
LEVER, R. HANDLEBAR (COO)
$39.76¢19 881
1
#011
53170-K28-911
LEVER SET, R. HANDLE
$39.76¢19 881
1
#012
53174-KN5-006
SPRING, BRAKE LEVER
$3.65¢1 825
1
#013
53176-K28-911
COVER, R. HANDLE LEVER
$27.01¢13 506
1
#014
90104-KRM-R80
SCREW, FLAT (4X12)
$1.16¢581
1
#014
93600-04012-0G
SCREW, FLAT (4X12)
$1.16¢581
1
#015
90111-MEB-003
BOLT SET, ADJUSTING
$4.97¢2 488
1
#016
90114-166-006
BOLT, HANDLE LEVER PIVOT
$7.88¢3 938
1
#017
90145-GW3-981
BOLT, OIL (10X22)
$5.19¢2 594
1
#018
90545-KCW-880
WASHER, OIL BOLT
$2.66¢1 331
1
#019
90651-MA5-671
CIRCLIP
$3.10¢1 550
1
#020
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#021
96001-06022-00
BOLT, FLANGE (6X22)
$1.60¢800
1
