FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

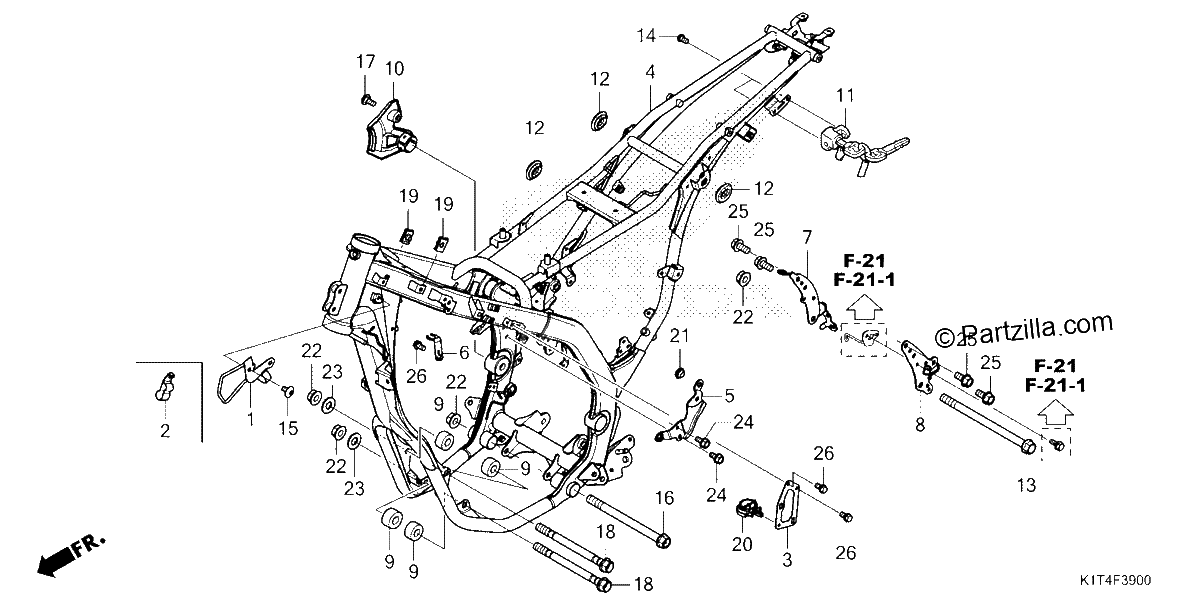

Diagrama de FRAME

Repuestos

#002
35205-K1T-E10
CLAMP, L HARNESS
$8.07¢4 037
1
#003
35206-KZZ-J00
STAY, TURN SIGNAL SWITCH CONNECTOR
$3.98¢1 988
1
#004
50100-K1T-E10ZA
FRAME *NH303M*(MAT AXIS GRAY METALLIC)
$1056.00¢528 000
1
#005
50189-K1T-E10
STAY, FR. MUFFLER
$13.81¢6 906
1
#006
50193-K1T-E10
STAY, STOP SWITCH
$3.89¢1 944
1
#007
50351-K1T-E10
PLATE, R. ENGINE HANGER
$36.70¢18 350
1
#008
50352-K1T-E10
PLATE, L ENGINE HANGER
$23.52¢11 763
1
#009
50361-K1T-E10
COLLAR, ENGINE HANGER
$2.41¢1 206
1
#010
50615-K1T-E10
GUARD, HEEL
$5.04¢2 519
1
#011
50710-KCZ-J71
HOLDER ASSY., HELMET
$51.76¢25 881
1
#012
83551-300-000
GROMMET, AIR CLEANER HOUSING
$4.45¢2 225
1
#013
90102-KZZ-900
BOLT, FLANGE (10X150)
$4.24¢2 119
1
#014
90105-KGA-B00
BOLT, ONE-WAY (6X10)
$3.11¢1 556
1
#015
90106-GBB-710
SCREW, PAN (6X10)
$1.63¢813
1
#016
90127-KR3-000
BOLT, FLANGE (10X130)
$11.15¢5 575
1
#017
90133-KPP-T00
SCREW, PAN (6X14)
$1.64¢819
1
#018
90156-K1T-E10
BOLT, FLANGE (10X120)
$3.46¢1 731
1
#019
90303-KZZ-J00
NUT, CLIP (6MM)
$1.64¢819
1
#020
90652-KZZ-901
CLIP
$2.24¢1 119
1
#021
90772-MJT-E00
RUBBER, STOPPER
$17.11¢8 556
1
#022
94050-10000
NUT, FLANGE (10MM)
$1.90¢950
1
#023
94101-10800
WASHER, PLAIN (10MM)
$2.41¢1 206
1
#024
95701-06012-07
BOLT, FLANGE (6X12)
$2.09¢1 044
1
#025
95701-08016-00
BOLT, FLANGE (8X16)
$2.31¢1 156
1
#026
96001-06010-00
BOLT, FLANGE (6X10)
$2.09¢1 044
1
