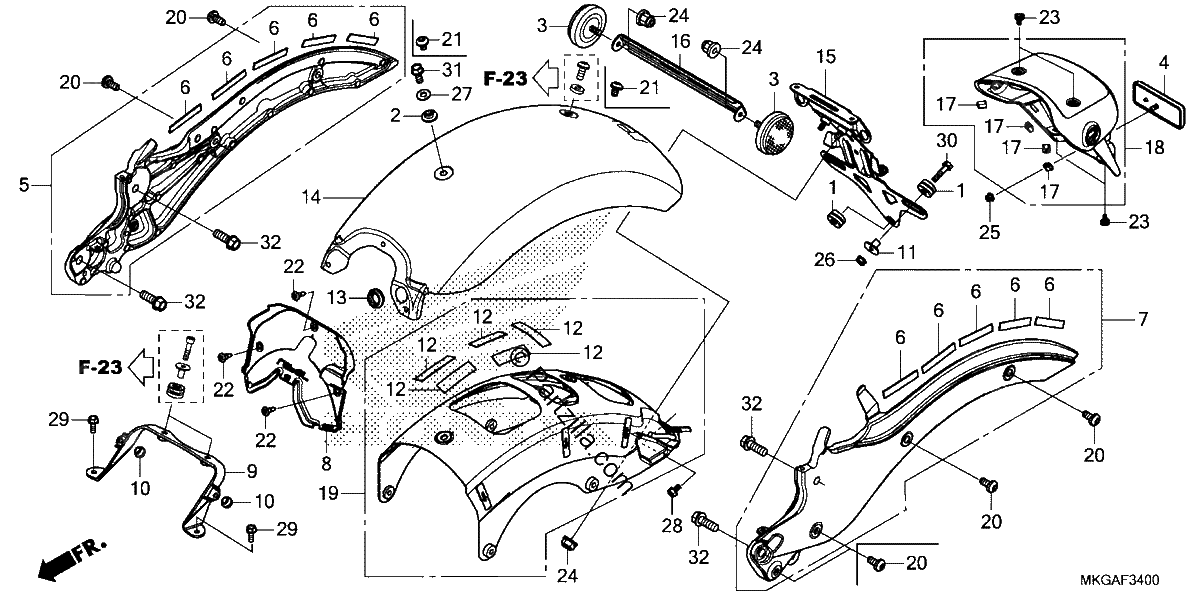

REAR FENDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
RUBBER, AIR CLEANER HOUSING MOUNTING
$3.36¢1 679
#003
REFLECTOR, Rear REFLEX (RED)
$14.26¢7 130
#004
REFLECTOR, REFLEX
$8.22¢4 111
#005
FRAME Assembly., Right Rear. NH105 (MAT BLACK)
$204.67¢102 333
#006
RUBBER, RR. FRAME
$1.38¢690
#007
FRAME ASSY., L. RR. *NH105*(MAT BLACK)
$205.62¢102 810
#008
BOX B, BATTERY
$16.39¢8 194
#009
STAY, SEAT MOUNTING
$22.34¢11 172
#010
RUBBER, LINK STOPPER
$5.04¢2 519
#011
COLLAR, Front FENDER (WHITE)
$5.49¢2 743
#012
RUBBER, Rear FENDER
$2.01¢1 006
#013
RUBBER, TAILLIGHT CODE
$3.42¢1 708
#014
FENDER SET, RR. (TYPE2) (WL)
$138.77¢69 385
#015
STAY, RR. FENDER A
$61.36¢30 682
#016
STAY, RR. SIDE REFLECTOR
$15.40¢7 699
#017
RUBBER, PROTECTOR
$3.36¢1 679
#018
FENDER ASSY. A, RR.
$25.69¢12 846
#019
PLATE ASSY., RR. FRAME
$382.01¢191 004
#020
BOLT, SOCKET SPECIAL (8X18)
$0.68¢339
#021
BOLT, SOCKET SPECIAL (8X12)
$0.77¢385
#022
CLIP, BUMPER SEAL
$5.27¢2 633
#023
BOLT, SPECIAL (5X10)
$1.38¢690
#024
NUT, U (6MM) (FUJI SEIMITSU)
$1.64¢822
#025
NUT, U (5MM)
$0.79¢397
#026
NUT, FLANGE (6MM)
$0.74¢368
#028
BOLT, FLANGE (6X10)
$1.92¢960
#029
BOLT, FLANGE (6X16)
$1.92¢960
#030
BOLT, FLANGE (6X25)
$2.13¢1 064
#032
BOLT, FLANGE (10X28)
$1.79¢897
