CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

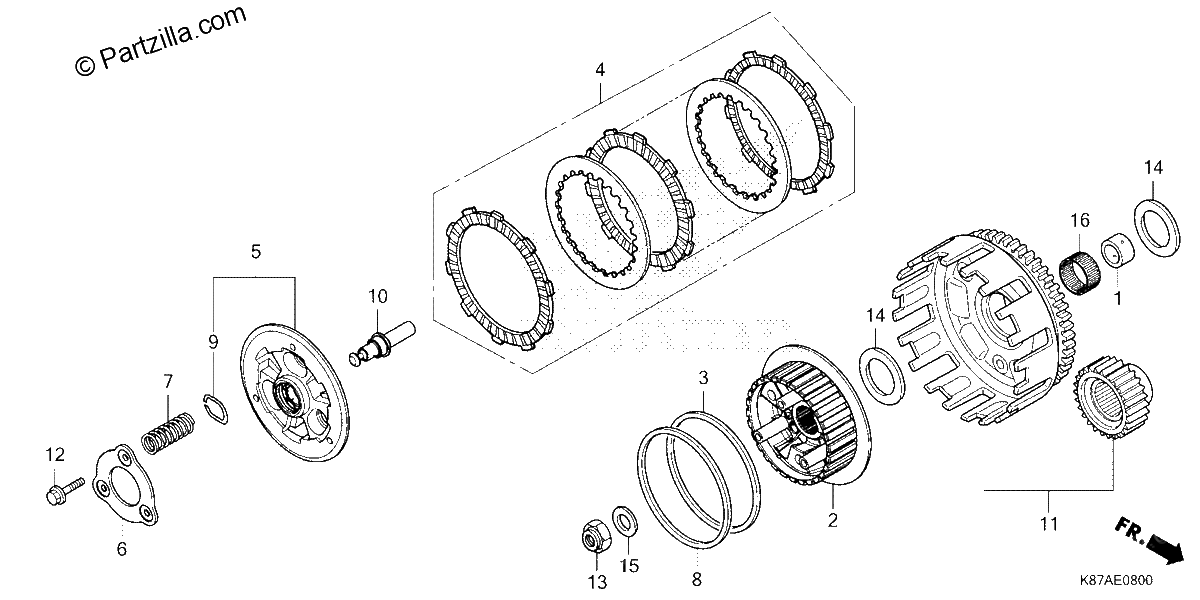

Diagrama de CLUTCH

Repuestos

#001
22116-K33-D00
GUIDE A, CLUTCH (OUTER) (WHITE)
$8.69¢4 344
1
#001
22117-K33-D00
GUIDE B, CLUTCH (OUTER) (BLUE)
$8.69¢4 344
1
#002
22121-K87-A31
CENTER, CLUTCH
$75.49¢37 744
1
#003
22125-ML7-000
SEAT, JUDDER SPRING
$12.49¢6 244
1
#004
22210-K87-305
DISK SET, CLUTCH
$80.97¢40 488
1
#005
22350-K87-A31
PLATE, CLUTCH PRESSURE
$93.01¢46 506
1
#006
22361-MKN-D11
PLATE, SETTING
$3.52¢1 763
1
#007
22401-K87-A31
SPRING, CLUTCH
$5.02¢2 512
1
#008
22402-K87-A31
SPRING, JUDDER
$20.02¢10 013
1
#009
22425-MJP-G51
SEAT, CLUTCH SPRING
$13.73¢6 863
1
#010
22847-KZZ-900
PIN, CLUTCH LIFTER
$10.41¢5 206
1
#011
23121-K87-305
GEAR SET, PRIMARY DRIVEN
$267.69¢133 844
1
#012
90008-KRM-840
BOLT, FLANGE (6X25)
$1.06¢531
1
#013
90201-KYJ-900
NUT, SPECIAL (16MM)
$4.33¢2 163
1
#014
90404-KVK-900
WASHER (20X40X2)
$3.65¢1 825
1
#015
90434-KPS-900
WASHER (16MM)
$2.56¢1 281
1
#016
91012-KYJ-901
BEARING, NEEDLE (28X33X16.8)
$7.66¢3 831
1
