AIR CLEANER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

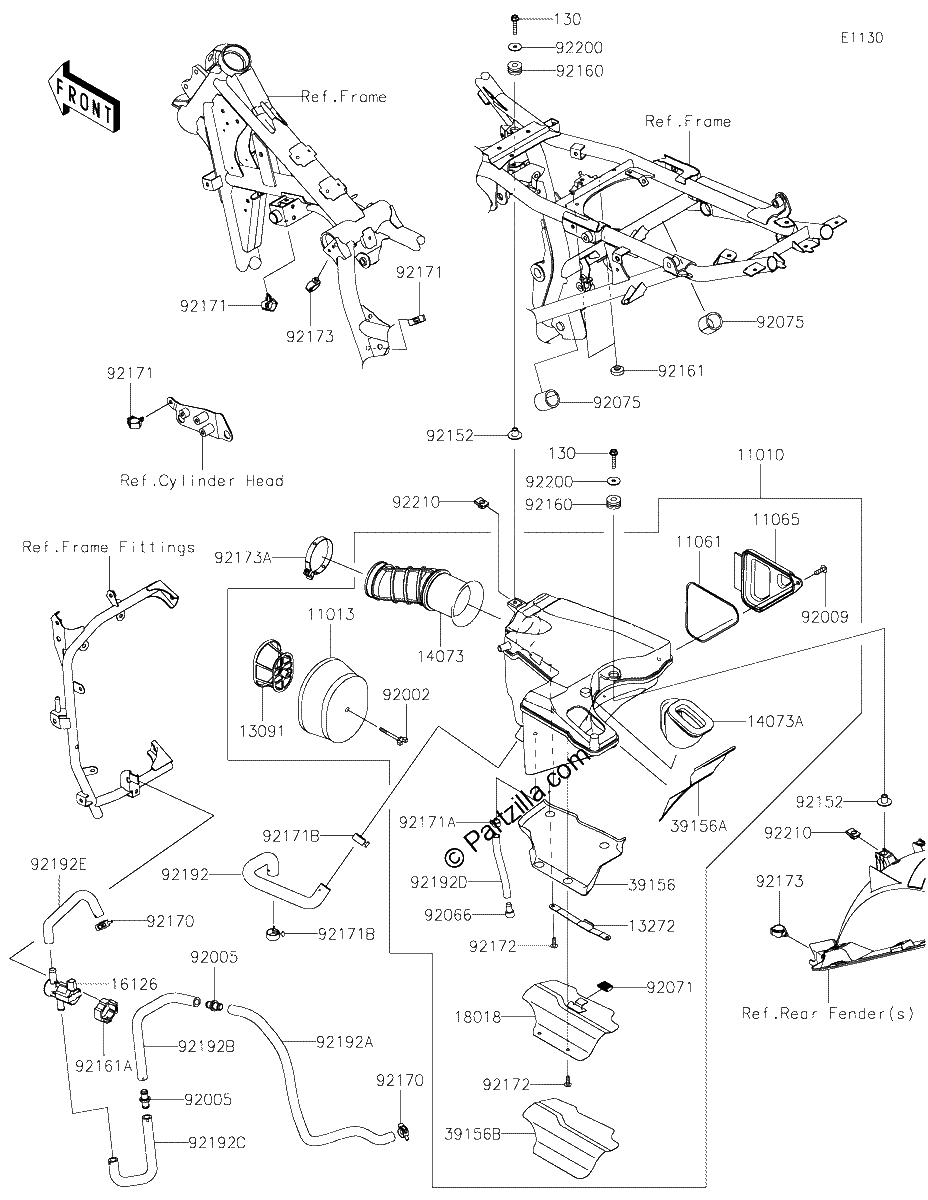

Diagrama de AIR CLEANER

Repuestos

#130
130BB0630
BOLT FLANGED,6X30
$4.05¢2 024
1
#11010
11010-1805
FILTER Assembly AIR
$294.53¢147 263
1
#11013
11013-1152
ELEMENT-AIR FILTER
$24.56¢12 282
1
#11061
11061-1393
GASKET
$1.83¢914
1
#11065
11065-1373
CAP
$8.16¢4 082
1
#13091
13091-1473
HOLDER
$30.52¢15 260
1
#13272
13272-3875
PLATE
$11.78¢5 888
1
#14073
14073-0993
DUCT
$36.51¢18 256
1
#14073A
14073-0994
DUCT
$32.45¢16 226
1
#16126
16126-0033
VALVE,AIR SWITCHING
$93.90¢46 949
1
#18018
18018-0641
PLATE-HEAT GUARD
$22.05¢11 023
1
#39156
39156-2760
PAD
$5.20¢2 599
1
#39156B
39156-2793
PAD
$2.45¢1 225
1
#39156A
39156-2761
PAD
$5.20¢2 599
1
#92002
92002-1904
BOLT
$9.04¢4 520
1
#92005
92005-1379
FITTING
$5.03¢2 513
1
#92009
92009-1460
SCREW
$2.68¢1 340
1
#92066
92066-0127
PLUG,DRAIN,8.5X15
$8.82¢4 410
1
#92071
92071-0786
GROMMET
$9.82¢4 910
1
#92075
92075-1906
DAMPER,25X31X30
$6.15¢3 076
1
#92152
92152-0547
COLLAR,6.5X10.5X13.1
$5.32¢2 662
1
#92160
92160-1162
DAMPER
$4.57¢2 283
1
#92161A
92161-0499
DAMPER,ASWV
$7.70¢3 852
1
#92161
92161-0336
DAMPER
$5.12¢2 559
1
#92170
92170-1118
CLAMP
$6.82¢3 410
1
#92171A
92171-1870
CLAMP,12MM
$6.21¢3 105
1
#92171B
92171-1890
CLAMP
$9.80¢4 899
1
#92171
92171-0316
CLAMP,BRAKE HOSE
$3.51¢1 754
1
#92172
92172-0280
SCREW,TAPPING,5X16
$0.75¢374
1
#92173A
92173-0922
CLAMP,62MM
$8.30¢4 151
1
#92173
92173-0868
CLAMP,HOLDER CLIP
$2.53¢1 265
1
#92192C
92192-2466
TUBE,ASWV FITTING
$11.93¢5 963
1
#92192A
92192-2464
TUBE,FITTING A/C
$24.08¢12 041
1
#92192B
92192-2465
TUBE,FITTING-FITTING
$13.56¢6 779
1
#92192D
92192-2493
TUBE
$10.51¢5 256
1
#92192E
92192-2500
TUBE,ASWV-REED VALVE
$10.51¢5 256
1
#92192
92192-2463
TUBE,BREATHER
$18.05¢9 027
1
#92200
92200-1087
WASHER,6.5X22X1.6
$3.61¢1 805
1
#92210
92210-0474
NUT,6MM
$5.22¢2 610
1
