MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

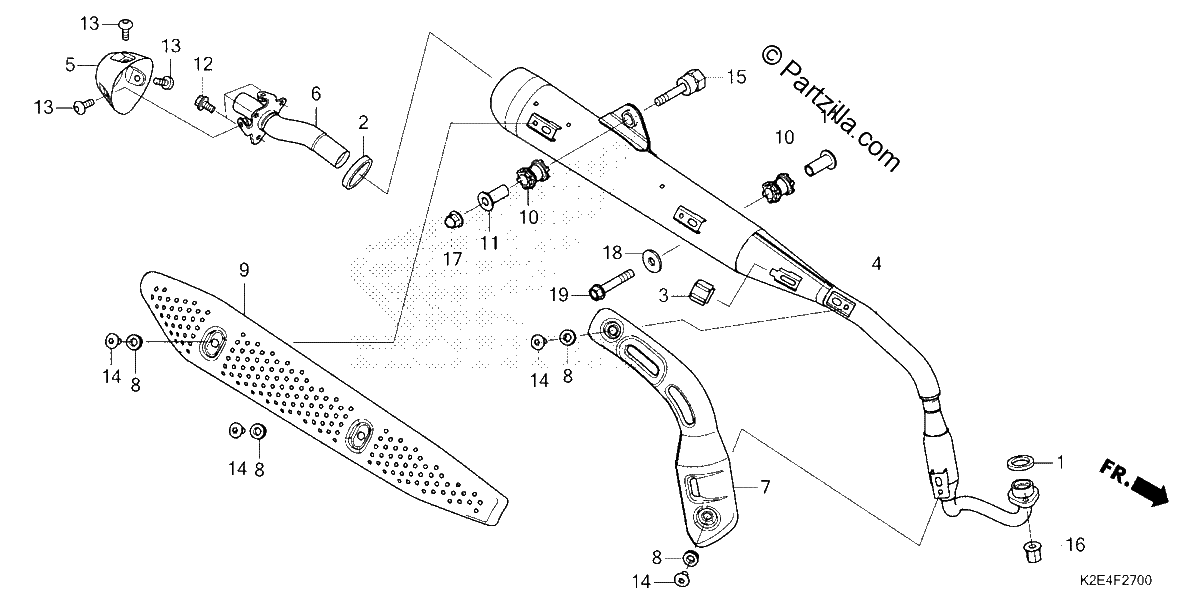

Diagrama de MUFFLER

Repuestos

#001
18291-GE2-920
GASKET, EX. PIPE
$7.22¢3 611
1
#002
18291-KR1-680
GASKET A, EX PIPE
$9.35¢4 675
1
#003
18293-MCA-A20
RUBBER, PROTECTOR GASKET
$2.43¢1 213
1
#004
18300-K2E-A00
MUFFLER, EX.
$1066.08¢533 042
1
#005
18306-K2E-A00
CAP, TAIL
$184.60¢92 299
1
#006
18317-K2E-A00
ARRESTER, SPARK
$263.61¢131 807
1
#007
18325-K2E-T00
COVER, EX. PIPE
$82.12¢41 061
1
#008
18345-MBT-610
RUBBER, PROTECTOR MOUNTING
$2.59¢1 294
1
#009
18356-K2E-T00
COVER, MUFFLER
$207.17¢103 586
1
#010
18421-K26-B00
RUBBER, MUFFLER MOUNTING
$0.70¢351
1
#011
18422-K26-900
COLLAR, MUFFLER MOUNTING
$4.86¢2 432
1
#012
96001-06010-07
BOLT, FLANGE (6X10)
$1.92¢960
1
#012
90101-KCE-000
BOLT, FLANGE (6X10)
$1.92¢960
1
#013
90106-GBB-710
SCREW, PAN (6X10)
$1.49¢747
1
#014
90113-GFP-B00
SCREW, PAN (6X12)
$3.99¢1 995
1
#015
90165-K2E-T00
BOLT, ADAPTER (8MM)
$8.35¢4 174
1
#016
90301-KWB-600
NUT, FLANGE (8MM)
$1.03¢518
1
#017
90443-KTM-970
NUT, CAP (8MM)
$0.91¢454
1
#018
94103-08700
WASHER, PLAIN (8MM)
$1.12¢558
1
#019
95701-08045-07
BOLT, FLANGE (8X45)
$2.56¢1 282
1
