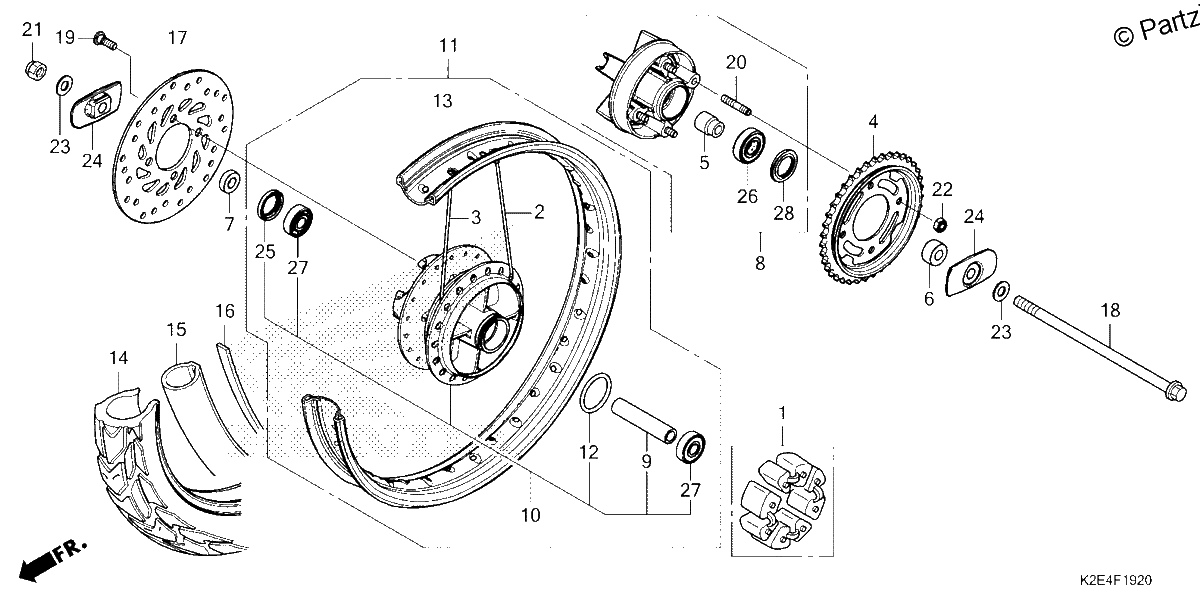

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
DAMPER SET, WHEEL
$36.31¢18 156
#002
SPOKE SET (B9X161.5) (OUTSIDE)
$4.39¢2 194
#003
SPOKE SET (B9X161.5) (INSIDE)
$4.39¢2 194
#004
SPROCKET, FINAL DRIVEN (39T)
$42.27¢21 138
#005
SLEEVE, RR. WHEEL (NOT AVAILABLE)
$19.55¢9 775
#006
COLLAR, RR. WHEEL SIDE
$9.06¢4 531
#007
COLLAR, R. RR. WHEEL SIDE
$5.64¢2 819
#008
FLANGE SUB-ASSY., FINAL DRIVEN*NH303M*(MAT AXIS GRAY METALLIC)
$149.08¢74 538
#009
COLLAR, RR. AXLE DISTANCE
$18.08¢9 038
#010
HUB SUB-ASSY., RR. *NH303M*(MAT AXIS GRAY METALLIC)
$138.07¢69 038
#011
WHEEL SUB-ASSY., RR. *NH303M*(MAT AXIS GRAY METALLIC)
$356.35¢178 175
#012
O-RING (40.5X3) (NIPPON DUST KEEPER)
$3.08¢1 538
#013
RIM, RR. WHEEL (17X1.60)
$102.54¢51 269
#014
TIRE, RR. (80/90-17 M/C 50P) (IRC)
$55.04¢27 519
#015
TUBE, TIRE (IRC)
$26.72¢13 362
#016
FLAP, TIRE (IRC)
$7.92¢3 963
#017
DISK, RR. BRAKE (SUNSTAR)
$124.14¢62 069
#017
DISK, RR. BRAKE (YUTAKA) (NOT AVAILABLE)
No Disponible
#018
AXLE, Front WHEEL (FOR Rear.)
$14.69¢7 344
#019
BOLT, BRAKE DISK (8X24)
$2.46¢1 231
#020
BOLT, STUD (8X19.5) (NOT AVAILABLE)
$1.25¢625
#021
NUT, U (12MM)
$3.75¢1 875
#022
NUT, U (8MM) (FUJI SEIMITSU)
$2.11¢1 056
#023
WASHER, RR. AXLE
$2.01¢1 006
#024
PLATE, SWINGARM SIDE
$15.55¢7 775
#025
OIL SEAL (26X37X6) (NOK)
$9.29¢4 644
#025
OIL SEAL (26X37X6) (ARAI)
$9.29¢4 644
#026
BEARING, RADIAL BALL (6203UU) (FUJIKOSHI)
$22.32¢11 163
#026
BEARING, RADIAL BALL (6203UU) (FAG)
$22.32¢11 163
#027
BEARING, RADIAL BALL (6301U L)(NTN)
$8.39¢4 194
#027
BEARING, RADIAL BALL (6301U L)(FAG)
$8.39¢4 194
#027
BEARING, RADIAL BALL (6301U L)(SKF)
$8.39¢4 194
#027
BEARING, RADIAL BALL (6301U L)(FUJIKOSHI)
$11.47¢5 738
#027
BEARING, RADIAL BALL (6301U L)(NSK)
$11.47¢5 738
#028
DUST SEAL (27X40X4.5) (NOK)
$1.27¢638
