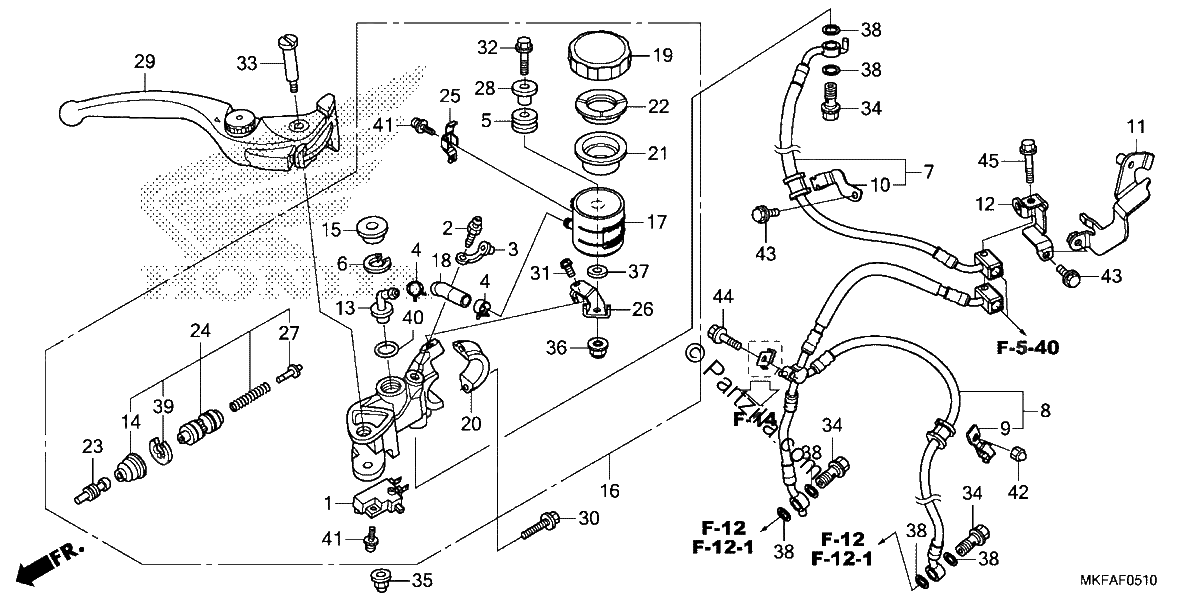

FRONT BRAKE MASTER CYLINDER 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
#002
SCREW, BLEEDER (NISSIN)
$9.63¢4 813
#003
CAP, BLEEDER
$6.13¢3 063
#004
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
#005
RUBBER, OIL CUP
$5.99¢2 994
#006
CIRCLIP, Rear MASTER CYLINDER
$4.63¢2 313
#007
HOSE A, FR. BRAKE
$82.25¢41 125
#008
HOSE D, FR. BRAKE
$191.64¢95 819
#009
CLAMP A, FR. BRAKE HOSE
$4.69¢2 344
#010
CLAMP B, FR. BRAKE HOSE
$7.25¢3 625
#011
STAY A, FR. BRAKE HOSE
$20.09¢10 044
#012
STAY B, FR. BRAKE HOSE
$10.38¢5 188
#013
CONNECTOR, MASTER CYLINDER
$10.99¢5 494
#014
BOOT
$15.29¢7 644
#015
COVER, DUST
$5.04¢2 519
#016
MASTER CYLINDER SUB-ASSY., FR.BRAKE (NISSIN)
$360.88¢180 438
#017
CUP, OIL
$15.90¢7 950
#018
HOSE, MASTER CYLINDER OIL
$9.36¢4 681
#019
CAP, OIL CUP
$21.39¢10 694
#020
HOLDER, MASTER CYLINDER
$13.79¢6 894
#021
DIAPHRAGM
$10.59¢5 294
#022
PLATE, DIAPHRAGM
$4.91¢2 456
#023
ROD, PUSH
$17.05¢8 525
#024
MASTER CYLINDER SET
$62.41¢31 206
#025
PLATE, STOP
$6.61¢3 306
#026
STAY, FR. BRAKE MASTER CYLINDER
$12.36¢6 181
#027
GUIDE, SPRING
$5.71¢2 856
#028
COLLAR (6.3X13)
$5.88¢2 938
#029
LEVER Assembly., Right HANDLE
$61.01¢30 506
#030
BOLT, FLANGE (6X22)
$2.81¢1 406
#031
BOLT, FLANGE (6X12)
$2.99¢1 494
#032
BOLT, FLANGE (6X28)
$3.36¢1 681
#033
BOLT, HANDLE LEVER
$7.05¢3 525
#034
BOLT, OIL (10X22)
$8.89¢4 444
#035
NUT, CAP (6MM)
$2.76¢1 381
#036
NUT, U (6MM)
$8.39¢4 194
#037
WASHER (6X16)
$1.70¢850
#038
WASHER, OIL BOLT
$4.85¢2 425
#039
CIRCLIP
$2.91¢1 456
#040
O-RING (14.8X2.4)
$3.30¢1 650
#041
SCREW-WASHER (4X12)
$1.72¢862
#041
SCREW-WASHER (4X12)
$1.72¢862
#042
NUT, CAP (6MM)
$1.99¢994
#043
BOLT, FLANGE (6X12)
$2.88¢1 438
#044
BOLT, FLANGE (6X18)
$2.91¢1 456
#045
BOLT, FLANGE (6X35)
$3.14¢1 569
