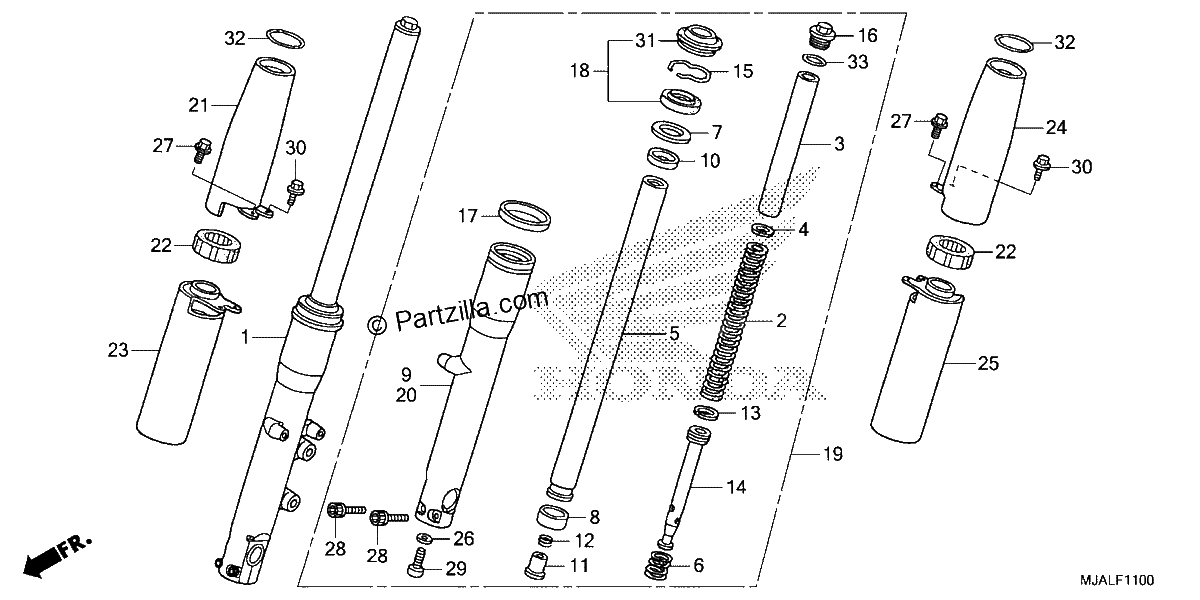

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
FORK Assembly., Right Front. (KAYABA)
$797.81¢398 906
#002
SPRING, Front FORK
$92.64¢46 319
#003
SPACER, SPRING
$13.53¢6 763
#004
WASHER
$7.40¢3 700
#005
PIPE, Front FORK
$399.13¢199 563
#006
SPRING, FR. REBOUND
$8.69¢4 344
#007
WASHER
$8.19¢4 094
#008
BUSH, SLIDER
$9.24¢4 619
#009
CASE, R. (LOWER)
$421.06¢210 531
#010
BUSH, GUIDE
$8.49¢4 244
#011
PIECE, OIL LOCK
$19.72¢9 862
#012
SPRING, OIL LOCK
$4.09¢2 044
#013
RING, PISTON
$6.35¢3 175
#014
PIPE, SEAT
$54.46¢27 231
#015
RING, SNAP
$5.13¢2 563
#016
BOLT, FR. FORK
$32.57¢16 287
#017
GUIDE, COVER
$11.65¢5 825
#018
SEAL SET, Front FORK
$20.76¢10 381
#019
FORK Assembly., L Front. (KAYABA)
$797.81¢398 906
#020
CASE, Left (LOWER)
$421.06¢210 531
#021
COVER, R. FR. FORK TOP
$130.49¢65 244
#022
MOUNT, Front FORK COVER
$12.56¢6 281
#023
COVER, Right Front FORK (LOWER)
$130.49¢65 244
#024
COVER, L Front FORK TOP
$107.73¢53 863
#025
COVER, L. FR. FORK (LOWER)
$130.49¢65 244
#026
WASHER, OIL BOLT
$3.01¢1 506
#027
BOLT, FLANGE (8X12)
$4.26¢2 131
#028
BOLT, SOCKET (8X35)
$3.65¢1 825
#029
BOLT, SOCKET (10X25)
$7.21¢3 606
#030
BOLT, FLANGE (6X12)
$2.97¢1 487
#031
DUST SEAL
$14.24¢7 119
#032
O-RING (39.5X5)
$4.01¢2 006
#033
O-RING (31.7X3.5)
$3.80¢1 900
