OIL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

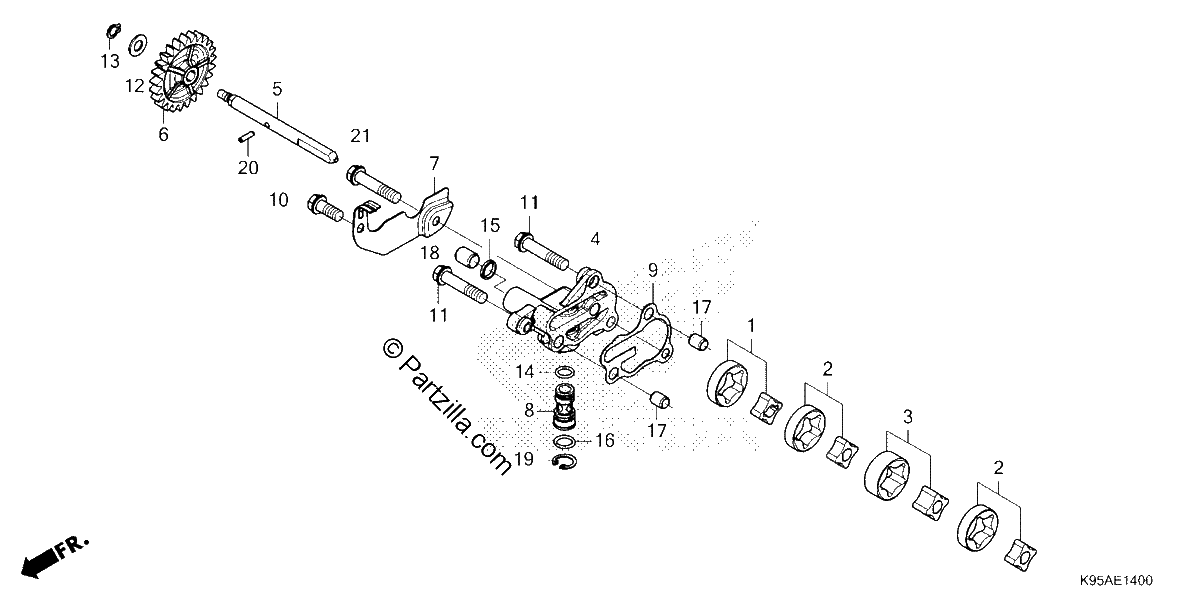

Diagrama de OIL PUMP

Repuestos

#001
15021-K95-A20
ROTOR SET, OIL PUMP
$32.90¢16 451
1
#002
15022-K95-A20
ROTOR SET, OIL PUMP
$32.90¢16 451
1
#003
15023-K95-A20
ROTOR SET, OIL PUMP
$41.31¢20 654
1
#004
15101-K95-AA0
COVER, OIL PUMP
$79.80¢39 899
1
#005
15111-K95-A20
SHAFT, OIL PUMP
$47.86¢23 931
1
#006
15130-K95-AA0
GEAR, OIL PUMP DRIVEN (25T)
$50.44¢25 219
1
#007
15202-K95-A41
PLATE, OIL PUMP GEAR GUIDE
$6.58¢3 289
1
#008
15220-MKE-AA0
VALVE Assembly., RELIEF
$46.15¢23 075
1
#009
15351-K95-A21
GASKET, OIL PUMP COVER
$5.73¢2 864
1
#010
90026-GHB-630
BOLT, FLANGE (6X14)
$2.64¢1 322
1
#011
90020-GHB-690
BOLT, FLANGE (6X28)
$2.75¢1 374
1
#012
90443-MEL-000
WASHER (6MM)
$2.83¢1 414
1
#013
90603-MKE-A00
CIRCLIP (6MM)
$2.27¢1 133
1
#014
90751-GK1-003
O-RING (8.5X1.7)
$3.21¢1 604
1
#015
91303-KK0-003
GASKET, RUBBER
$3.36¢1 679
1
#016
91305-K95-AA1
O-RING (9.8X1.9)
$3.42¢1 708
1
#016
91305-PE2-003
O-RING (9.8X1.9)
$2.89¢1 443
1
#017
94301-08100
PIN, DOWEL (8X10)
$2.66¢1 328
1
#018
94301-10120
PIN, DOWEL (10X12)
$2.70¢1 351
1
#019
94520-14000
CIRCLIP, INNER (14MM)
$1.09¢546
1
#020
96220-30118
ROLLER (3X11.8)
$3.99¢1 995
1
#021
90026-GHB-690
BOLT, FLANGE (6X28)
$2.59¢1 294
1
