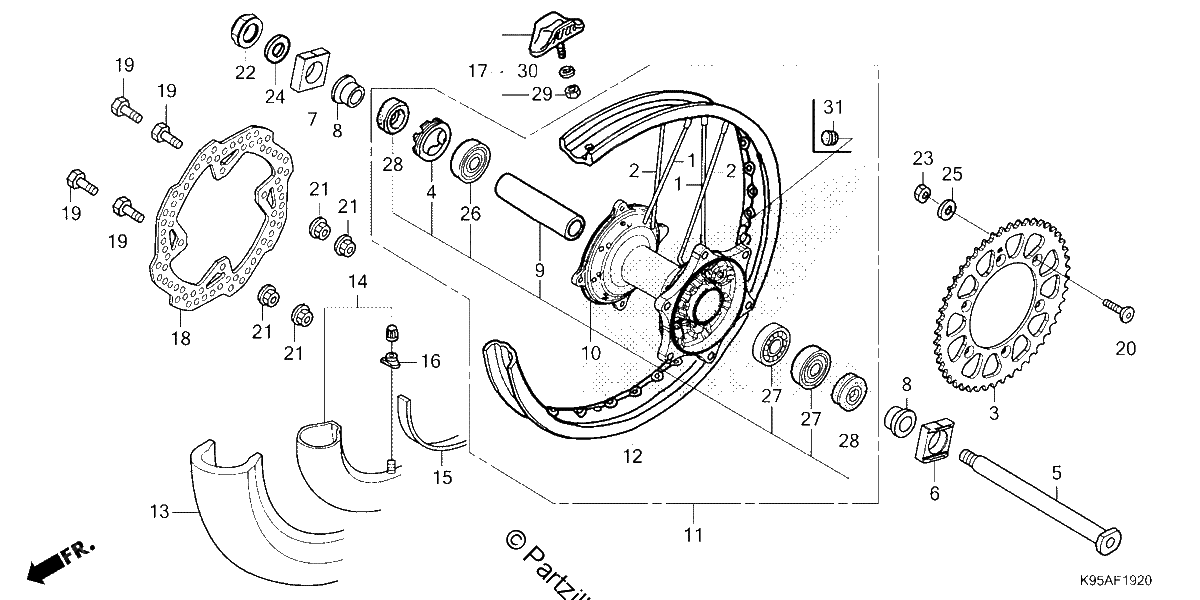

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SPOKE SET, RR.
$4.76¢2 381
#002
SPOKE SET, RR.
$4.76¢2 381
#003
SPROCKET, FINAL DRIVEN (49T)
$176.06¢88 031
#003
SPROCKET, FINAL DRIVEN (50T)
$175.67¢87 837
#003
SPROCKET, FINAL DRIVEN (51T)
$184.69¢92 344
#004
RETAINER, RR. WHEEL BEARING
$22.38¢11 188
#005
AXLE, RR. WHEEL
$54.99¢27 494
#006
COLLAR, L. RR. AXLE
$24.81¢12 406
#007
COLLAR, R. RR. AXLE
$22.38¢11 188
#008
COLLAR, RR. WHEEL SIDE
$31.72¢15 862
#009
COLLAR, RR. WHEEL DISTANCE
$31.68¢15 838
#010
HUB SUB-ASSY., RR.
$549.77¢274 888
#011
WHEEL SUB-Assembly., Rear.
$1039.90¢519 950
#012
RIM, Rear WHEEL (19X1.85)
$373.34¢186 669
#013
TIRE, RR. (100/90-19 57M NHS) (PIRELLI)
$174.61¢87 306
#014
TUBE, TIRE (110/90-19) (PIRELLI)
$55.10¢27 550
#015
FLAP, TIRE (PIRELLI) (NOT AVAILABLE)
No Disponible
#016
CAP, VALVE
$12.15¢6 075
#017
STOPPER, BEAD (1.85)
$37.48¢18 738
#018
DISK, RR. BRAKE
$308.38¢154 188
#019
BOLT, DISK (6X19)
$6.05¢3 025
#020
SCREW, FLAT SOCKET
$4.97¢2 488
#021
NUT, U (6MM) (FUSE RASHI)
$4.94¢2 469
#022
NUT, U (22MM)
$10.48¢5 238
#023
NUT, U (8MM)
$3.65¢1 825
#024
WASHER (22X35X2)
$3.65¢1 825
#025
WASHER (8MM)
$3.24¢1 619
#026
BEARING, RADIAL BALL (69052RS)
$21.39¢10 694
#027
BEARING, RADIAL BALL (6905RS)
$20.15¢10 075
#028
DUST SEAL (32X43X7)
$5.99¢2 994
#029
NUT, HEX. (8MM)
$1.68¢838
#030
WASHER, SPRING (8MM)
$1.21¢606
