CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

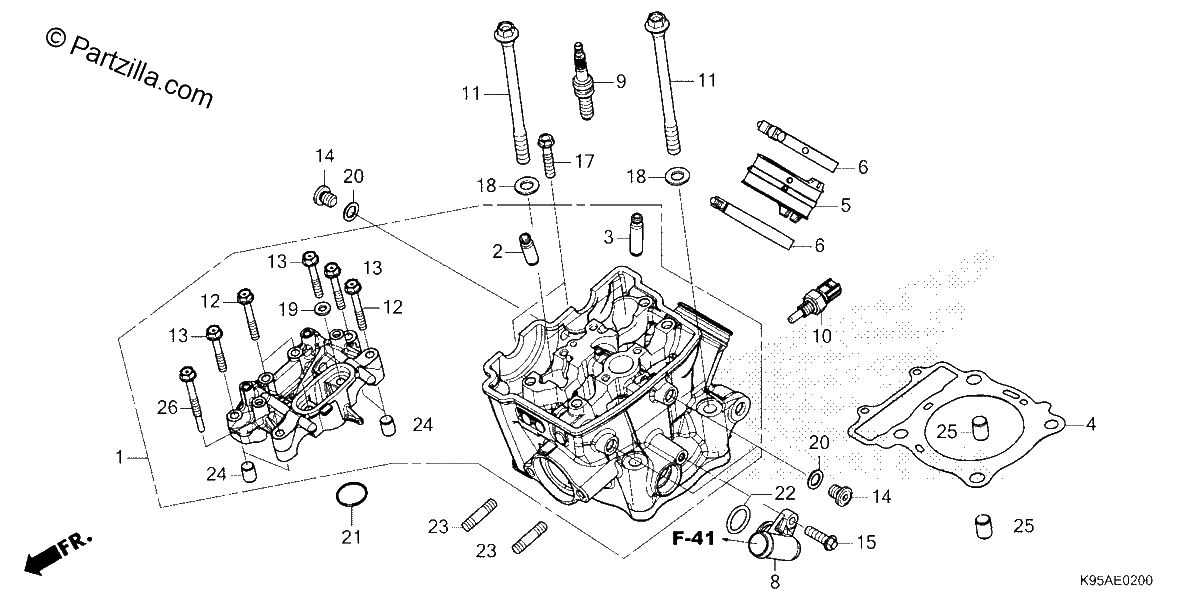

Diagrama de CYLINDER HEAD

Repuestos

#001
12010-K95-AA0
CYLINDER HEAD Assembly.
$588.63¢294 314
1
#002
12204-K95-P20
GUIDE, VALVE (OVER SIZE)
$17.95¢8 976
1
#003
12204-KRN-P10
GUIDE, VALVE (OVER SIZE)
$14.24¢7 119
1
#004
12251-K95-A21
GASKET, CYLINDER HEAD
$31.50¢15 749
1
#005
16211-K95-AA0
INSULATOR, THROTTLE BODY
$16.81¢8 407
1
#006
16217-MKE-AF0
BAND, INSULATOR
$12.32¢6 158
1
#008
19523-KRN-730
JOINT, WATER
$17.87¢8 936
1
#009
31909-MEN-A31
SPARK PLUG (SILMAR9A9S) (NGK)
$19.65¢9 827
1
#010
37870-MGS-D31
SENSOR ASSY., WATER TEMPERATURE
$53.60¢26 801
1
#011
90001-K95-A20
BOLT, FLANGE (10X135)
$8.72¢4 358
1
#012
90004-K95-AA0
BOLT, FLANGE (6X45)
$3.62¢1 811
1
#013
90003-K95-A20
BOLT, FLANGE (6X40)
$3.47¢1 737
1
#014
90042-K95-AA0
BOLT, SPECIAL (10MM)
$4.46¢2 231
1
#015
90020-GHB-660
BOLT, FLANGE (6X20)
$2.75¢1 374
1
#017
90020-GHB-690
BOLT, FLANGE (6X28)
$2.75¢1 374
1
#018
90453-MKE-A00
WASHER, PLAIN (10MM)
$3.36¢1 679
1
#019
90463-ML7-000
WASHER, SEALING (6.5MM)
$3.36¢1 679
1
#020
90443-MB0-000
WASHER, SEALING (10.2MM)
$3.36¢1 679
1
#021
12395-MKR-D10
O-RING, PLUG HOLE
$3.82¢1 909
1
#022
91312-KE7-003
O-RING (19X3) (NOK)
$3.09¢1 547
1
#023
90012-KM9-000
BOLT, STUD (8X34)
$3.54¢1 771
1
#024
94301-08100
PIN, DOWEL (8X10)
$2.66¢1 328
1
#025
94301-12160
PIN A, DOWEL (12X16)
$2.69¢1 346
1
#026
90007-K95-AA0
BOLT, SPECIAL FLANGE (6X45)
$6.22¢3 111
1
